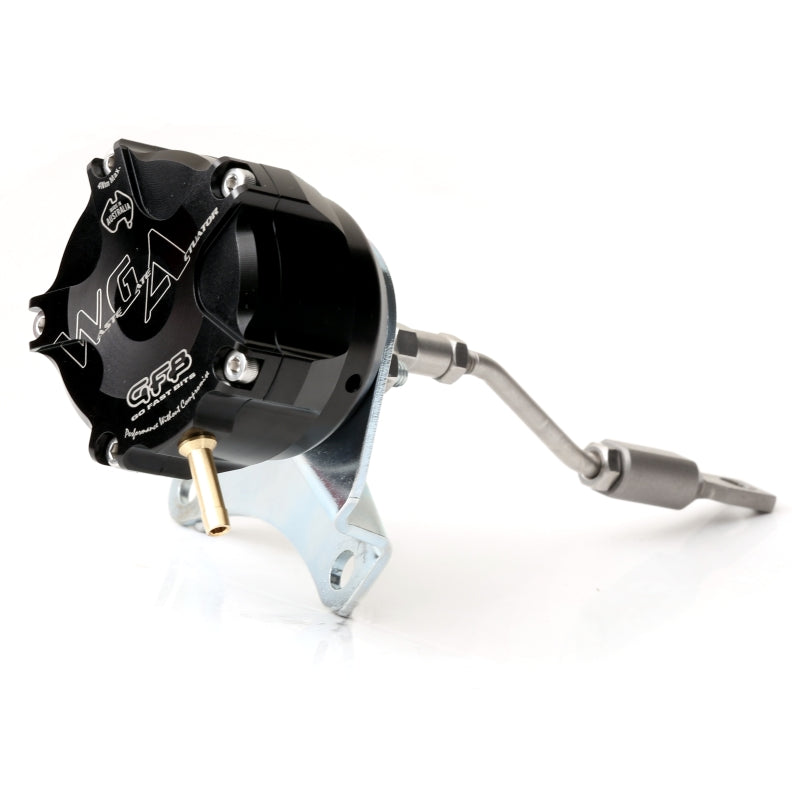

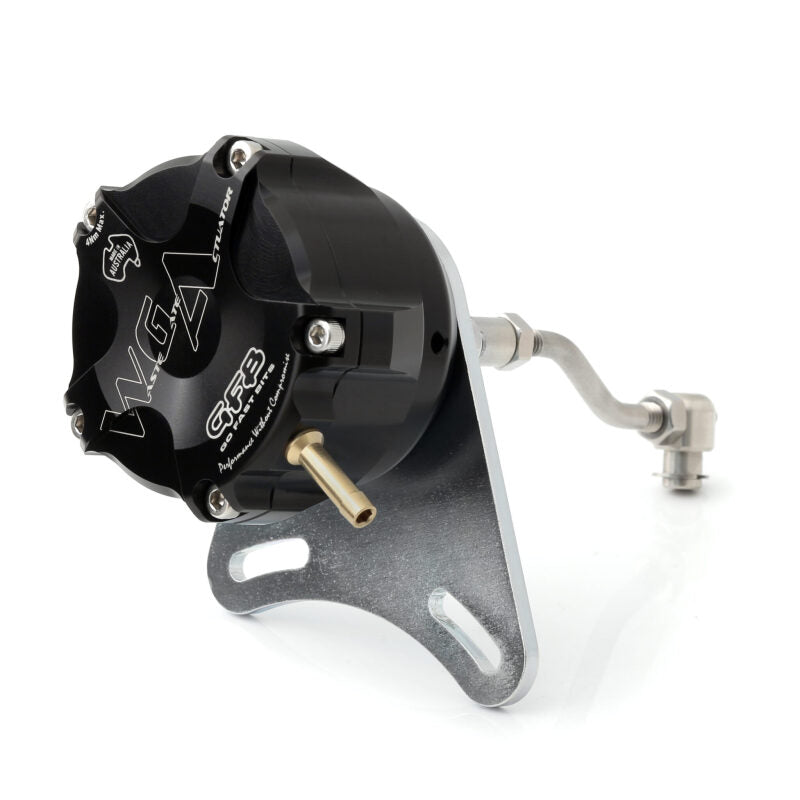

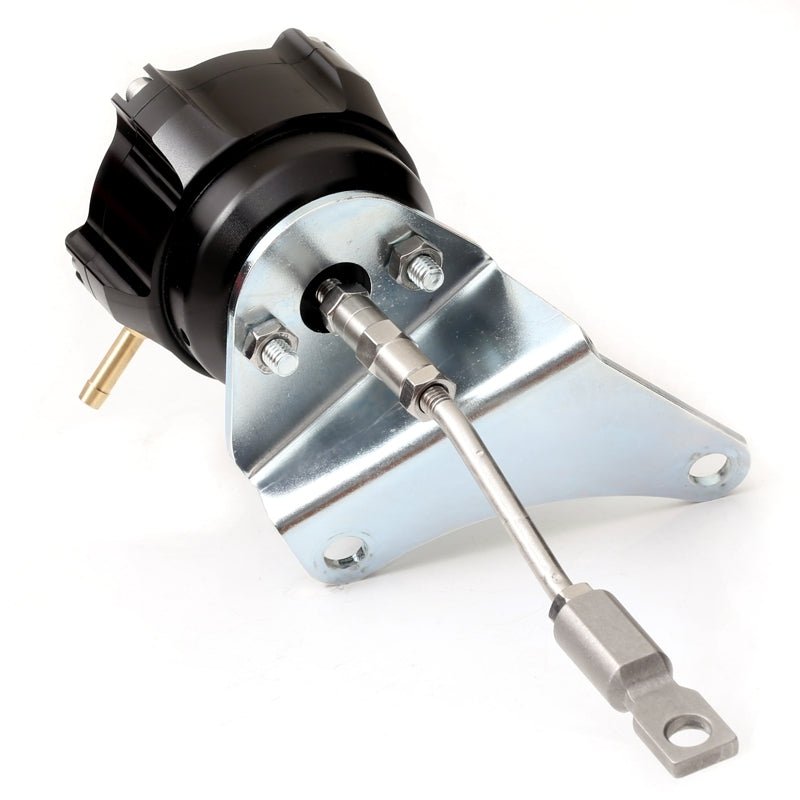

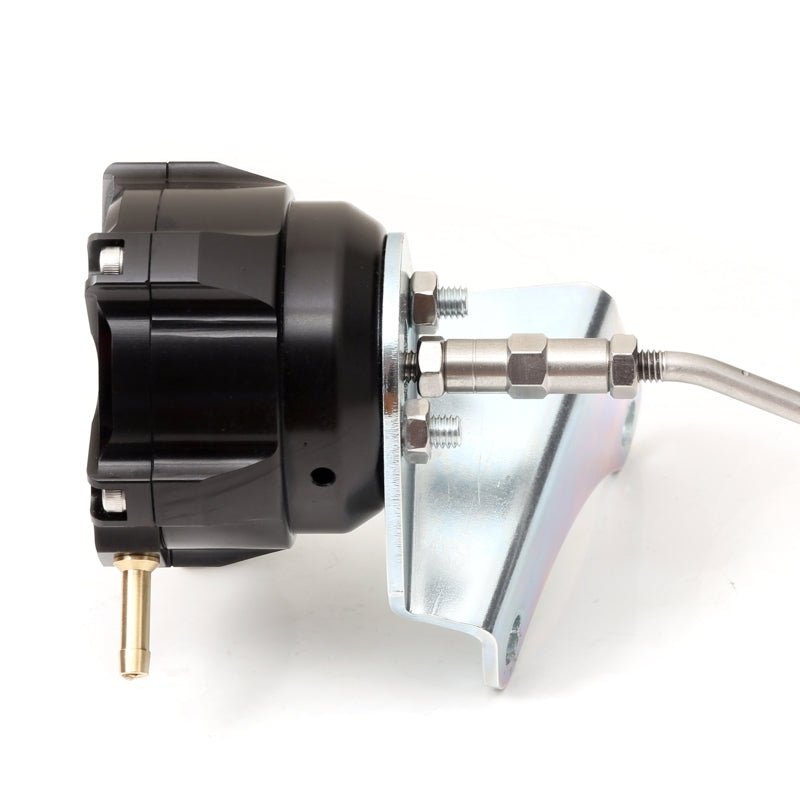

Go Fast Bits [99-22 WRX STI] WGA Internal Wastegate Actuator - Adjustable

Massive Performance, Compact Size. • Industry-first diaphragm design - the WGA’s Silicone/Nomex diaphragm uses a new bead retention design that achieves the largest effective area with the smallest possible outside diameter. This keeps the overall size of the WGA down whilst giving it more control authority over the wastegate flap, resulting in better boost control. It’s like telling your turbo what to do instead of pleading with it! • Longest stroke – with 18mm of rod travel, the WGA is suitable for controlling the largest of internal wastegates, or the extra travel can be used to further increase boost pressure without having to change springs. • Unique pivoting rod guide – machined from PEEK (an extremely high-performance engineering polymer), the encapsulated spherical rod guide takes up significantly less height in the actuator body than other designs, whilst offering low friction and superior wear resistance. • No unnecessary bulk – sounds obvious, but attention to detail in the design means the WGA is the shortest actuator on the market. More Adjustable, More Easily. Setting the base spring pressure correctly for your application can have significant performance benefits, so we made sure the WGA offers the best adjustability on the market! We supply 3 stainless steel springs that can be used in any combination ranging from 5psi to 22psi, but that’s only the beginning. Whilst other brands may offer more spring options (sold separately), changing springs to fine-tune boost pressure is time consuming and quite frankly, a pain. That’s why we added another industry first - turnbuckle adjustment. The long stroke of the WGA means more adjustment range for the spring pre-load, so you can fine-tune your base boost pressure in a matter of minutes without swapping springs or removing the actuator. Available in bolt-on or universal kits - Check the GFB website for details. Bolt on high performance internal wastegate actuator. The WGA replaces the factory turbo’s actuator, offering a larger diaphragm and adjustable base spring pressures ranging from 5-22psi to get the most out of your turbo. Subaru: WRX STi MY99-22

• WGA Benefits (compared to a factory-fitted actuator): • Faster spool up • Less boost taper at high RPM • More stable boost control • Customizable spring rates • Supports higher boost pressure

The Go Fast Bits WGA internal wastegate actuator is a bolt-on, high-performance replacement for the factory turbocharger actuator on Subaru WRX STI models from 1999 through 2022. Part number GFB7305 uses an advanced diaphragm design, extended rod travel, and adjustable spring preload to provide greater control over the turbocharger wastegate.

• Feature: Adjustable base spring pressure from 5 to 22 psi using three interchangeable stainless steel springs.
• Feature: Turnbuckle adjustment allows fine-tuning without removing the actuator or changing springs.

Designed for demanding turbocharged applications, the GFB WGA uses a silicone and Nomex diaphragm with a high effective area in a compact housing. This design helps the actuator apply greater control authority over the wastegate flap while maintaining a short overall package. The 18 mm rod travel is suitable for large internal wastegates and can provide additional adjustment range for increasing boost pressure without immediately requiring a different spring combination.

A pivoting rod guide machined from PEEK reduces friction and offers strong wear resistance while allowing the actuator to remain compact. The adjustable turnbuckle system makes it easier to set base boost pressure for a specific turbocharger and engine combination, helping support faster spool-up, improved high-rpm boost retention, more stable boost control, and higher achievable boost pressure compared with many factory actuators. Proper installation and calibration are required, and an ECU tune is required for safe operation. Verify turbocharger and vehicle compatibility before installation. This product is not emissions compliant for sale or use on pollution-controlled vehicles where prohibited.

Features:

• Compact high-performance internal wastegate actuator designed as a bolt-on replacement for the factory unit
• Silicone and Nomex diaphragm provides a large effective area for improved wastegate control
• 18 mm rod travel supports large internal wastegates and increased adjustment range
• Three stainless steel springs can be combined to provide base pressure settings from 5 to 22 psi
• Turnbuckle preload adjustment enables quick boost-pressure tuning without removing the actuator
• PEEK pivoting rod guide provides low friction and wear resistance in a compact design
• Supports faster spool-up, reduced high-rpm boost taper, more stable boost control, and higher boost capability
• ECU tuning is required after installation

Air Freight Prohibited: false
Not Carb Approved: true
Carb Acknowledgement Required: true
Ltl Freight Required: false
Prop 65: Y
Part Type: automotive
Epa: N/A
Regular Stock: t
Units Per Sku: 1
Fitment:
Subaru Impreza WRX STI 2004
Subaru Impreza WRX STI 2005
Subaru Impreza WRX STI 2006
Subaru Impreza WRX STI 2007
Subaru Impreza WRX STI 2008
Subaru Impreza WRX STI 2009
Subaru Impreza WRX STI 2010
Subaru Impreza WRX STI 2011
Subaru Impreza WRX STI 2012
Subaru Impreza WRX STI 2013
Subaru Impreza WRX STI 2014
Subaru WRX STI Base 2015
Subaru WRX STI Base 2016
Subaru WRX STI Base 2017
Subaru WRX STI Base 2018
Subaru WRX STI Base 2019
Subaru WRX STI Base 2020
Subaru WRX STI Base 2021
Subaru WRX STI Launch Edition 2015
Subaru WRX STI Limited 2015
Subaru WRX STI Limited 2016
Subaru WRX STI Limited 2017
Subaru WRX STI Limited 2018
Subaru WRX STI Limited 2019
Subaru WRX STI Limited 2020
Subaru WRX STI Limited 2021
Subaru WRX STI S209 2019
Subaru WRX STI Series.HyperBlue 2016
Subaru WRX STI Type RA 2018
