TDMI "EL" Series - REAR - Big Brake Kit

TDMi US

TDMi US Be the first one to review

TDMI "EL" Series - REAR - Big Brake Kit

Fits: 22-26 WRX

Color

Red / Black Lettering Red / White Lettering Yellow Blue / White Lettering (Pre Order) Custom

$1,58000

Earn $31.60 In JDMuscle Rewards!

Ships When Available-Lead Time Applies ⓘ

Financing available starting $49.37 /month and as low as 0% APR.

Auto Parts Store of the Year 2026

TDMi US TDMI "EL" Series - REAR - Big Brake Kit

Fits: 22-26 WRX

Be the first one to review

Estimated Shipping Widget will be displayed here!

Talk to an Enthusiast

Verify Fitment & Product Recommendations

M-F 8:30AM - 5:00PM

(866) 833-3536 Email

Fitment

2022-2026 Subaru | WRX

Description

UPON ORDERING A CUSTOM COLOR SET WE WILL REACH OUT TO YOUR EMAIL ADDRESS USED IN THE ORDER TO COORDINATE YOUR COLOR CHOICE!!!

BLUE WITH WHITE LETTERING ARE CURRENTLY ON PRE ORDER!!! WE ARE EXPECTING THEM TO BE READY BY END OF SEPTEMBER!!!

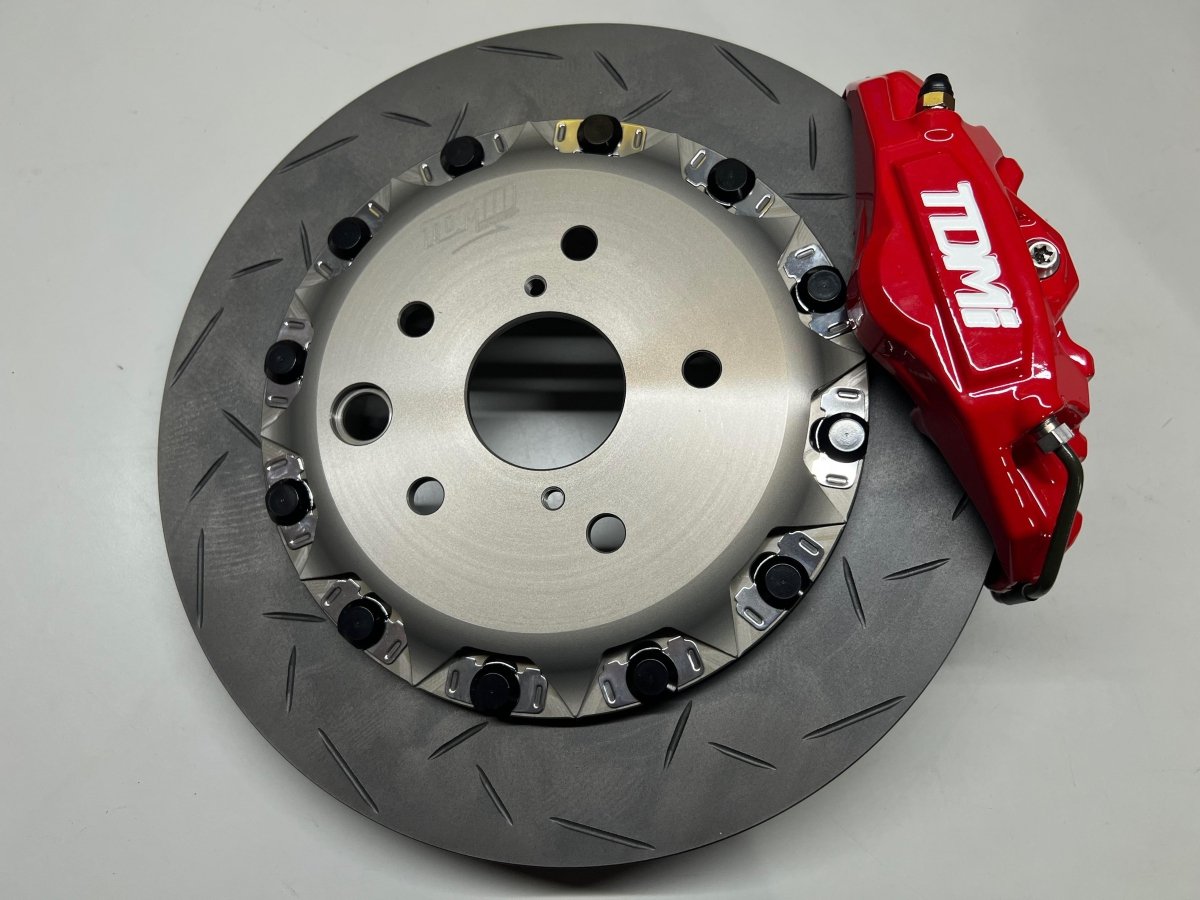

TDMimports "EL" Series 2 Piston Big Brake kits are designed for high performance street and track usage. All TDMimports big brake kits are designed to directly bolt on to stock spindles using our modular bracket system for quality fitment. FOR NON CVT WRX APPLICATION In order to have a reliable brake system, TDMimports calipers are built using a very high standard in material choice. TDMimports Cast Monoblock calipers are made of cast aluminum to reduce unsprung weight and to increase rigidity and strength using our monoblock design. To meet above average standards when producing reliable brake discs, TDMimports selected better quality FC-25 steel mixture with high cast carbon. This process increases our maximum capable temperature to 900 Celsius. This provides a higher level of stress and temperature to be achieved without excessive material expansion or distortion. In current markets, most rotors are made of a lower grade steel, for instance FC-20 and FC-22 have a heat expansion by as much as 1.2-1.5mm when reaching temperatures of 500 Celsius. However, TDMimports’ rotors will only expand by around 0.45 mm in comparison. For the Alloy Hat, TDMimports selected 7075-T6, forged and hard anodized in a champagne color.

EL Series Brake Pad Diagrams

TDMimports Big Brake kit includes:

All kits receive “Street Pads” as a standard option.

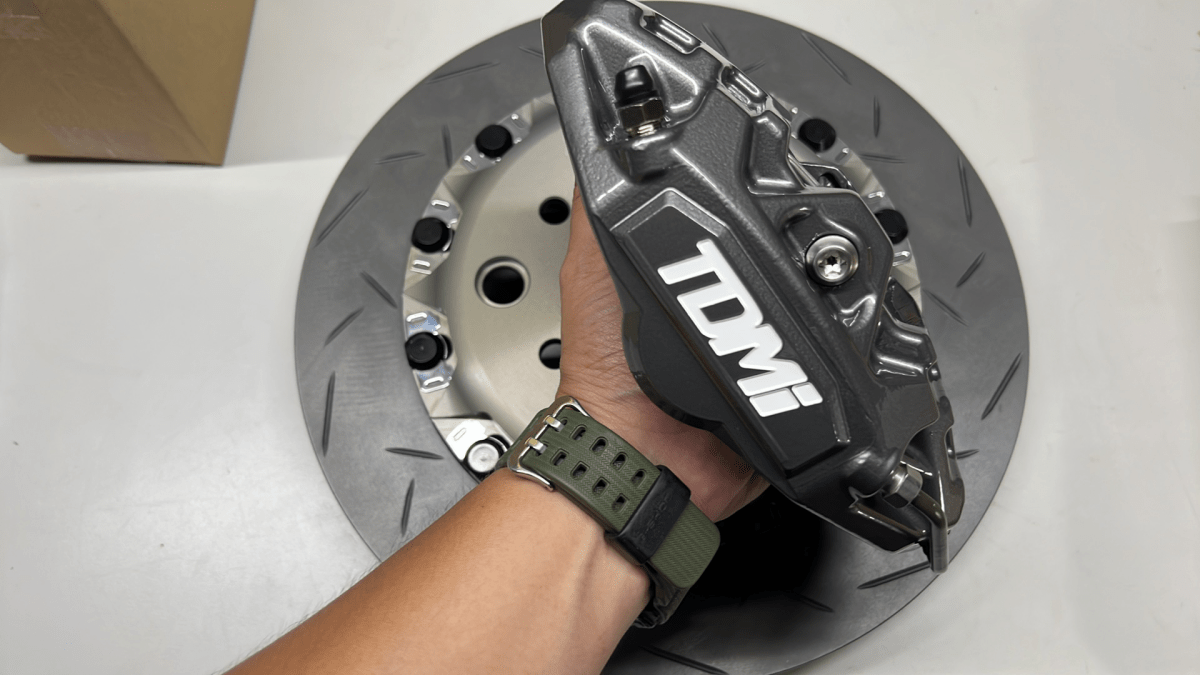

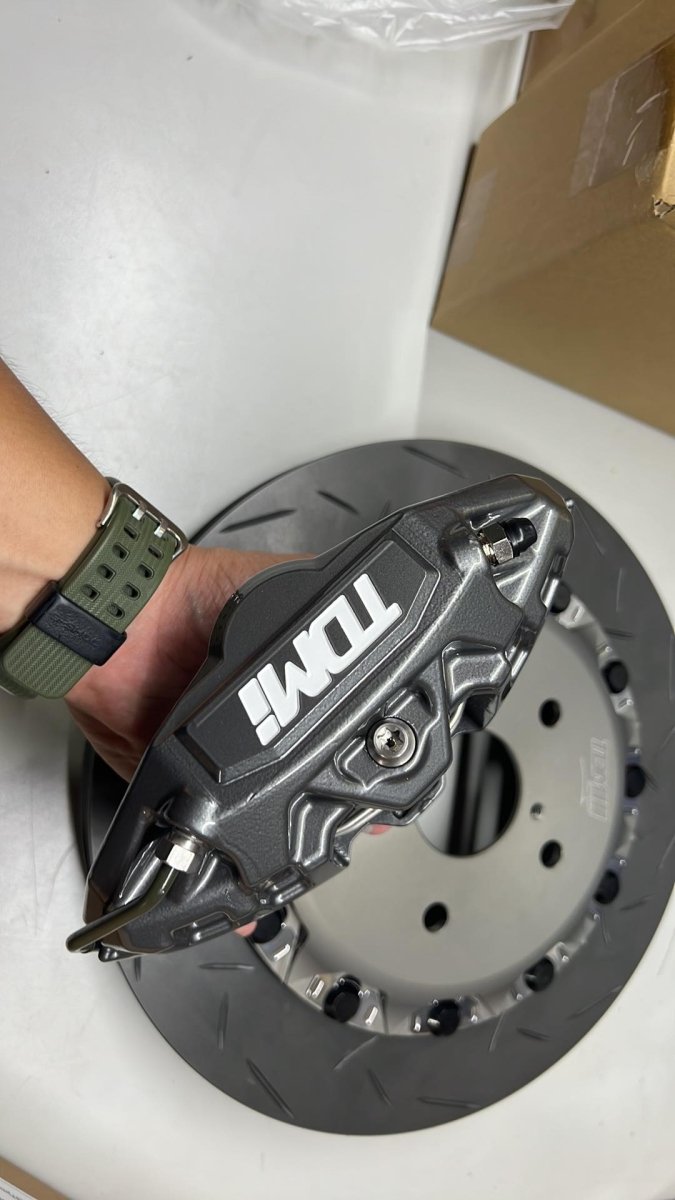

A pair of cast monoblock caliper bodies, 2 piston

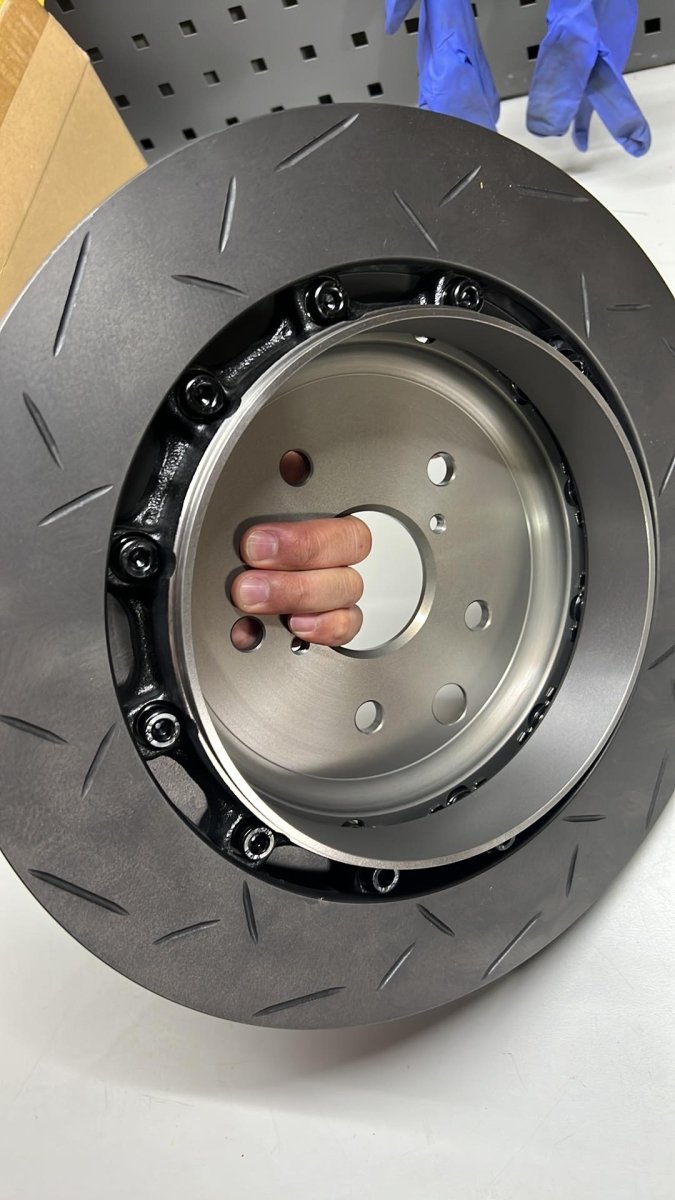

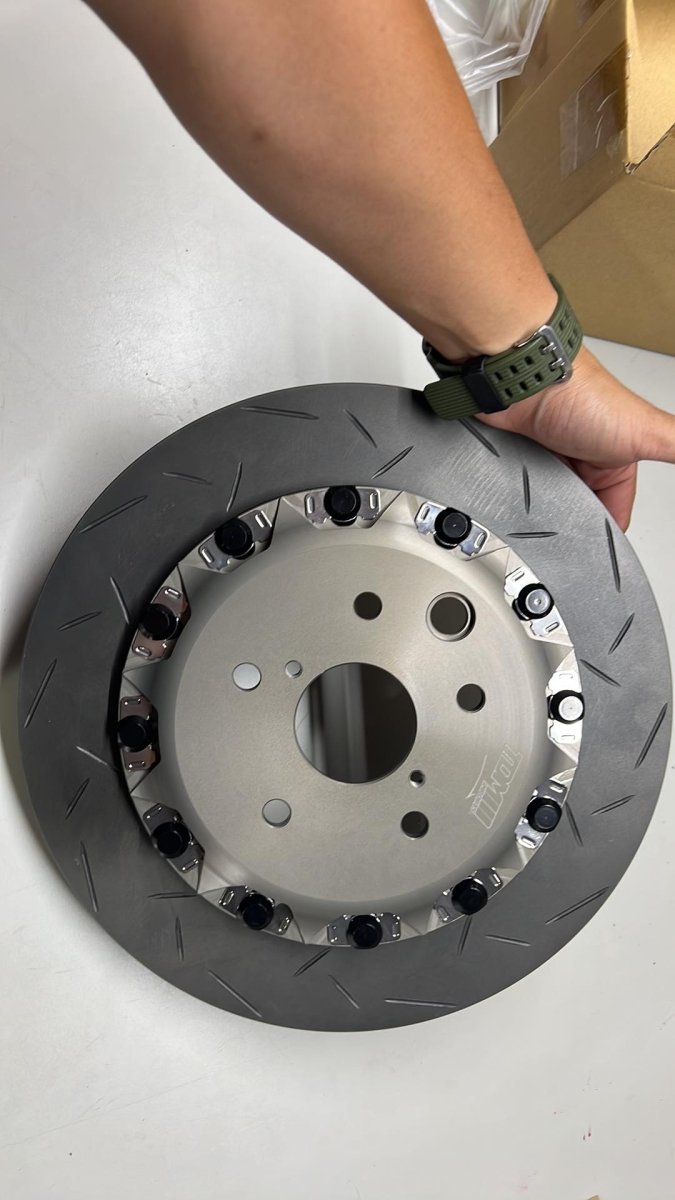

A pair of 2-piece floating rotors 330x28
A pair of stainless brake lines
Two pairs (4 pads total) of our street brake pads with built in shims
2 stainless brake line banjo bolts
4 copper brake line washers
4 brake pad pins
4 brake pad insert pins
2 brake pad stopping shims

TDMI Rear Weight 22lbs per wheel *VB 17" Base Wheels require minimal of 5mm spacers for clearance.
