Engine Fuel Rails
Fits: GM LS9/LSA
Talk to an Enthusiast
Verify Fitment & Product Recommendations
M-F 9:00AM - 6:00PM
Pick Up Available at
Pay over time · Est. $13.36/payment ⓘ
Illustrative estimate only, not a financing quote or guaranteed offer. Actual payments, frequency and terms vary by provider and eligibility. Taxes, shipping and add-ons are excluded. View all options
Pay over time · Est. $13.36/payment ⓘ
Illustrative estimate only, not a financing quote or guaranteed offer. Actual payments, frequency and terms vary by provider and eligibility. Taxes, shipping and add-ons are excluded. View all options
Fitment
Fitment
Description
Description
The Radium Engineering Fuel Rail Kit (part 20-0362) is a pair of engine fuel rails for vehicles that use the General Motors LS9/LSA V8 engines, including the 2009-2013 Chevrolet Corvette ZR1, the 2012-2015 Chevrolet Camaro ZL1 and the 2009-2015 Cadillac CTS-V. The rails are CNC machined from 6061 aluminum, black anodized and laser etched, and the kit's polished stainless steel brackets attach to the factory fuel rail mounting points with no vehicle modifications required.
Features
- CNC machined from 6061 aluminum, black anodized and laser etched for a high quality surface finish
- Each fuel rail features six 8AN ORB threaded ports (12 total) that can be used for optional adapters
- Polished stainless steel brackets attach to the factory fuel rail mounting points; no vehicle modifications are required
- Injector bores are 14mm ID, like the OEM fuel rails, and are compatible with factory fuel injectors and any aftermarket injector designed for fitment with the OEM fuel rail
- Provisions for the factory injector clips
- Compatible with all fuel types including popular alcohol mixtures such as E85
- Radium advises mocking the fuel rails up on the engine before purchasing adapter fittings and fuel delivery accessories, to check clearance of surrounding engine components that may interfere with accessing some of the fuel rail ports
Specifications
- Brand: Radium Engineering
- Part number: 20-0362
- Product: Fuel rail kit (pair of fuel rails)
- Material: 6061 aluminum, CNC machined
- Finish: Black anodized, laser etched
- Ports: Six 8AN ORB threaded ports per rail (12 total)
- Injector bores: 14mm ID
- Fuel compatibility: All fuel types, including E85
- Fitment: GM LS9/LSA V8 engines (vehicles listed in the fitment note below)

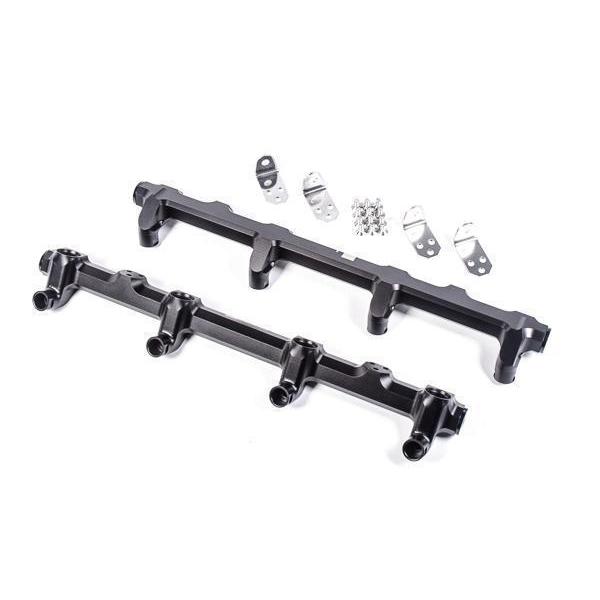

What's in the Box
- Black Anodized Laser Etched Aluminum Fuel Rails (x2)
- Fuel Rail End Fittings, 8AN ORB Plugs (x4)
- Stainless Steel Mounting Feet (x4)
- Stainless Steel Hardware (x12)
Installation
- The kit features polished stainless steel brackets that attach to the factory fuel rail mounting points, and no vehicle modifications are required
- Radium advises mocking the rails up on the engine before adapter fittings and fuel delivery accessories are purchased, to check clearance around the fuel rail ports
Questions & Answers
Q: Does this fuel rail kit fit my car?
A: This kit (part 20-0362) is for vehicles that use the GM LS9/LSA V8 engines: the 2009-2013 Chevrolet Corvette ZR1, the 2012-2015 Chevrolet Camaro ZL1, the 2009-2015 Cadillac CTS-V and the HSV and Equus applications Radium lists for this kit. Confirm your engine is an LS9 or LSA before ordering.
Q: What is included in the box?
A: The kit includes two black anodized laser etched aluminum fuel rails, four 8AN ORB plug end fittings, four stainless steel mounting feet and twelve pieces of stainless steel hardware.
Q: Will my factory injectors fit these rails?
A: Yes. Like the OEM fuel rails, the injector bores are 14mm ID and are compatible with factory fuel injectors, as well as any aftermarket injector designed for fitment with the OEM fuel rail, and the rails have provisions for the factory injector clips.
Q: Can I run E85 with these fuel rails?
A: Yes. Radium states this kit is compatible with all fuel types, including popular alcohol mixtures such as E85.
Q: Do I need to modify my vehicle to install this kit?
A: No. The kit's polished stainless steel brackets attach to the factory fuel rail mounting points and Radium states no vehicle modifications are required; Radium does advise mocking the rails up first to check port clearance before buying adapter fittings.
