Radium Engineering GM LS V8 Engines Catch Can Kit

This installation kit was designed for most GM engines including LS1, LS2, LS3, LS6, LS7, L76, L99. This kit is not compatible with the following GM engines: LS4, LS9, LSA. Depending on which vehicle the engine came from, there may be minor modifications required to the plastic cover. Before ordering, check the clearance for the particular engine as many aftermarket accessories and superchargers may create an interference.

About Radium Catch Cans
An oil catch can is essential on a vehicle to protect the engine from elevated levels of crankcase blow-by accumulated from normal wear and tear. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance. Read about all the benefits and functionality of the Radium Engineering's popular catch cans here:

Features:

-Effectively raises the octane and increased engine performance from cleaner inlet air
-Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
-Excessive oil collection can be an indicator of a damaged engine.
-Lowers hydrocarbon emissions
-Capacity: 6 fluid ounces
-Height (without fittings): 5 inches
-Outside Diameter: 2.45 inches

GM LS CATCH CAN KIT
The Radium catch can kit for GM LS-based V8 engine includes everything needed for a complete installation. The catch can is plumbed in-line with the PCV tube and draws out oil and water condensation from the PCV gasses that would otherwise be drawn into the intake manifold. Furthermore, the closed system prevents unwanted oil vapors from entering into the cabin. The custom bracket mounts to the front RH side of the cylinder head for compatiblity with most LS engines. Make sure your vehicle has the necessary clearance in the catch can mounting area before ordering.

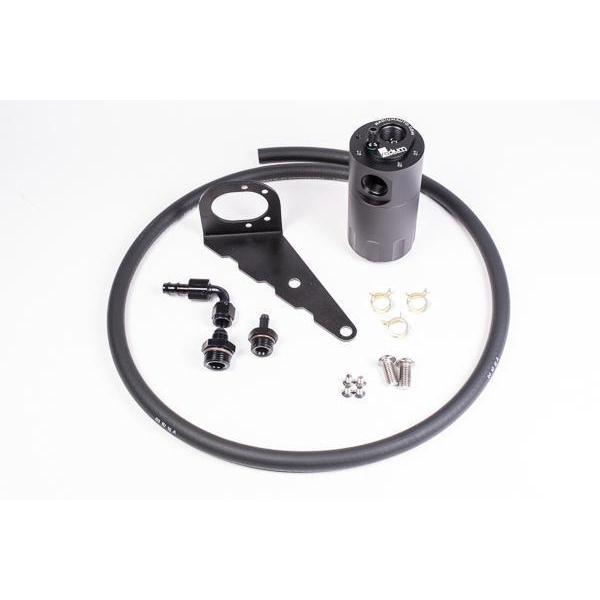

Kit Includes:
-Radium oil catch can with integrated condenser and dipstick
-Radium LS-specific mounting bracket
-Black anodized aluminum 6AN hose ends
-Anodized 6AN adapter fittings
-Stainless steel mounting hardware
-3/8" PCV rubber hose
