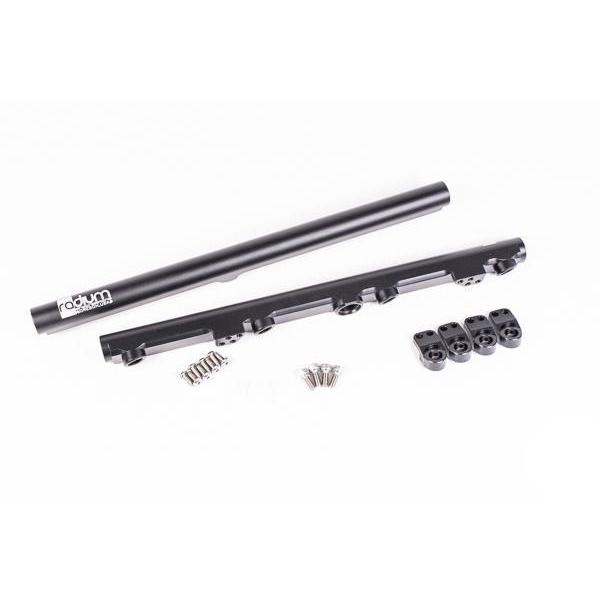

GM LS Engine Fuel Rails

Each LS fuel rail features a large 0.69" internal diameter bore to suit even the most fuel hungry engines. They are CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. All end ports are machined with 8AN ORB (3/4-16 female) threads. The lower center ports can be used for optional adapters and are also tapped with 8AN ORB (3/4-16 female) threads. For a list of 8AN ORB adapter fittings.

The kit features specifically designed billet mounts. These modular "feet" allow compatibility on the following GM LS engines by simply flipping them and reinstalling into different threaded holes on the rails: LS1, LS2, LS3, LS6, L76, L99

Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

INCLUDED:
20-0232 GM LS Fuel Rail Kit:
-Black Anodized Laser Etched Aluminum Fuel Rails (x2)
-Black Anodized Aluminum Mounting Feet (x4)
-Stainless Steel Mounting Feet Hardware (x8)
-Stainless Steel Replacement Mounting Bolts (x4)
