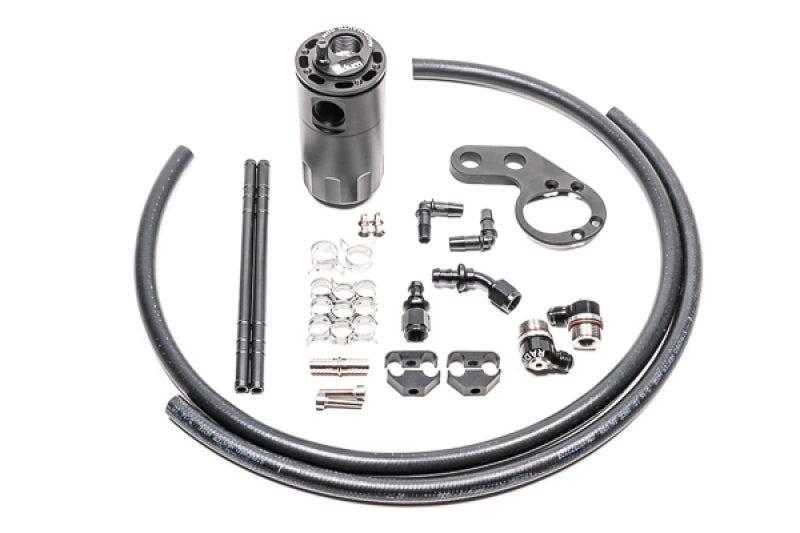

17-21 Civic Type-R Catch Can Kit CCV Fluid Lock | 20-0425-FL

• 2017-2021 Honda | Civic Type R

Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. This kit mount using factory holes and integrate perfectly with the surrounding components. These two oil catch cans (PCV side and CCV side) function completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal. Closed loop systems remove the oil and sludge from the PCV gasses before it is routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin. The dipsticks built into the catch cans allow easy inspection of accumulated fluid. No cutting, drilling or permanent modification to the vehicle is required. For more information on Radium catch cans.

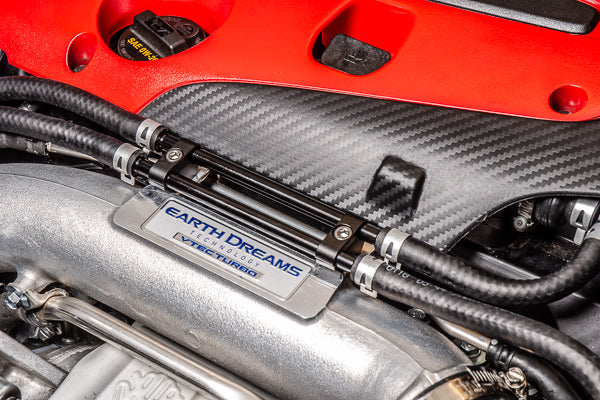

The catch can secures to the RH motor mount. If an aftermarket motor mount is used, minor modifications may be required. This catch can runs inline with the crankcase vent port. At low loads it experiences atmospheric pressure, but when the engine is at high load (WOT), this line will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.
