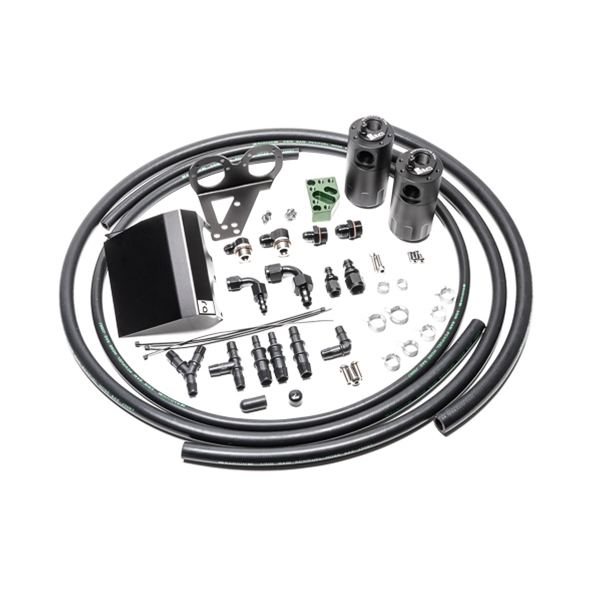

Dual Catch Can Kit 2002-2014 WRX / 2004-21 STI / 2004-2013 Forester XT

An oil catch can is essential for engine protection from elevated levels of crankcase blow-by oil that accumulate during aggressive driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance by depositing oil on the inside of the induction system, intercooler, intake manifold, etc. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.This kit contains two independent catch cans, each plumbed into different parts of the PCV system. The cans do NOT vent to atmosphere (VTA), and instead maintain the factory plumbing strategy. This closed-loop system routes clean filtered air back in through the engine promoting negative crankcase pressure for optimal performance. Furthermore, closed loop systems prevent unwanted oil vapors from being detected in the cabin.

During closed or light throttle, the PCV valve is open allowing fresh air to be pulled into and through the crankcase and into the intake manifold. The PCV line catch can will receive the most oil collection under this condition. The crankcase catch can will not see any oil collection in this circumstance. Under full throttle conditions the PCV valve is closed (you do not want turbo boost entering the crankcase) and crankcase gasses are pushed out of the engine and into the turbo air inlet pipe.This is opposite flow as the above diagram, and the time that the crankcase vent catch can will see the most oil collection.

Sold seperately, the 20-0024 kits can be used to remotely drain the catch cans without the need to unscrew the canister bodies. There is an option to put the remote drain kit on one or both catch cans. This is recommended for users that need to drain the catch can contents quickly and easily. Not compatible with the forward most catch can if using a Radium 13-0110 Cruise Control Relocation Bracket, 02-05 Subaru.

Features

• Effectively raises the octane
• Cleaner air increases engine performance
• Prevents oil sludge in the intake system
• Bolt-in installation
• Easy servicing with dipsticks
• Capacity: 8oz each
• The catch cans are not compatible with RHD vehicles
