0-90 Ohm Fuel Level Sending Unit - 10 Inch Probe

Fits: Universal

Sale price $18045 Regular price$189.95 Save $9.50
Earn $3.60 In JDMuscle Rewards!
Profile Avatar

Talk to an Enthusiast

Verify Fitment & Product Recommendations

M-F 9:00AM - 6:00PM

Ships When Available-Lead Time Applies

Radium Engineering 0-90 Ohm Fuel Level Sending Unit - 10 Inch Probe
Fits: Universal
Be the first one to review

Fitment

Please Note: Part number 20-0247-10. Float-style fuel level sending unit, 0-90 ohm, with 10 inch probe for fuel cells of about 10.6-11.5 inches external height. Standard SAE 5-bolt mounting pattern. Gauge not included. Suitable for gasoline, diesel, and alcohol based fuels including methanol, ethanol, and E85.
  • Universal

Description

The Radium Engineering 0-90 ohm fuel level sending unit is a universal float-style sender with a standard SAE 5-bolt mounting pattern, made in the USA. It fits most fuel cells including ATL, Fuel Safe, Pyrotect, Harmon, and Jaz, and is extensively used with the Radium Fuel Cell Surge Tank.

  • Product type: Float-style fuel level sending unit
  • Fitment: Universal; fits most fuel cells with the standard SAE 5-bolt mounting pattern
  • Resistance: 0-90 ohm
  • This configuration: 10 inch probe, for fuel cells of about 10.6-11.5 inches external height (8 inch probe suits 8.6-9.5 inch cells; 9 inch probe suits 9.6-10.5 inch cells)
  • FR4 conformal coated PCB, epoxy potted electrical terminals, and an anodized surface finish
  • Suitable for gasoline, diesel, and alcohol based fuels including methanol, ethanol, and E85
  • Electrical: 12VDC with the unit connected to a single electric receiver gauge that utilizes an AC resistance curve
  • When mounted properly, the gasket seal will withstand an internal tank pressure of 6 psi conforming to SAE J1810

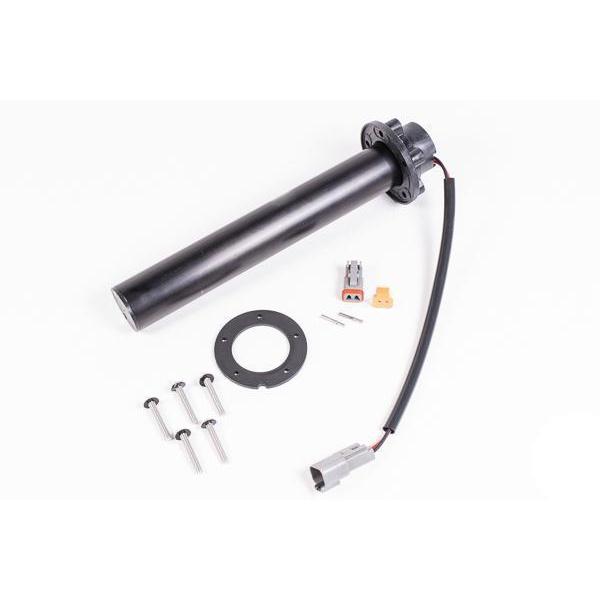

  • Includes: level sensing probe, SAE 5-bolt gasket, stainless bolts 10-32 x 1-1/4 inch (x5), nylon sealing washers (x5), Deutsch DT 2P connector, and Deutsch DT sockets (x2); gauge not included
  • Part number: 20-0247-10

Q&A

  • Does this fit my fuel cell? It uses the standard SAE 5-bolt mounting pattern and fits most fuel cells including ATL, Fuel Safe, Pyrotect, Harmon, and Jaz; this 10 inch probe version suits fuel cells of about 10.6-11.5 inches external height.
  • What is included in the box? The box contains the level sensing probe, SAE 5-bolt gasket, five stainless 10-32 bolts, five nylon sealing washers, a Deutsch DT 2P connector, and two Deutsch DT sockets. A gauge is not included.
  • Which fuels can it be used with? It is suitable for gasoline, diesel, and alcohol based fuels including methanol, ethanol, and E85.
