Single-Pass Air-to-Water Heat Exchanger - 750HP

• Universal

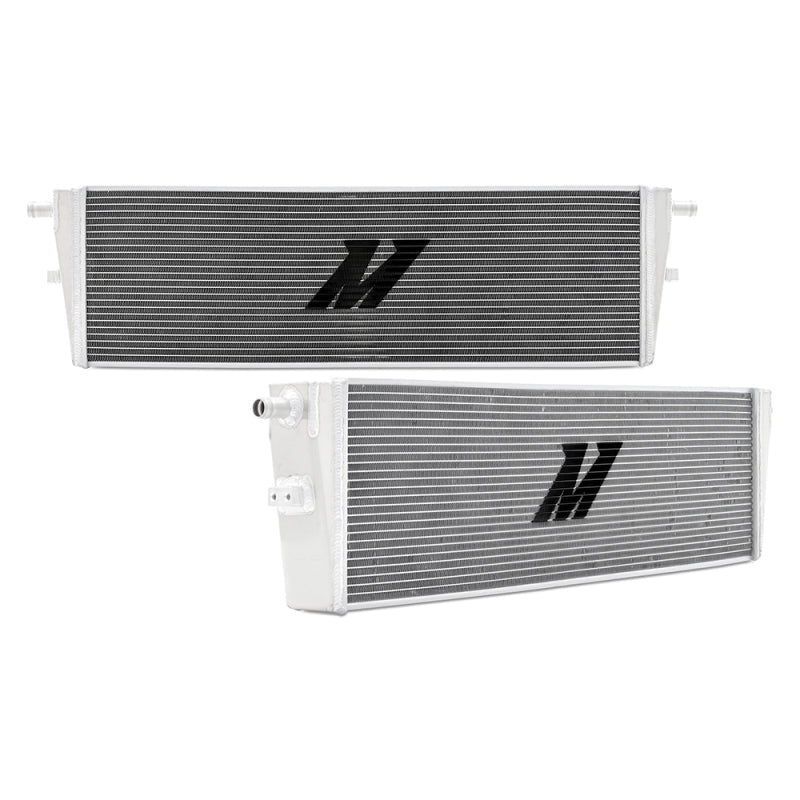

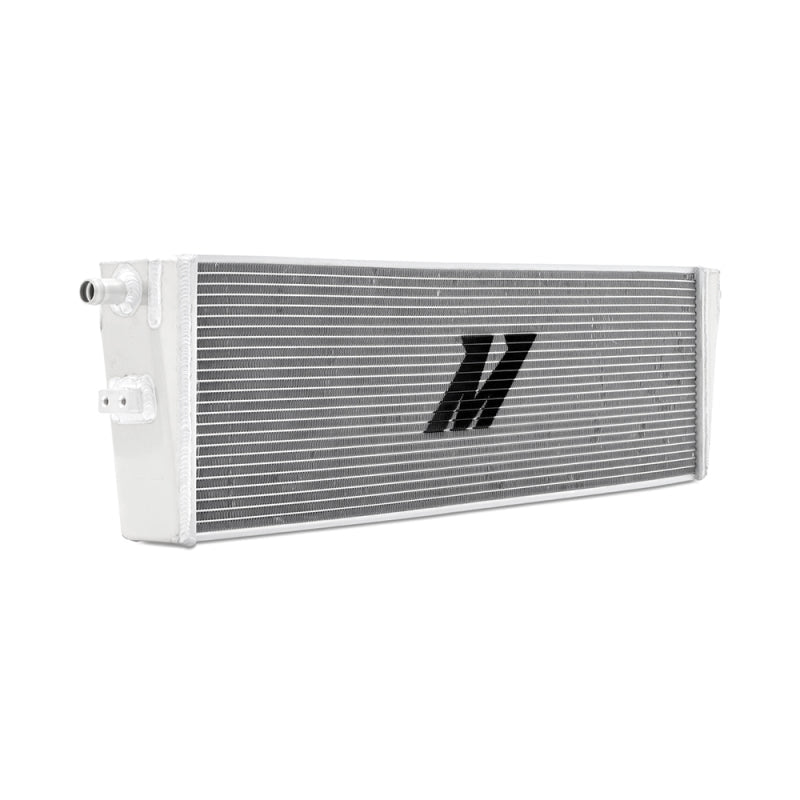

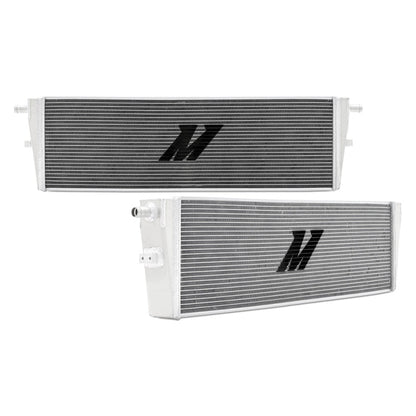

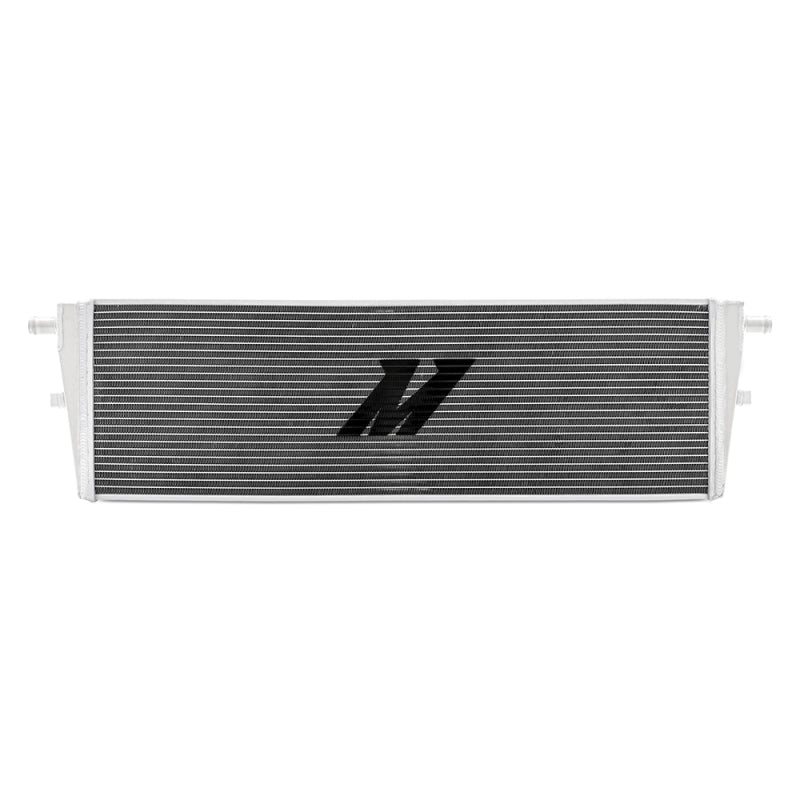

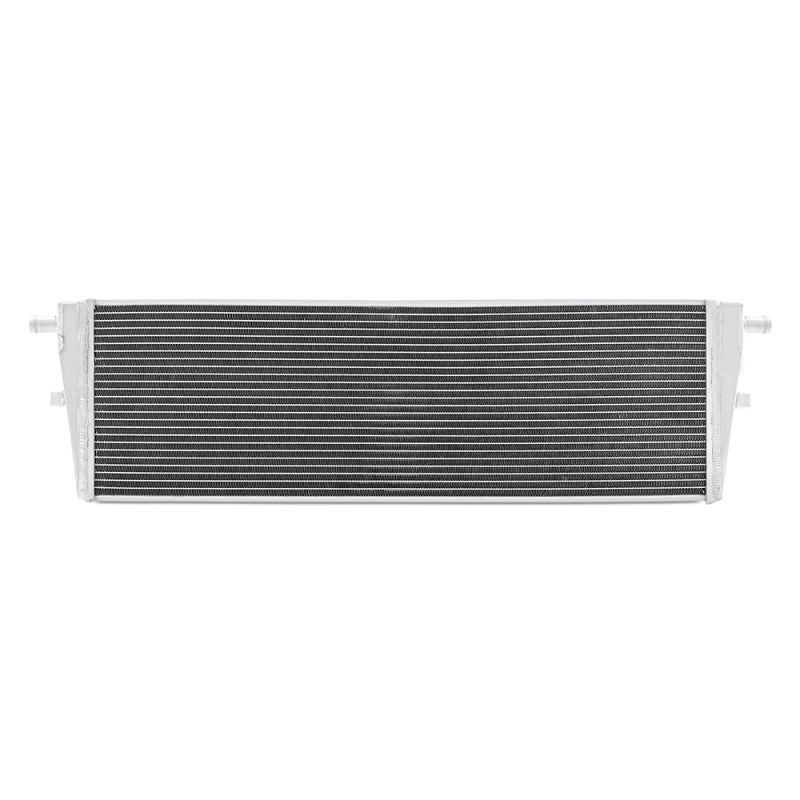

The Mishimoto Universal Single-Pass Air-to-Water Heat Exchanger rated for 750 hp is a universal heat exchanger for air-to-water intercooler systems, providing cooling support for charge-air cooling systems up to 750 hp with a single-pass, 3-row core measuring 25.98in x 7.81in x 2.04in.

• Part number: MMRAD-HE-02
• Universal fitment — for use with air-to-water intercooler systems
• Provides effective cooling support for charge-air cooling systems up to 750 hp
• Strategically designed 3-row core offers maximum flow and heat dissipation
• Core size: 25.98in x 7.81in x 2.04in
• Overall size: 31.85in x 8.55in x 2.67in
• All-aluminum construction yields superior strength and durability

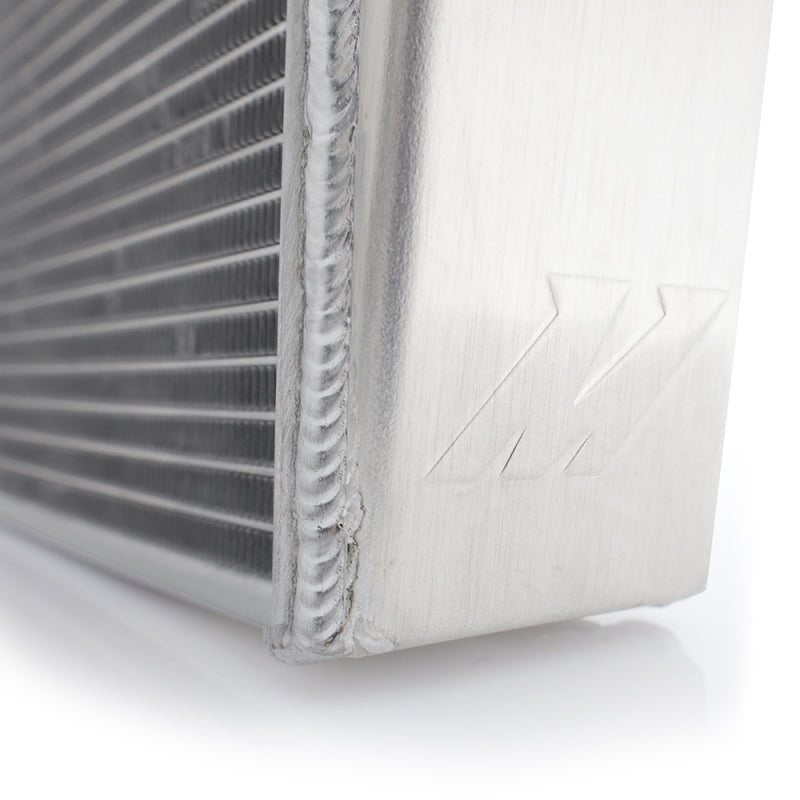

• Precision TIG-welded end tanks for improved durability and pressure tolerance
• Robust 1/2-in thick universal mounting bosses on each end tank
• Bead rolled 3/4-in inlet and outlet provide a leak-free connection

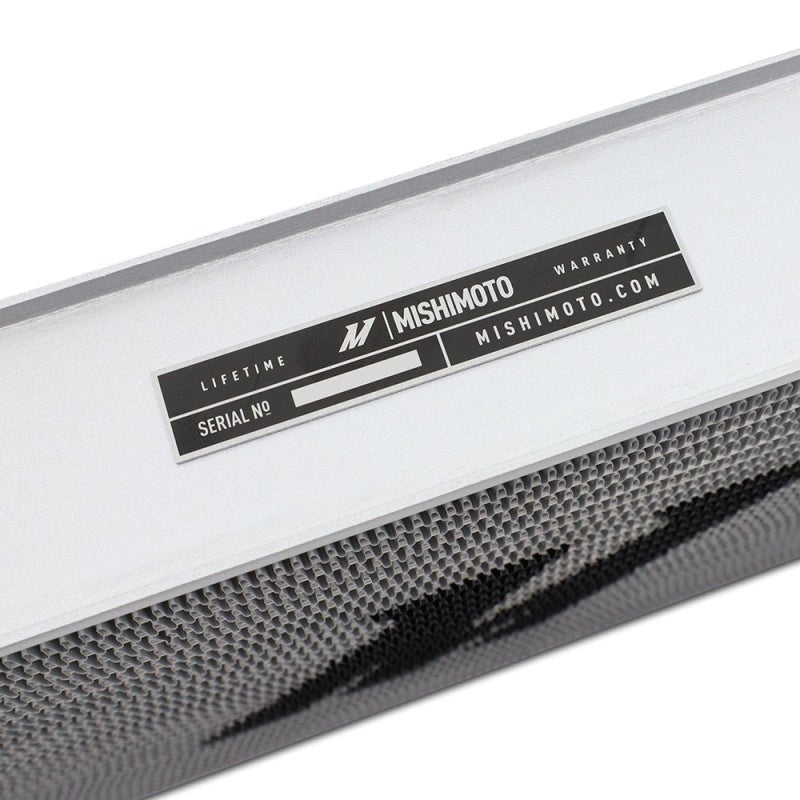

• Mishimoto Lifetime Warranty

Frequently Asked Questions

How much power does this heat exchanger support?
This single-pass heat exchanger provides effective cooling support for charge-air cooling systems up to 750 hp.

What is included in the box?
The box includes (1) Mishimoto heat exchanger, covered by the Mishimoto Lifetime Warranty.

What size is the core?
The 3-row core measures 25.98in x 7.81in x 2.04in, and the overall size is 31.85in x 8.55in x 2.67in.
