Kontrol Pro Damper System | 1995-1999 2G DSM | CMT060-KP

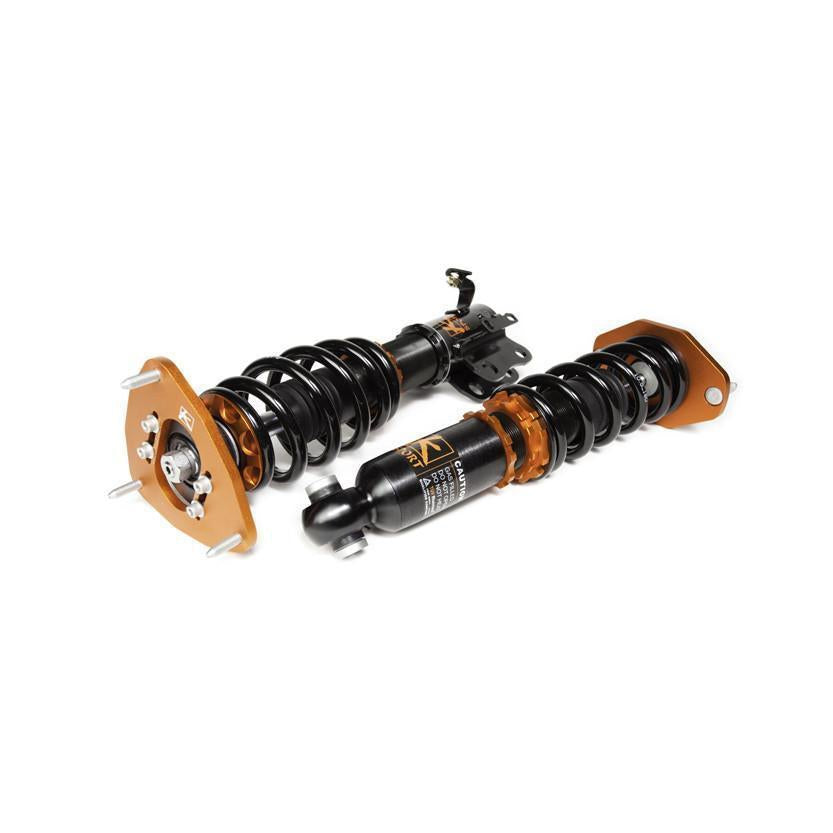

KONTROL PRO COILOVER KIT – CMT060-KP

Ksport Kontrol Pro Fully Adjustable Coilover Kits provide the ultimate in suspension technology for your vehicle, both on the street or at the track. 36 levels of damping adjustment allow fine tuning of the damper to suit both handling and comfort needs. The damping adjustment alters compression and rebound simultaneously, for more effective and user-friendly setup changes.

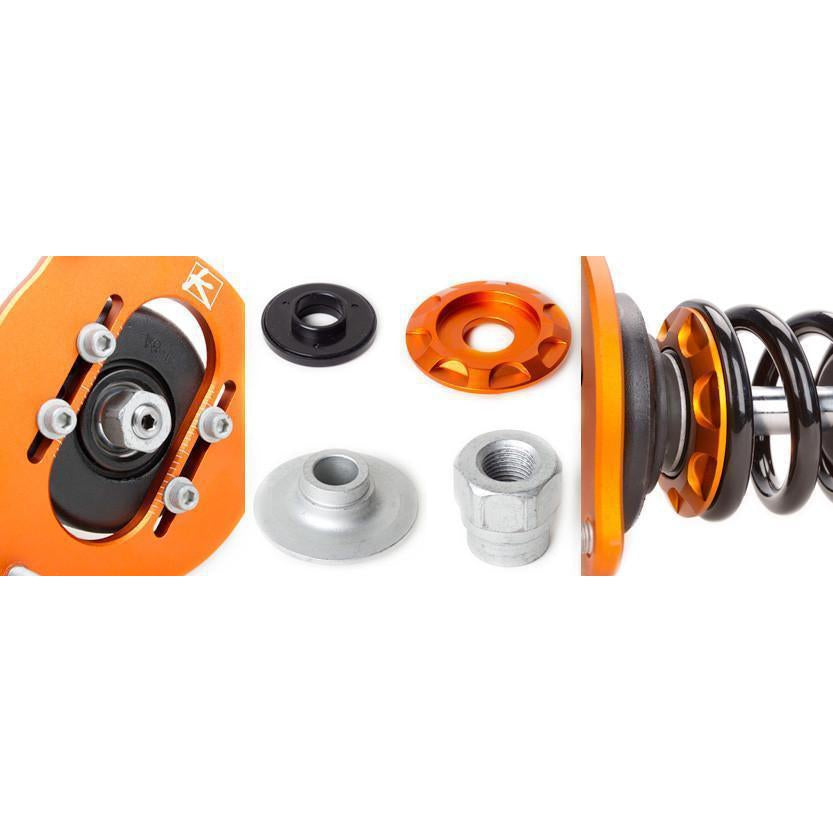

Pillow ball top mounts in the front and rear on some applications allow the vehicle to install and setup to OEM specifications. Ksport’s patented upper pillow ball mount offers the same level of adjustability and performance but allows for compliance that is often required from high-demand strut applications.

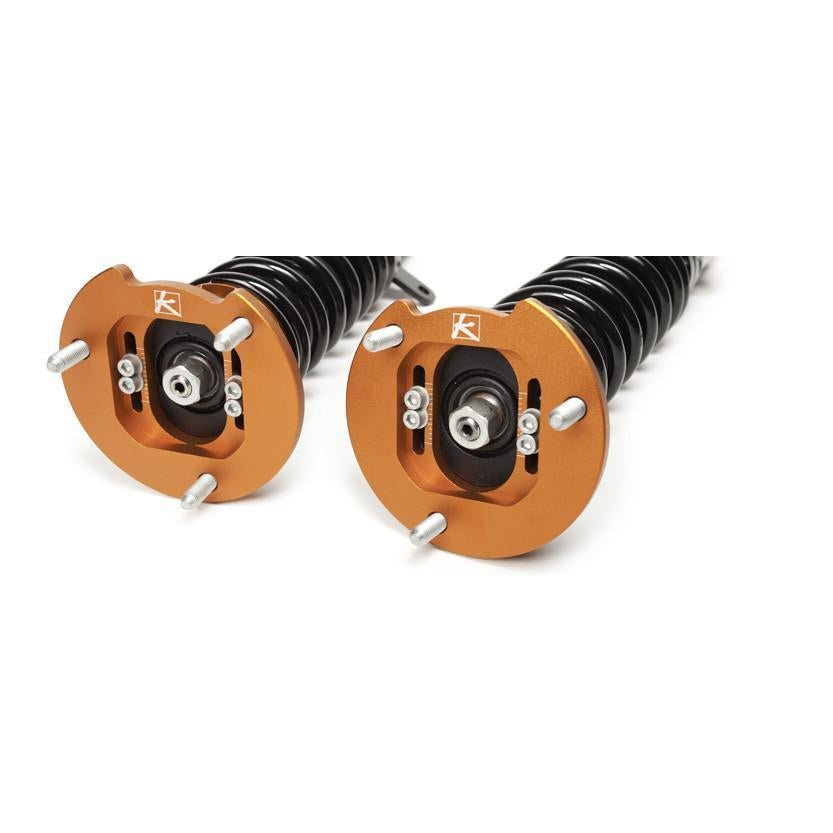

On applicable models, the pillowball upper mounts offer camber adjustment, saving the need for a special, separate camber kit. For enthusiasts seeking the ultimate in adjustability, Ksport’s advanced upper pillow ball mount is available on some applications, giving the option for separate camber and caster adjustment.

Most applications utilize an adjustable lower mount, which means height adjustability without losing suspension travel—a problem found in many coilover systems available today. Since mounts and most pieces in the coilover system are designed from 6061 billet aluminum, the components are lightweight, durable, and rust resistant.

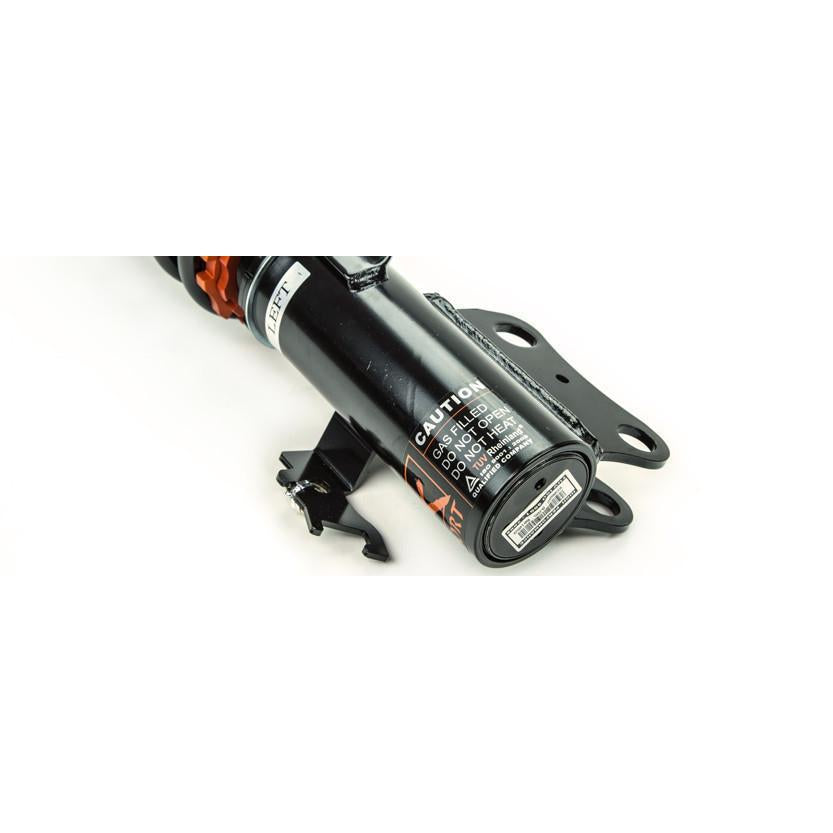

Steel shock bodies are electroplated with zinc to resist rust and protect from the elements. The shock or strut valving for each piece is matched accordingly to the spring rate, giving superior ride quality and reliability.

The Ksport system uses a Monotube design in which the oil and gas are separated within the cylinder. When compared to twin tube construction, the Monotube design dissipates heat faster and more evenly, allows finer damping adjustments, and requires more expensive design process. Aeration and cavitation issues are a lot less common in a Monotube design, which results in a more consistent ride quality. The Ksport Kontrol Pro Coilover system has been designed with professional road racing in mind, offering extremely high value and performance for any application.

Features

• Collars and Upper Mounts Made from 6061 Aluminum with T6 for Increased Hardness
• Adjustable Lower Mount Allowing Maximum Suspension Travel
• Camber Adjustment on Many Models
• Monotube High Pressure Design Reduces Oil Leakage
• Electroplated Body for Added Protection from Corrosion and Rust
• Dust Boot to Protect Damper Seal
• Spring Rate Fr kg/mm 12
• Spring Rate Rr kg/mm 6.7
• Top Mount Front ATM
• Top Mount Rear ATM

Benefits

• Pillowball Top Mount for Increased Steering Feel
• 36-Way Adjustable Damping

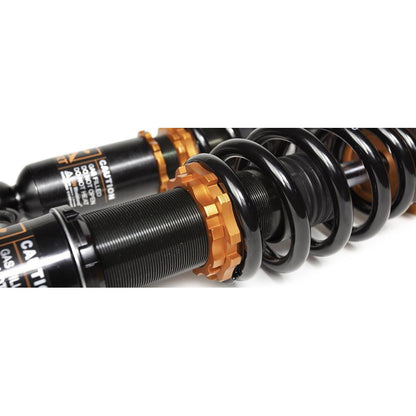

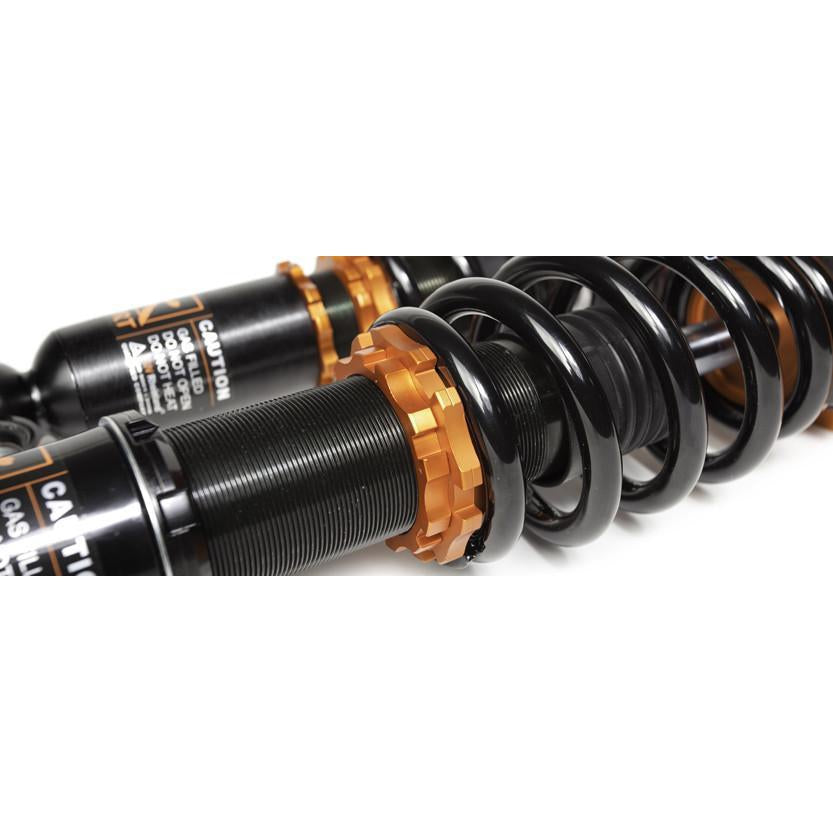

• Adjustable Spring Perch for Height Adjustment

Applications

• 1995-1999 2G DSM (Eclipse / Talon)

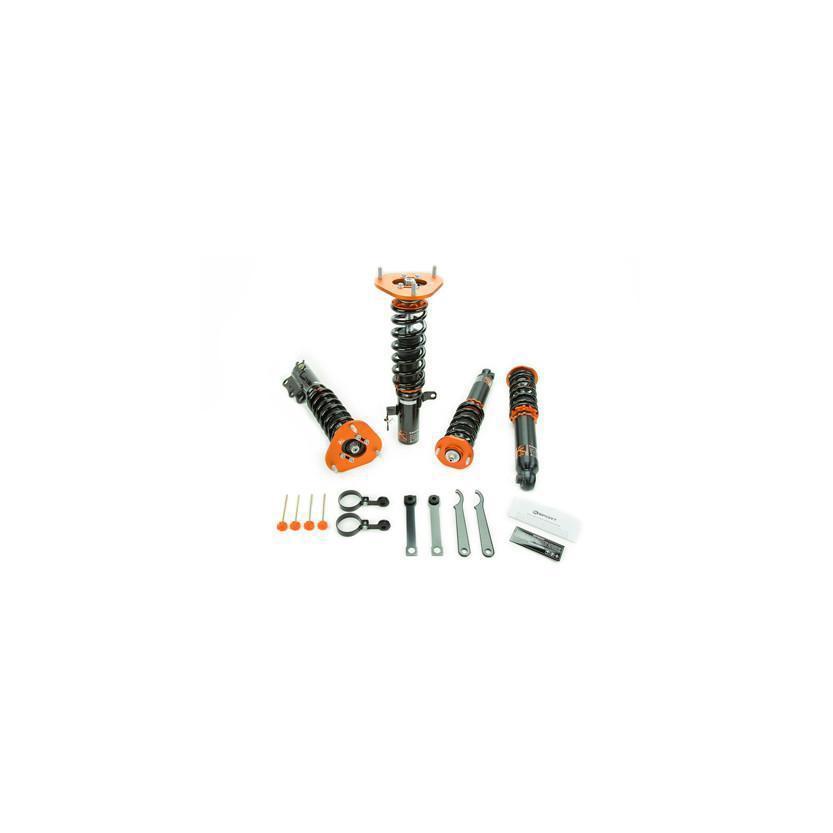

What's In The Box?

• (4) Coilovers
• Installation Hardware

Warranty

• Manufacturer 12 Month Warranty
