SES Intercooler Pipes

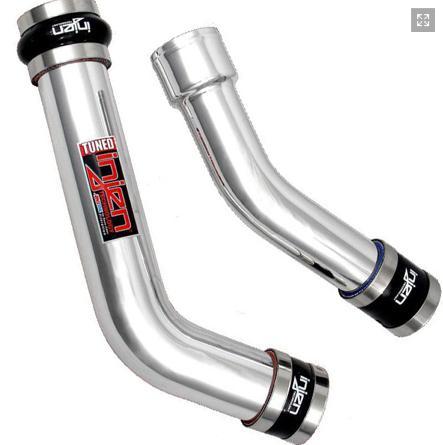

The Injen SES Intercooler Pipes (SES1837ICP) are a direct fit for the 2009-2012 Mitsubishi Lancer Ralliart L4-2.0L Turbo. The upper intercooler piping uses lightweight mandrel-bent 6061-T6 aluminum in a stepped 2.00" and 2.50" design, with automotive grade silicone couplers and stainless steel band clamps with inner protective liner. Injen notes it is intercooler pipe only. This listing offers Black (SES1837ICPBLK) and Polished (SES1837ICP) finishes.

Key Features

• Direct fit for 2009-2012 Mitsubishi Lancer Ralliart L4-2.0L Turbo
• Manufactured from lightweight 6061-T6 aluminum piping
• Stepped design utilizing 2.00" and 2.50" piping
• Stainless steel band clamps with inner protective liner and automotive grade silicone couplers
• Beaded tube ends to help prevent couplers from coming off
• Uses all factory mounting locations
• Made in Pomona, California, USA
• Injen Technology Limited Lifetime Warranty

Installation Overview

Injen states installation does require some mechanical skills and strongly recommends installation by a professional mechanic. Injen also notes that installed SES intercooler and charge pipes are not eligible for return.

• Loosen the stock upper intercooler hose clamps at the intercooler outlet and turbo inlet with a nut driver and pull the stock hose off both.
• Place the 2" straight hose and clamps over the primary intercooler pipe, lower it into the engine compartment, and press the 2" hose over the turbo inlet.
• Press the 2 1/2" hump hose over the stock intercooler outlet pipe, then press the secondary pipe into the 2 1/2" hose and its other end into the 2" hose on the primary pipe.
• Align both pipes for best fit, then tighten all clamps. Periodically check the fitment of the piping, hoses and clamps.

Emissions

Injen states this product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles. It cannot be shipped into CA, CO, CT, DE, ME, MD, MA, MN, NY, NJ, OR, PA, RI, VT or WA.

Warning (Black SES1837ICPBLK): This product can expose you to chemicals including Chromium, Nickel, Carbon Black, Bisphenol A/Epichlorohydrin Polymer and Cobalt, which are known to the State of California to cause cancer, and Antimony (Oxide), Arsenic, Beryllium, Chromium (hexavalent), Cobalt, Cadmium, Lead and Nickel, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Warning (Polished SES1837ICP): This product can expose you to chemicals including Chromium, Nickel, Carbon Black, Bisphenol A/Epichlorohydrin Polymer and Cobalt, which are known to the State of California to cause cancer, and Antimony (Oxide), Arsenic, Beryllium, Chromium (hexavalent), Cobalt, Cadmium, Lead and Nickel, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Q&A

Q: Which vehicles does SES1837ICP fit?
A: Injen lists the 2009-2012 Mitsubishi Lancer Ralliart L4-2.0L Turbo.

Q: What piping sizes are used?
A: Injen lists a stepped design utilizing 2.00" and 2.50" piping.

Q: Does it use the factory mounting points?
A: Yes. Injen states it uses all factory mounting locations.

Q: Is it CARB legal?
A: No. Injen states it is not currently CARB exempt.
