Intercooler Piping Kit
Fits: 08-25 GT-R
Talk to an Enthusiast
Verify Fitment & Product Recommendations
M-F 9:00AM - 6:00PM
Availability & lead time
This item is currently backordered or its inventory is not tracked in real time. Once your order is placed, we will source it through the manufacturer or our distributor network and ship it as soon as possible. If you need the item by a specific date, please contact us for an estimated ship date before ordering.
Pick Up Available at
Pay over time · Est. $34.38/payment ⓘ
Illustrative estimate only, not a financing quote or guaranteed offer. Actual payments, frequency and terms vary by provider and eligibility. Taxes, shipping and add-ons are excluded. View all options
Pay over time · Est. $34.38/payment ⓘ
Illustrative estimate only, not a financing quote or guaranteed offer. Actual payments, frequency and terms vary by provider and eligibility. Taxes, shipping and add-ons are excluded. View all options
Fitment
Fitment
- 2009–2021 Nissan | GT-R
Description
Description
The HKS Intercooler Piping Kit for the Nissan GT-R R35 (VR38DETT) (13002-AN003) replaces the factory rubber hoses with aluminum pipes to be more durable at high boost pressure. HKS enlarges the pipe diameter to 65mm, which is effective for higher engine output. HKS Super SQV4 Kit (P/N 71008-AN027) is required for installation.
Key Features
- Aluminum pipes replace the factory rubber hoses for durability at high boost pressure
- Pipe diameter enlarged to 65mm
- Purple and HKS logo printed hoses included
- Buffed aluminum surfaces improve the engine compartment appearance

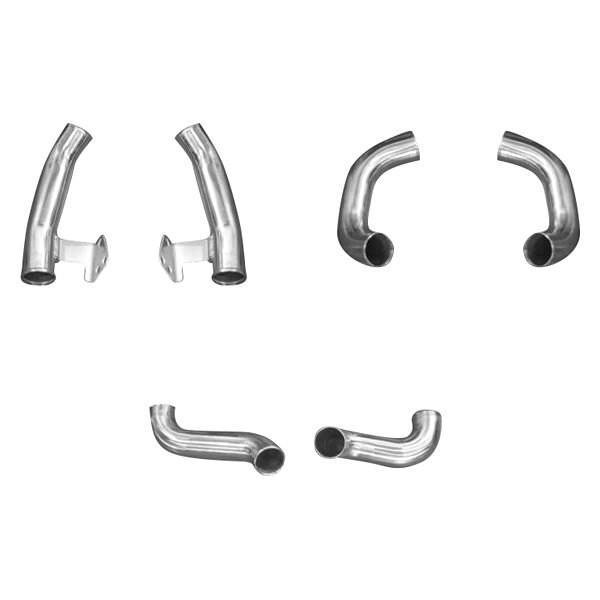

- Inlet pipe x 2, outlet pipe x 4, silicone hose x 10; hardware necessary for installation is included
- Included in the HKS GT570 and GT600 packages
- Requires HKS Super SQV4 Kit 71008-AN027 (sold separately)
Fitment
- 2008-2025 Nissan GT-R R35, VR38DETT, AWD
Installation Overview (from the HKS manual)
- Before beginning removal of the factory parts, disconnect the negative cable from the battery terminal. Use the HKS manual and the manufacturer's service manual as a reference.
- Remove both left and right side inner fenders, the under cover, the radiator cover, the turn signal's coupler, the front bumper, the under cover bracket, and the reinforcement and oil cooler duct.
- Remove the hose and the pipe before the throttle body on both sides, disconnect the hoses from the intercooler core assembly, and remove the pipe and the hose from the front tire housing on both sides.
- Remove the rubber bushing from the factory pipe and install it to the Outlet Pipe #2 (RH) and (LH).
- Install the Inlet Pipes, Outlet Pipes #1 and Outlet Pipes #2 (RH and LH) using the provided hoses and hose clamps, making sure the pipes do not come in contact with any other parts.
- Install the SSQV pipe and/or the SSQV main unit in accordance with the SSQV installation manual, then reinstall all removed factory parts in the opposite order of removal.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Q: Which vehicle does 13002-AN003 fit?
A: It fits the 2008-2025 Nissan GT-R R35 (VR38DETT).
Q: Do I need anything else?
A: Yes. The HKS Super SQV4 Kit (P/N 71008-AN027) is required for installation.
Q: What pipe size is it?
A: The pipe diameter is enlarged to 65mm.
Q: What is included?
A: Inlet pipe x 2, outlet pipe x 4 and silicone hose x 10, plus the hardware necessary for installation.
