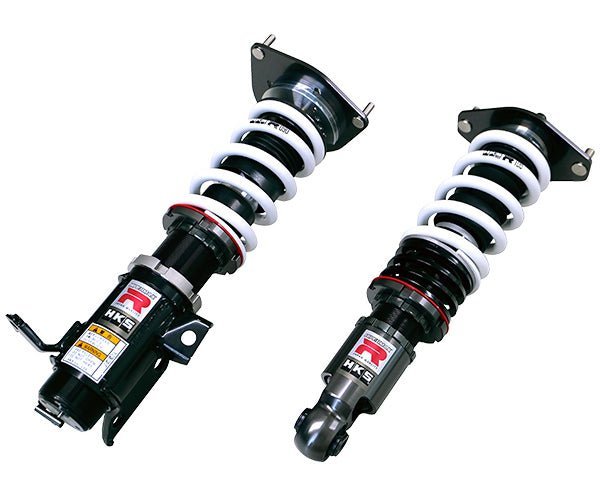

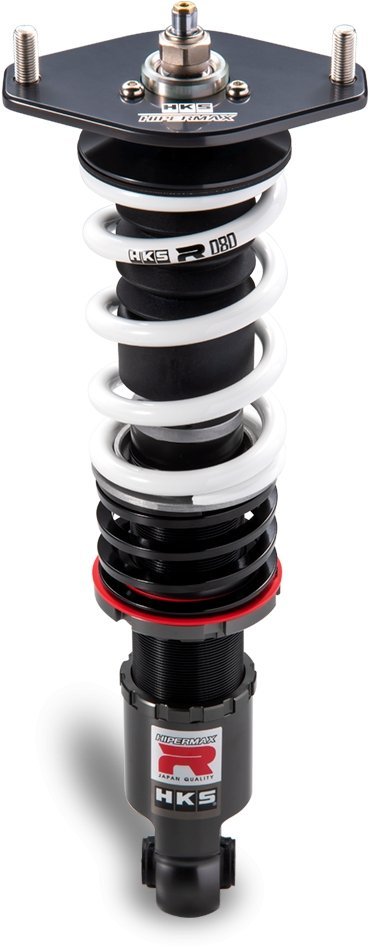

HKS Hipermax R Coilovers | 80310-AF005

Here, you are looking at the newest in coilover technology from HKS for your 2022-2023 BRZ.

The HIPERMAX R Series has evolved all of handling, traction, and ease of fit to a new series by concentrating the technological capabilities cultivated over the past 9 years since the launch of MAX IV SP. The HIPERMAX R Series has achieved overwhelming performance that is unrivaled by any other brand.

HKS Developed this kit through vast testing with ADVAN A052 Tires (235/40R18) at Fuji Speedway Racing Course. The end result of their testing is the Hipermax-R, perfect for those who want to focus on performance on the race track, but do not want to sacrifice driving comfort in everyday use.

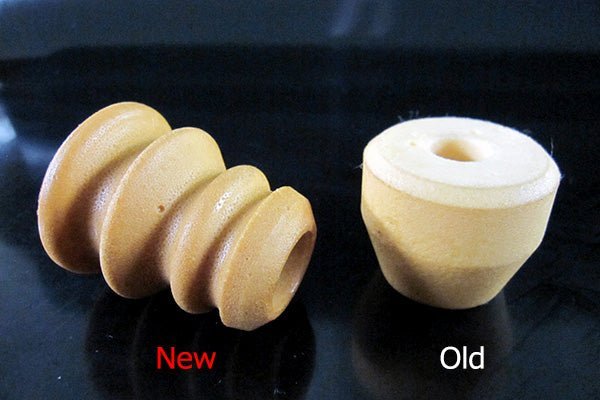

The new WR Needle design allows for large adjustment ranges. Even with one notch, you feel the change of movement strongly. This allows for comfort in both street driving and on track. By adopting the bump rubber that HKS has been researching for many years, it creates the stable feeling when cornering. It allows the tires to gain stable traction without suddenly losing grip when pushing the vehicle to its limits.

For the best handling characteristics on track, HKS recommends the front tires to be set about 0.5-1.0mm toe out with slight camber, and the rear tires should be about 0 to 0.5mm toe in. We recommend about 5 to 10 clicks of damping force adjustment at the front and rear.

The damping balance between compression and extension has been optimized.

Details:

• HIPERMAX R Exclusive newly developed oil "SRF (Super Response Fluid)"Damping starts up from a very low speed range, resulting in reliable handling, great damping and high stability.

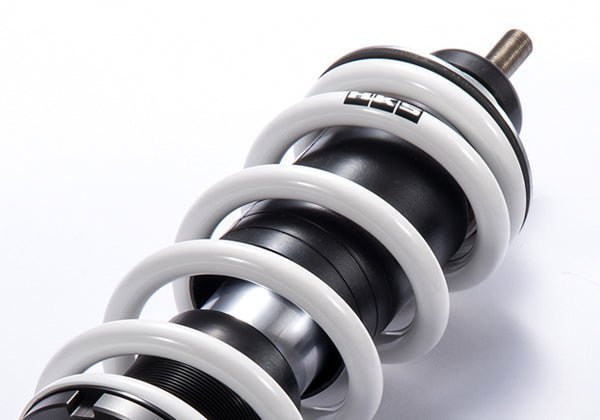

• HIPERMAX R Exclusive High-Strength Spring "LVS(Low Vibration Spring)"Newly developed special spring for high-strength wire that is ideal for sports driving. Provides excellent response and smooth ride.
• Retainer on top of spring is standard equipment. This eliminates side forces and lowers friction. Stability is improved by following changes in load.
• Dual Preload Valve System originally designed for the HIPERMAX S. By carefully selecting valve shims for each vehicle model, the settings are tailored to the vehicle to provide direct handling and reliable stability.
• The improved shape of the needle expands the oil relief channel. Each step of the 30 steps adjustment is now more prominent. Having softer adjustment options gives more options for street driving.
• The Mono-Tube design of the HIPERMAX series is adopted. The structure allows the gas and oil chambers to be separated, and the use of a large-diameter piston provides high quality and stable damping force characteristics.
• Inverted Type Damper works to the advantage of various performances when driving, and provides excellent handling and ride comfort.

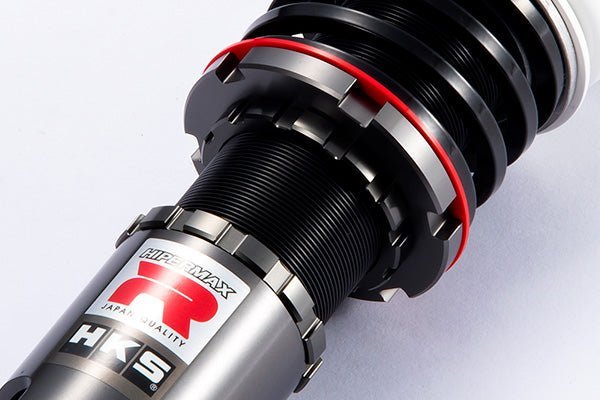

• PNE Coating Prevents sticking due to rust, which is the bottleneck of full-length adjustable dampers. Also, the smooth surface reduces the force required for vehicle height adjustment.

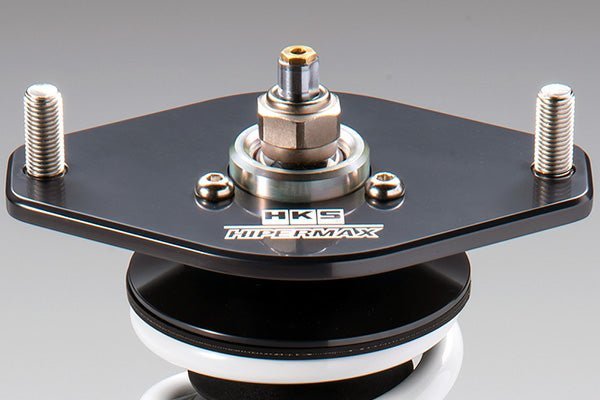

• Pillow Upper Mount

• 2-year or
  40,000 km warranty
