FactionFab

FactionFab

Titanium Front Brake Shim

Fits: 11-14 WRX, 13-24 BRZ, 13-17 FR-S, 18-24 86/GR86

$7500
Earn $1.50 In JDMuscle Rewards!
Profile Avatar

Talk to an Enthusiast

Verify Fitment & Product Recommendations

M-F 9:00AM - 6:00PM

(866) 833-3536 Email Text (610) 735-6688Text
Low stock! Only 10 left
Pay over time available · View all options
Katapult Affirm Klarna Shop Pay
View all options
FactionFab Titanium Front Brake Shim
Fits: 11-14 WRX, 13-24 BRZ, 13-17 FR-S, 18-24 86/GR86

Other brake pads for 13-20 BRZ/FR-S/86

See all 21

Fitment

Please Note: Front position; fits brake pads with the FMSI D1539 pad shape. FactionFab fitment: 2011-2014 Subaru WRX, 2013-2024 Subaru BRZ, 2018-2024 Toyota 86/GR86, 2013-2017 Scion FR-S. Not listed for 2022+ WRX front. 1.0mm thick CP3 / Grade 2 titanium; 4 shims included. Check official SCCA and NASA rules for class legality.
  • 2013-2016 Scion | FR-S
  • 2011-2014 Subaru | WRX
  • 2013-2020 Subaru | BRZ
  • 2017-2020 Toyota | 86
  • 2022-2026 Toyota | GR86

Description

The FactionFab Titanium Front Brake Shim for the 2013-2021 Scion FR-S, Subaru BRZ, and Toyota 86 platform and the 2022-2026 Subaru WRX with 6MT without Brembo brakes places a thermal barrier between the back of the brake pad and the caliper piston, slowing heat transfer into the caliper and brake fluid during track and autocross use. Titanium has very low heat conductivity compared to steel, and the 1.0mm titanium shim insulates and dissipates heat faster than steel shims, helping prevent brake fade and extending brake pad life.

  • Front position; fits brake pads with the FMSI D1539 pad shape

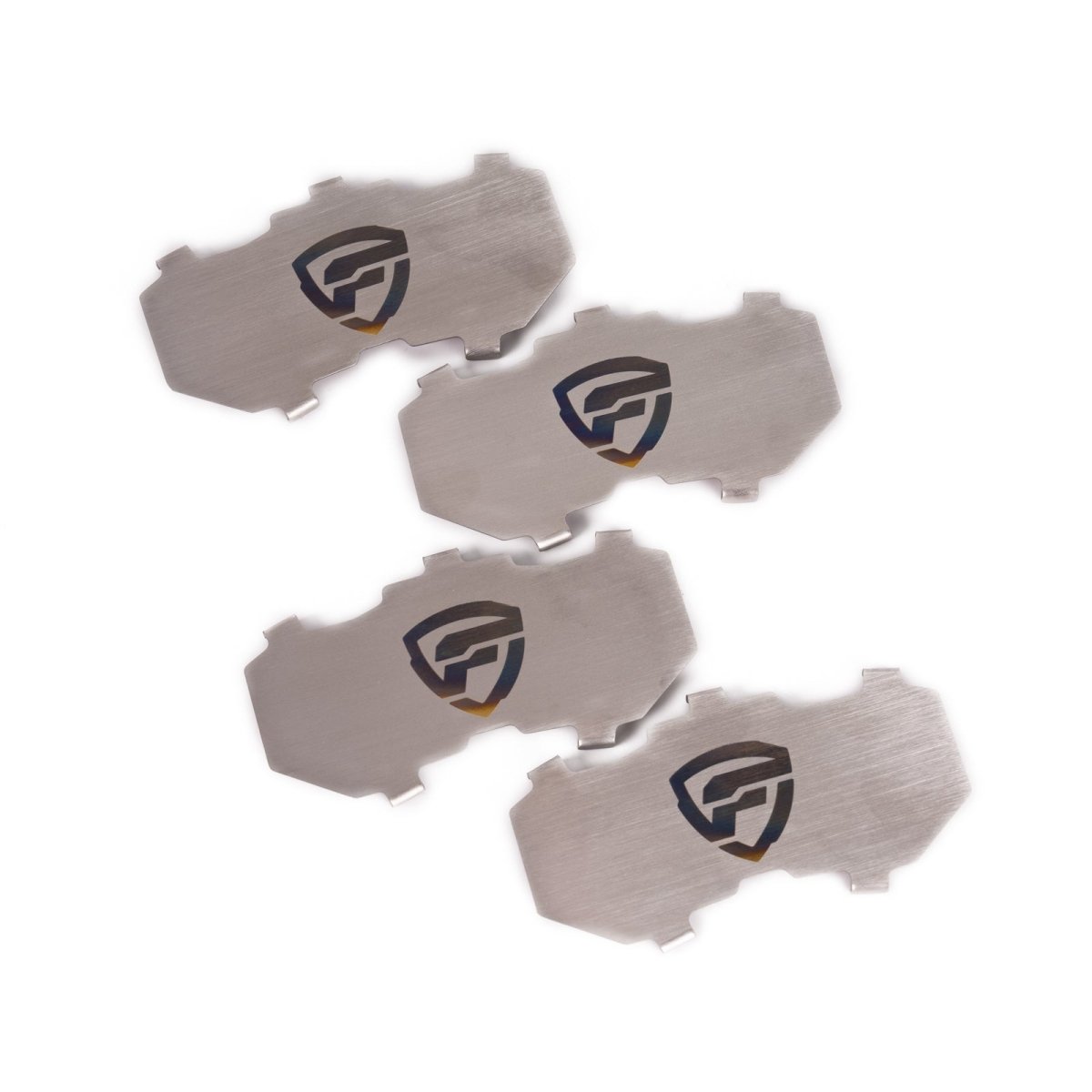

  • 4 shims included in each kit
  • Made of CP3 / Grade 2 titanium, an alloy with great bending characteristics, which has very low heat conductivity compared to steel
  • Shims are 1.0mm thick - better insulation compared to 0.5mm thick competitor shims
  • Acts as a thermal barrier to reduce heat transfer from the brake pad to the caliper piston
  • Helps prevent brake fade and potential brake failure, extending brake pad life and improving performance on the track
  • Qualifies for almost all SCCA and NASA classes; check official SCCA and NASA rules
  • Part Number: FFA1.10317.1

Q&A

Does this fit my car?
This front shim fits models using the FMSI D1539 pad shape, including the 2013-2021 FR-S, BRZ, and 86 platform and the 2022-2026 Subaru WRX 6MT without Brembo brakes listed for this product.

What is included in the box?

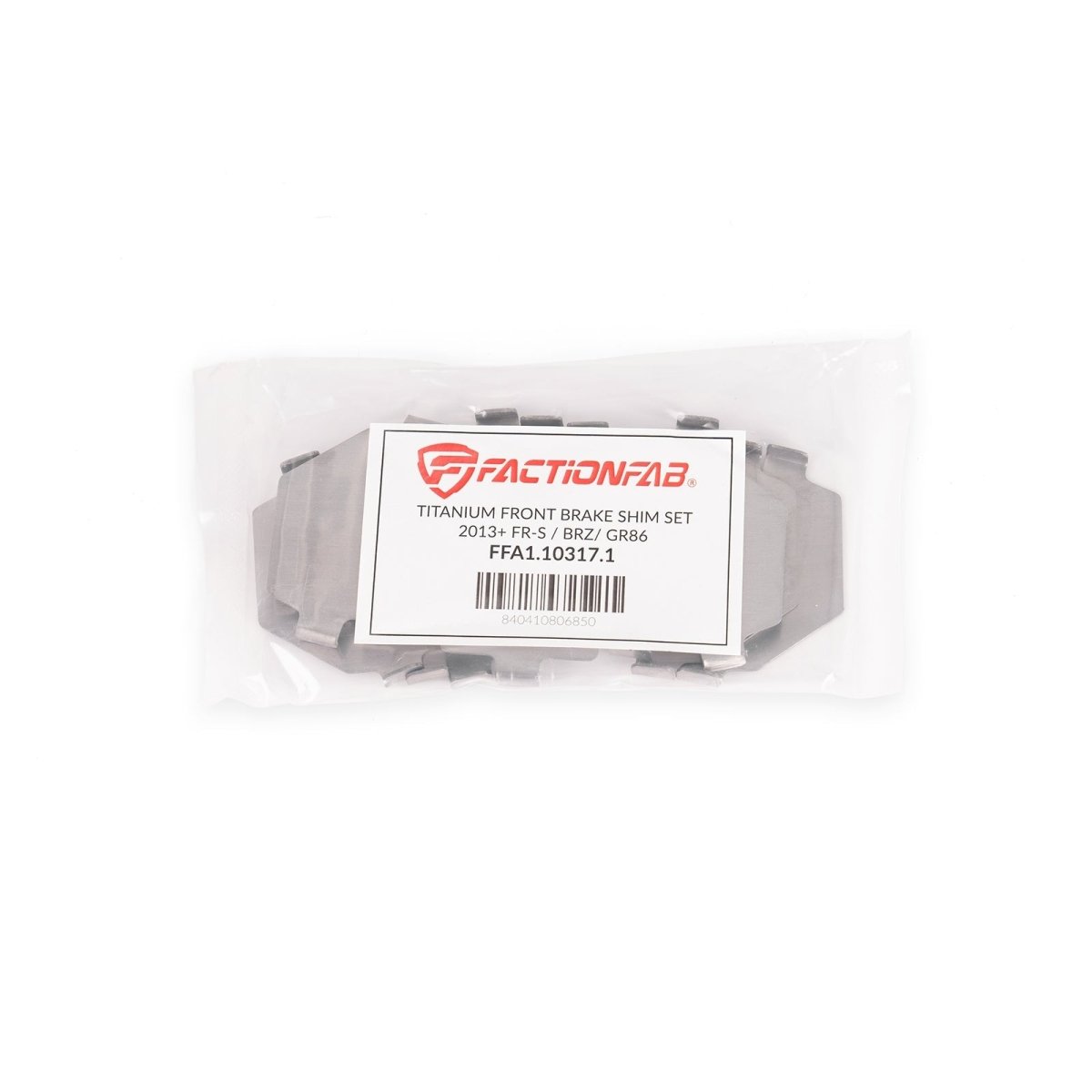

Four titanium brake shims.

How thick are the shims?
Each shim is 1.0mm thick and made of CP3 / Grade 2 titanium, which has very low heat conductivity compared to steel.
