ETS Ultimate Intercooler Kit

• 2022-2026 Subaru | WRX

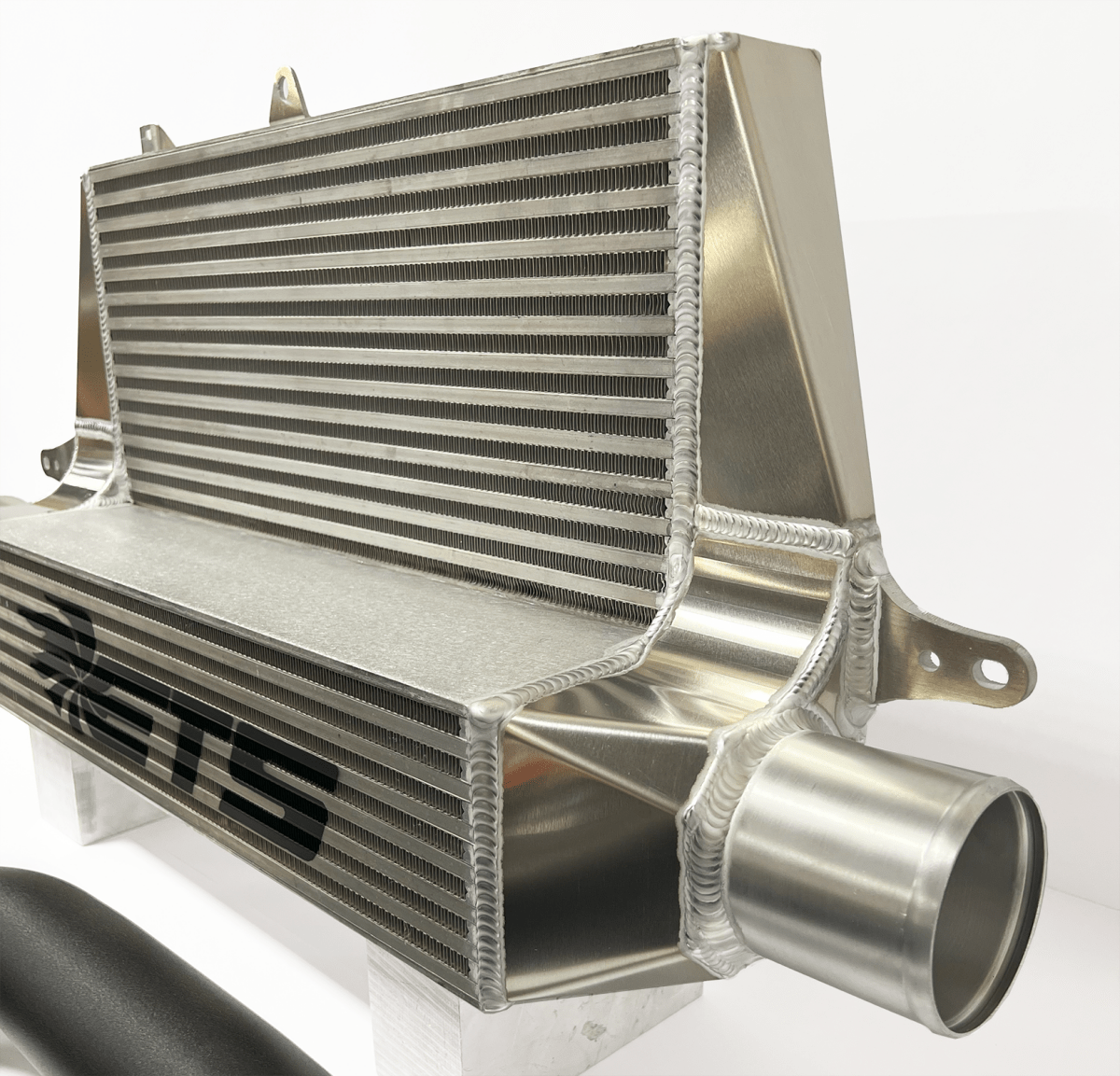

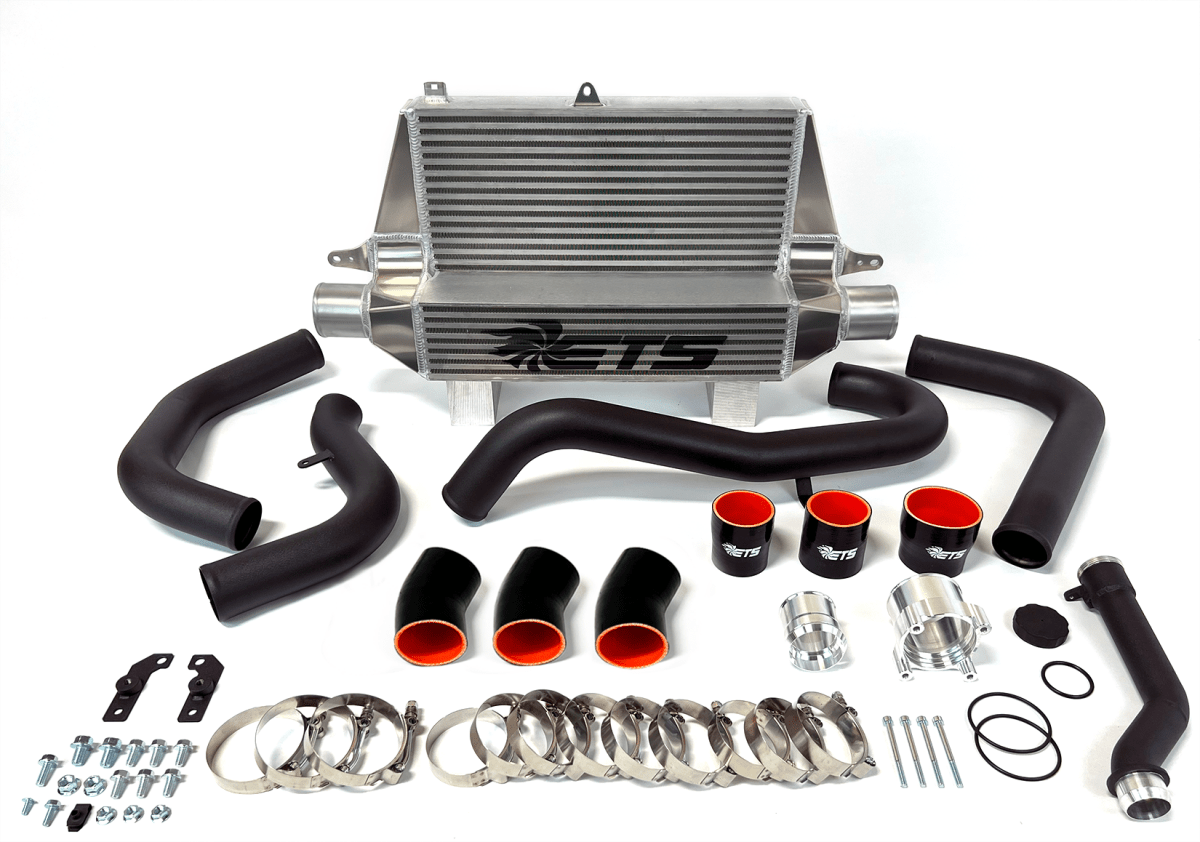

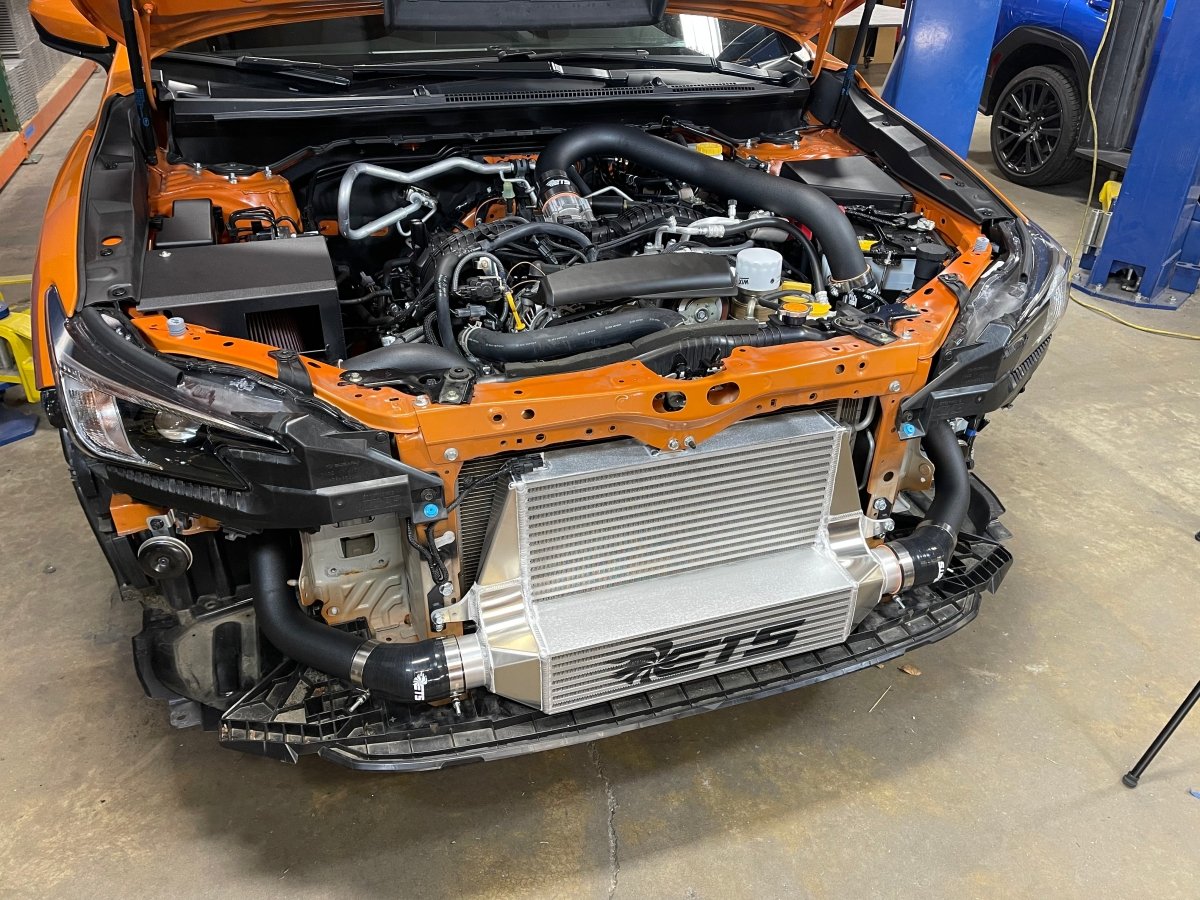

The ETS Ultimate Intercooler Kit for the 2022-2026 Subaru WRX is a front mount intercooler design that retains compatibility with the factory crash beam and delivers over 300% more capacity than the stock unit, with an advanced end tank design optimized for maximum flow. The stepped core design maximizes both frontal surface area and volume. The intercooler features a lower core thickness of 7.0" and a height of 13.50", allowing it to tuck behind the factory crash beam and bumper cover without modifications. A custom ETS windshield washer filler neck features a billet connection to the filler tank and a wrinkle-black billet screw-on cap, and retains the factory windshield washer O-ring.

• Stepped core design with over 300% more capacity than the stock intercooler

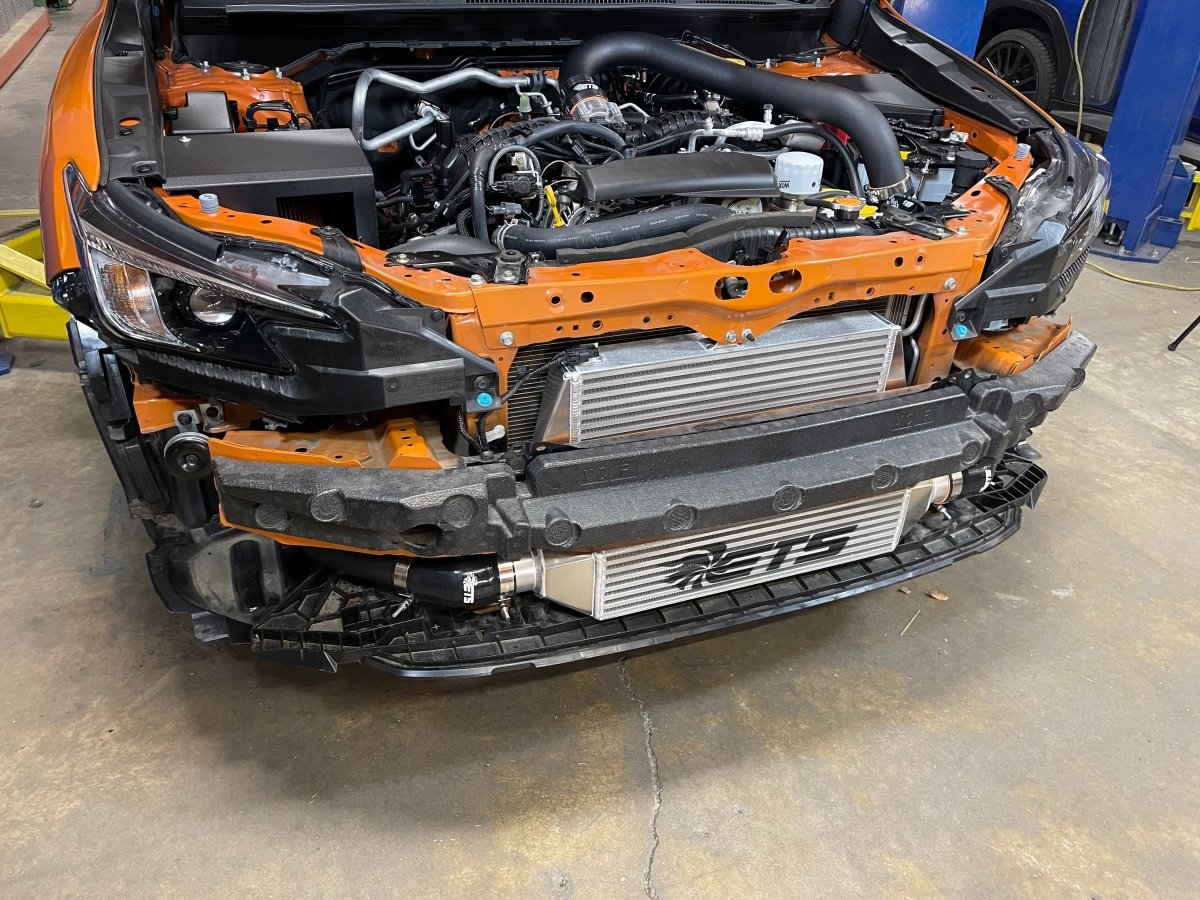

• Retains the factory bumper beam; lower core thickness 7.0", height 13.50"

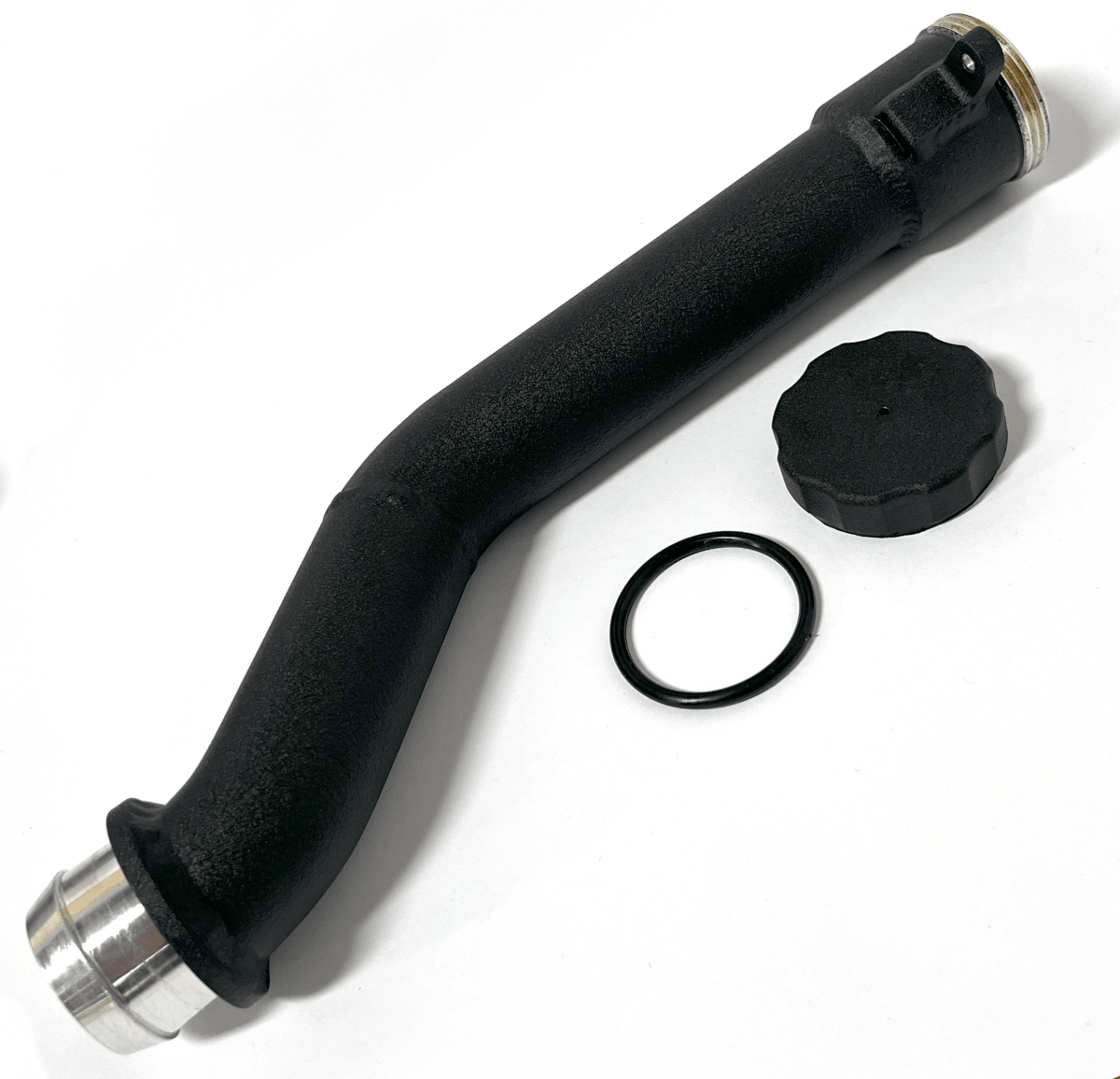

• Custom ETS windshield washer filler neck with billet connection and wrinkle-black billet screw-on cap
• 2.5" piping option: faster spool/better transient response, supports up to 750whp
• 3.0" piping option: designed for over 750whp

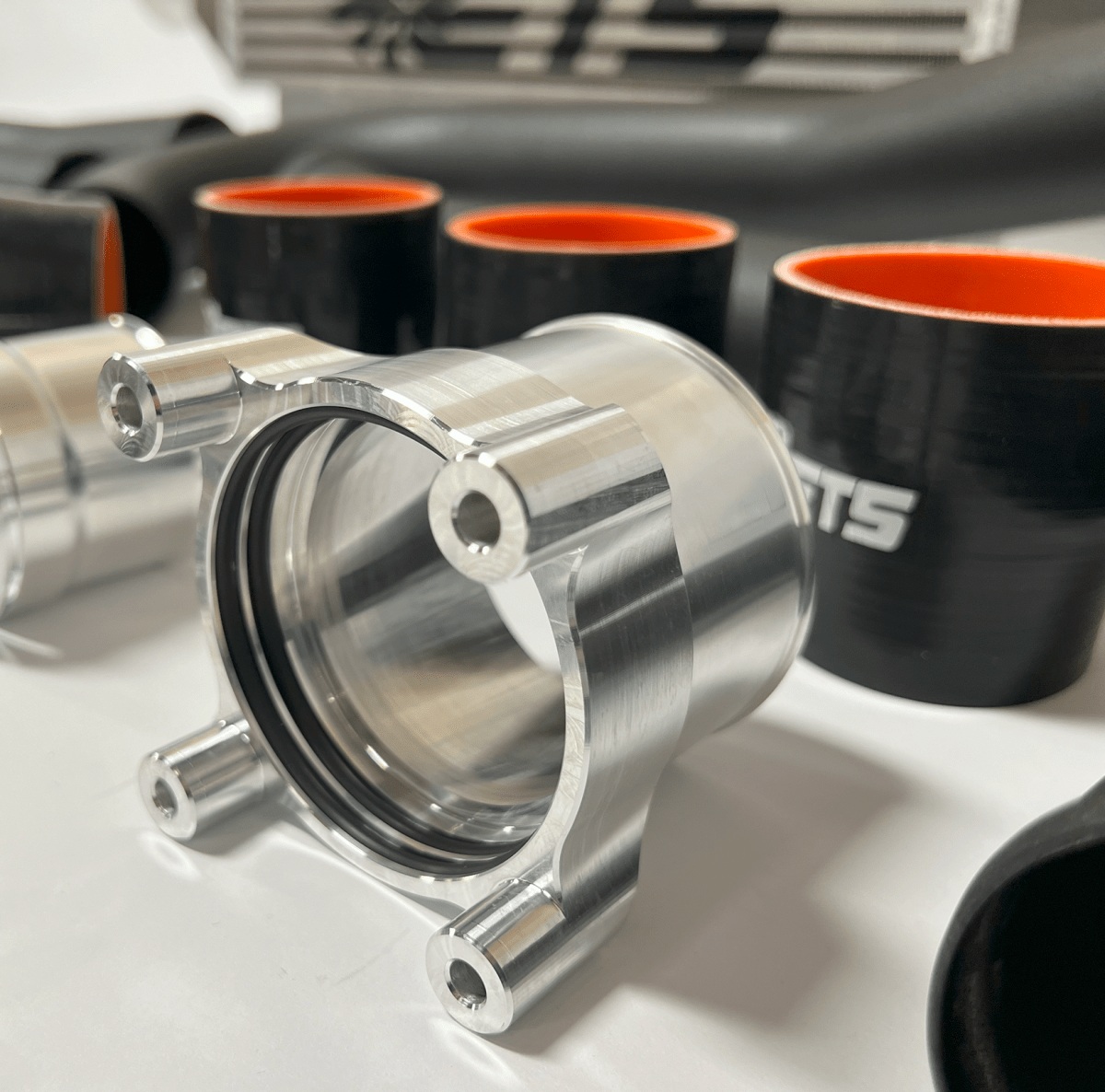

• Billet, double O-ring throttle body connection (Version 2 adapter)
• Relocated ambient temp sensor
• Anodizing options include Black, Red, Blue, Gold, and Purple; Black is the only color that provides UV protection
• Optional ETS stencil
• Pressure tested over 50 psi
• Part number family: ETS200-60-ICK (configuration varies)

Q&A

• Does this fit my 2022-2026 Subaru WRX? Yes, this ETS Ultimate Intercooler Kit is designed for the 2022-2026 Subaru WRX and retains compatibility with the factory crash beam, tucking behind the factory bumper cover without modifications.
• Which piping size should I choose? The 2.5" piping option is recommended for faster spool and better transient response and supports up to 750whp; the 3.0" piping option is designed for builds over 750whp.
• Does the core finish affect UV protection? Yes, Black is the only anodizing color that provides UV protection; prolonged UV exposure may cause other anodized core colors to fade over time.
