Halo Lights LED 50mm White Single
Talk to an Enthusiast
Verify Fitment & Product Recommendations
M-F 9:00AM - 6:00PM
Fitment
Fitment
- Universal
Description
Description

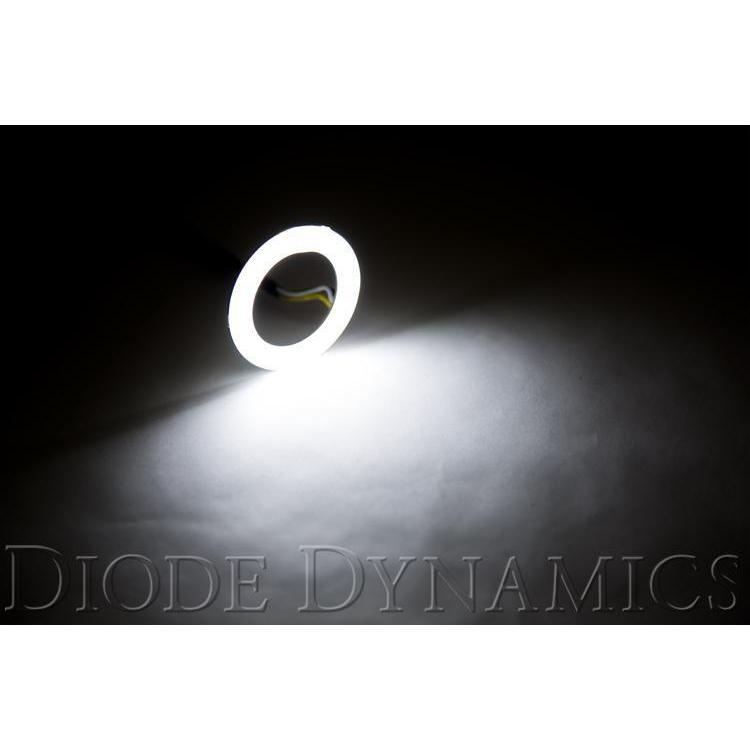

The Diode Dynamics HD LED Cool White Halo Ring (50mm, Single) is a universal high-density (HD) LED halo ring for adding white accent lighting inside headlamps, taillamps, or anywhere else on a vehicle. This universal LED halo has three input wiring functions — high-power, low-power, and a signaling mode — with no external controllers needed. Each halo is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on; when off, the diffusing gel hides the chips, resulting in a clean, OEM appearance. Part number: DD2070S.
Features
- HDHalo Technology — designed from the ground-up to be the brightest, most reliable halos physically possible
- Proprietary durable phosphor coating, for uniform solid appearance
- Multi-function PWM drivers, fully waterproof, featuring low power, high power, and turn signal modes
- Extremely bright, high-density LEDs that are visible even in direct sunlight
- Integrated mounting tabs for easy installation
- Made in USA
Specifications
- Ring size: 50mm outside diameter; width is 8mm, so inside diameter is 34mm; total height is 4.5mm
- Operating Voltage: 9-16V
- Operating Temperature: -40C to 85C (-40F to 185F)
- Connector(s): JST
- Driver Dimensions: 2.5 x 1.38 x 0.88 inch
- Warranty: 3 year warranty
Wiring and PWM Control
- All wires have a durable braided wire covering; the LED has a 20-inch wire with female JST type connector
- Both the input and output wire on the driver are 20 inches each; a 20-inch pigtail with male spade connectors is included to connect to factory wiring with the included T-taps
- White wire: White Low Power, 50 percent brightness
- Red wire: White High Power, 100 percent brightness
- Yellow wire: Signal, double brightness, flashing (dims if powered more than two seconds)
- Black wire: Ground
- All white-colored halos ship with low priority drivers: if both low and high power inputs are powered, the LED will light up at the low power level
What's Included
- One (1) LED halo ring(s)
- One (1) waterproof driver(s)
- One (1) input wire pigtail(s)
- Four (4) T-tap connectors
- Installation guide
Q&A
- Q: Does this halo fit my vehicle? A: This is a universal 50mm outside diameter halo ring (34mm inside diameter), not a vehicle-specific kit, so verify the diameter fits your application before purchase.
- Q: What is included in the box? A: The box includes one (1) LED halo ring(s), one (1) waterproof driver(s), one (1) input wire pigtail(s), four (4) T-tap connectors, and an installation guide.
- Q: How is this halo installed? A: The halos must be custom-mounted in position using adhesive or beading wire using the integrated mounting tabs, and the driver wires connect to any 12V signals; headlights must be opened for installation inside a headlamp.
