X-Series Boost/Fuel Pressure Gauge 0-15 PSI

• Universal

The AEM X-Series Boost/Fuel Pressure Gauge (30-0309) is a 52mm digital gauge that displays boost or fuel pressure from 0 to 15 PSI for supercharged or carbureted vehicles that need highly accurate low-pressure readouts. It combines a bright center LED display that is 87% larger than the original AEM digital gauges with a sweeping green LED needle for quick reference.

• Part number: 30-0309
• Fitment: Universal
• Display range: 0-15 PSI boost or fuel pressure (SAE only)
• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Slim 0.825 inch overall gauge depth and 0.200 inch cup depth
• Programmable center LED display is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to the displayed parameter
• Peak/Recall via gauge face buttons
• User selectable threshold warnings
• AEMnet CANbus-enabled for transmitting data to an EMS or data logger
• 0-5V analog outputs for transmitting data to an EMS or data logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection

Frequently Asked Questions

Does this fit my vehicle?
Yes. This is a universal 52mm gauge for monitoring boost or fuel pressure from 0 to 15 PSI; it is not vehicle specific.

What is included in the box?

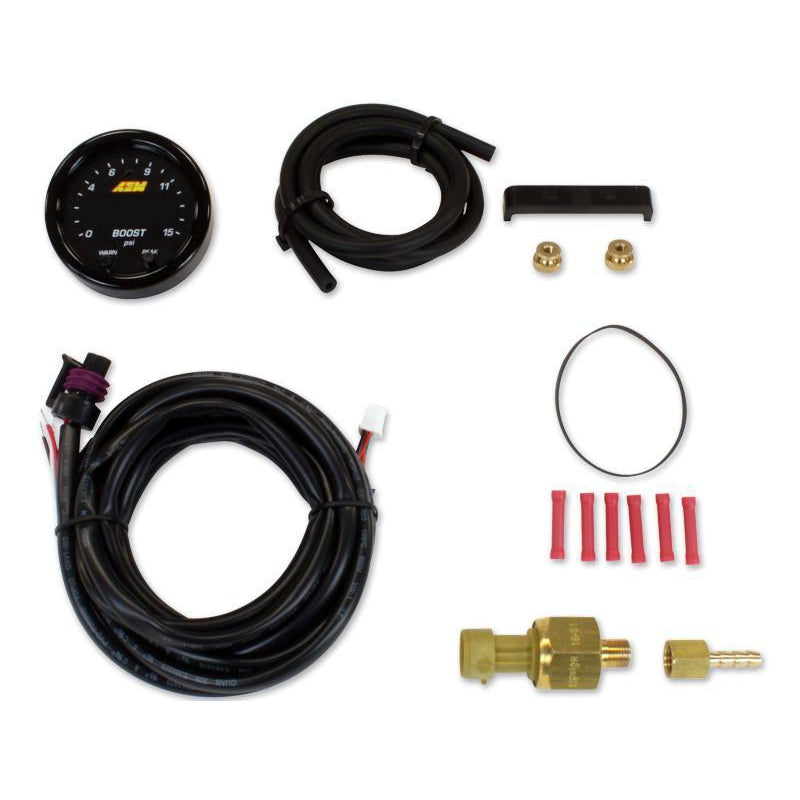

The gauge kit includes the gauge with a black bezel and black boost/fuel faceplate, the 15 PSIG brass pressure sensor, wiring harness, fittings and vacuum hose.

Can the display show metric units?
No. The 30-0309 is an SAE-only gauge; its reversible faceplate carries SAE scaling only.
