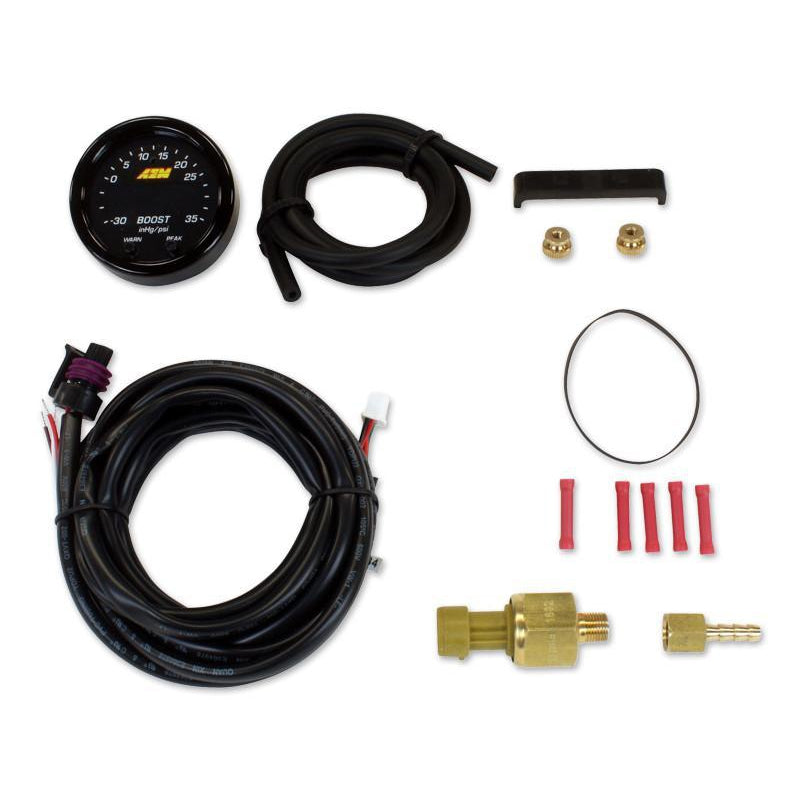

X-Series Boost Pressure Gauge -30inHg to 35psi

• Universal

The AEM X-Series Boost Pressure Gauge is a universal 52mm boost gauge that displays vacuum and boost from -30inHg to 35psi (-1 to 2.5 bar). The X-Series gauge has a slim 0.825 inch overall depth and a 0.200 inch cup depth, with a 0-5V analog output and an AEMnet (CAN bus) output for data logging.

• Part number: 30-0306
• Fitment: Universal
• Display range: -30inHg to 35psi / -1 to 2.5 bar
• Gauge diameter: 2-1/16 inch (52mm); bezel diameter 2.40 inch (61mm)
• Gauge depth: 0.825 inch overall; cup depth 0.200 inch
• Supply voltage: 7 VDC minimum, 18 VDC maximum
• Supply current: 50.0 mA nominal at 13.8V
• Outputs: 0-5V analog (10 bit resolution, 500 hz update rate) and AEMnet CAN 2.0B (500 kb/sec) for data logging
• Operating temperature: -4 to 185 degrees F (-20 to 85 degrees C)

Frequently Asked Questions

Does this fit my vehicle?
This is a universal-fit gauge. It fits applications where a 52mm (2-1/16 inch) gauge can be mounted and a boost pressure sensor can be connected.

What is included in the box?
This listing is for the AEM X-Series boost pressure gauge identified by part number 30-0306, with a display range of -30inHg to 35psi.

What outputs does this gauge have for data logging?
The gauge includes a 0-5V analog output and an AEMnet (CAN bus) output for use with data loggers and aftermarket engine management systems.
