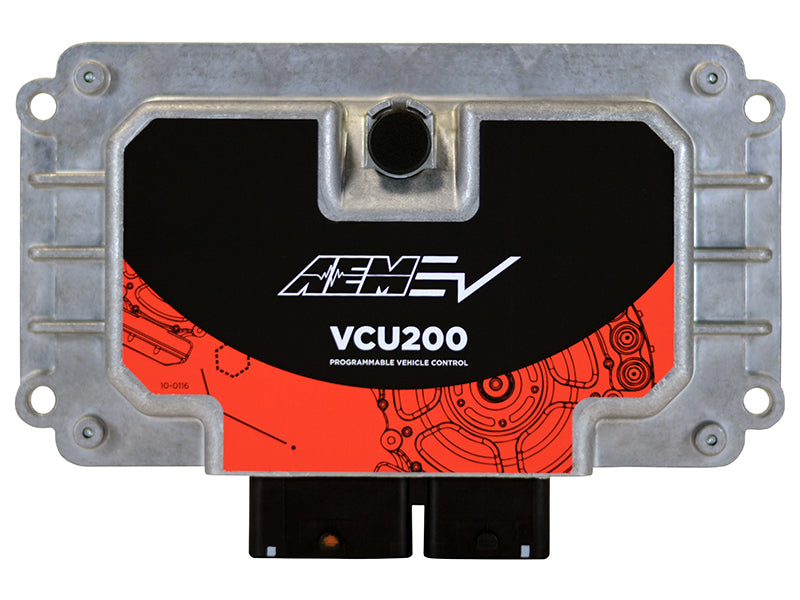

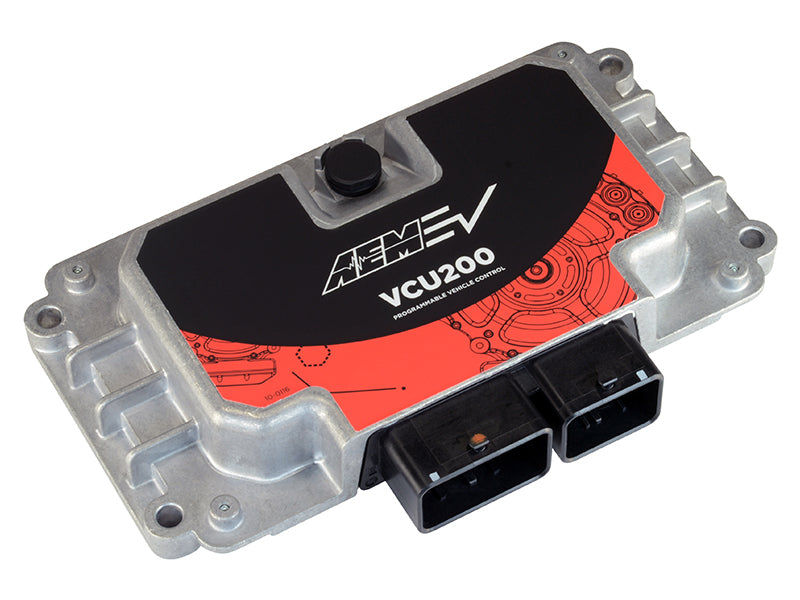

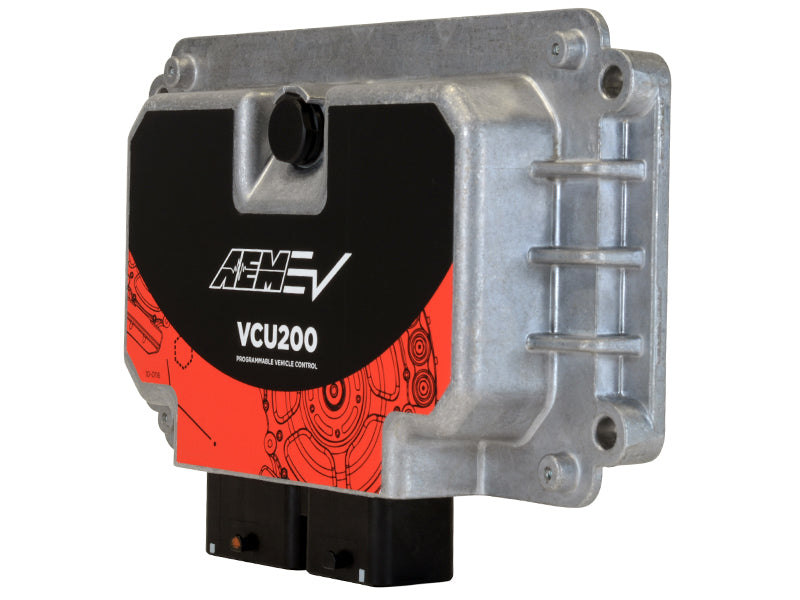

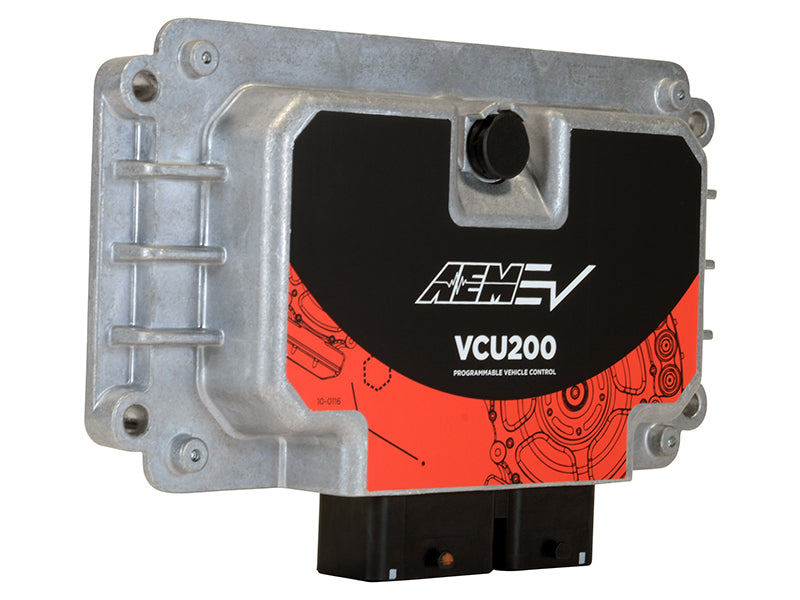

EV VCU200 Programmable Vehicle Control Unit - 80-Pin Connector, 4 CAN Networks, Single-Motor Control

• Universal

The AEM EV VCU200 Programmable Vehicle Control Unit (part number 30-8000) is a programmable electric vehicle control unit for high-performance EV street-conversion and motorsports applications. AEM EV Vehicle Control Units (VCUs) allow the calibrator to create customized torque management strategies applicable to a wide range of EV systems and component combinations. The VCU200 is built on OEM hardware and features OEM quality strategies, providing the highest level of reliability and safety for both the programmer and end-user. In its default configuration it can manage a single inverter/motor system, communicate with up to four independent CAN bus networks, and be used on direct-drive and indirect-drive EV setups.

• Part number: 30-8000
• Fitment: Universal, for electric vehicle conversions and motorsports applications

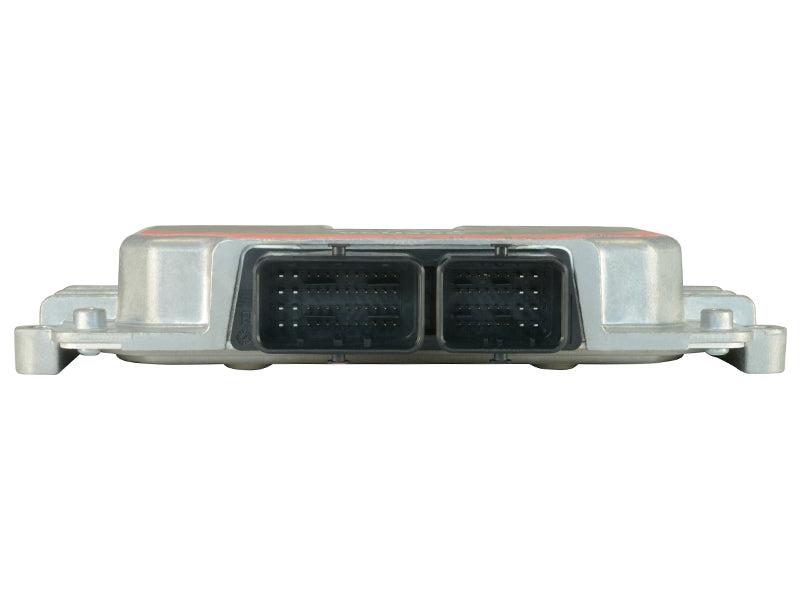

• 80-pin connector
• Can manage a single inverter/motor system
• Communicates with up to four independent CAN bus networks
• Can be used on direct-drive and indirect-drive EV setups
• Inputs: 13 analog inputs, 15 digital inputs and 4 frequency inputs
• Outputs: 12 low-side drivers, 6 high-side drivers and 4 half bridges with shunt resistors
• Input characterization including accelerator pedal, brake switch, PRND switches, and other driver/vehicle inputs
• Redundancy and arbitration features for all safety-critical inputs
• Startup and shutdown sequencing of high voltage components, including independent contactor control
• CAN message translation for BMS, inverter, PDUs, and other CAN accessories
• Motor torque management dependent on vehicle operating states and other driver-selectable modes
• Closed-loop motor speed regulation for indirect drive transmission applications
• Dynamic torque limits that maximize safety and optimize performance
• Accessory control of cooling pumps, cooling fans, lights and more
• Diagnostics and fault detection including CAN message timeouts, thermal limits, contactor, and inverter enable cross-checks
• Launch control, launch torque time, CAN-controlled cooling pump support and performance mode switching are integrated and programmable using AEMcal software

Frequently Asked Questions

Does this fit my vehicle?
Yes, as a universal-fit control unit. The VCU200 (part number 30-8000) is a programmable vehicle control unit for electric vehicle conversions and motorsports applications, and it is not vehicle-specific.

What is included in the box?
The VCU200 vehicle control unit with the 80-pin connector is included.

Is it easy to install?
The VCU200 is programmed using AEMcal software. AEMcal software for the VCU200 simplifies the calibration process by putting all of your controls in one suite.

How many motors can it control?
The VCU200 can manage a single inverter/motor system and communicate with up to four independent CAN bus networks.
