AEM EV 8-Channel CAN-Driven Power Distribution Unit (PDU-8)

Fits: Universal

Be the first one to review

Fitment

Please Note: Universal fitment for electric vehicle conversions and motorsports applications. Controlled over CAN bus by a compatible AEM ECU, VCU or dash.

Universal

Description

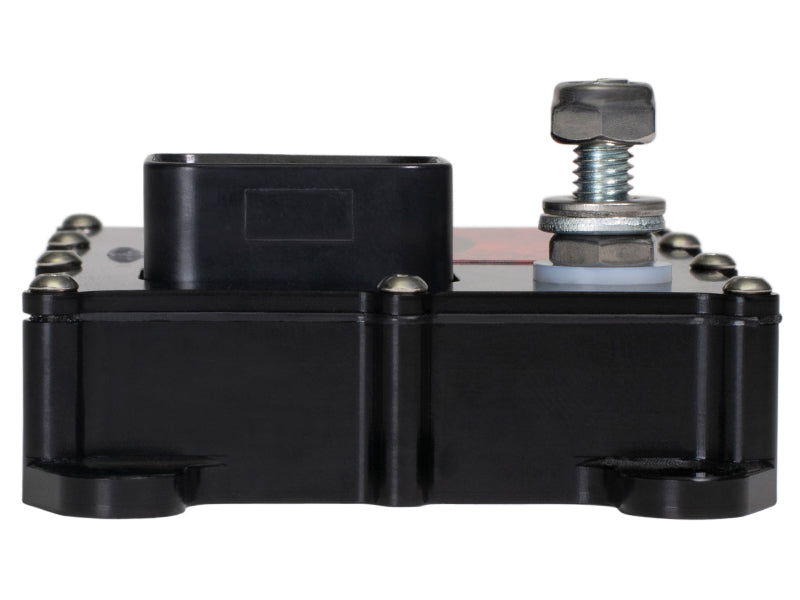

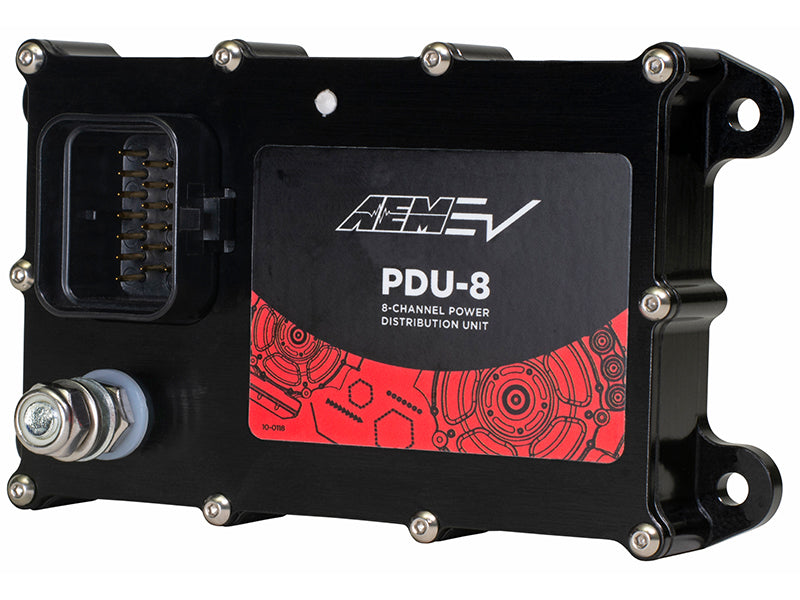

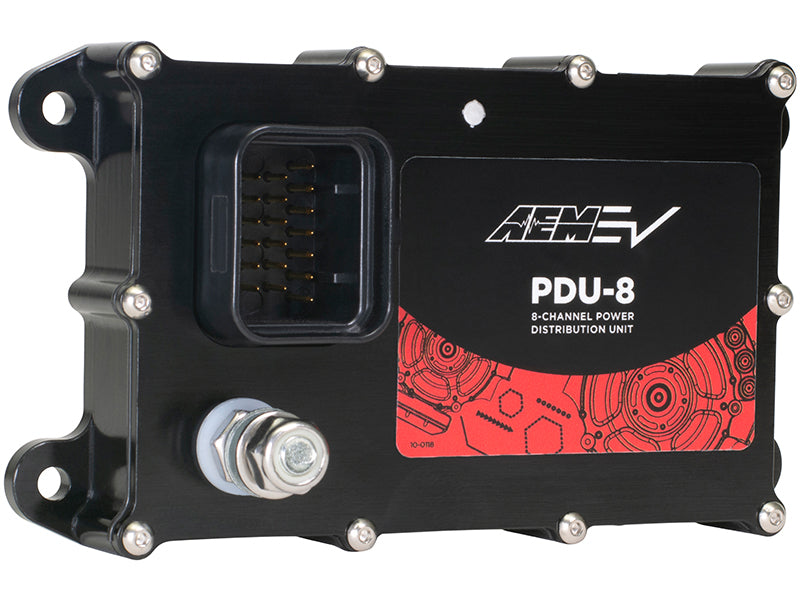

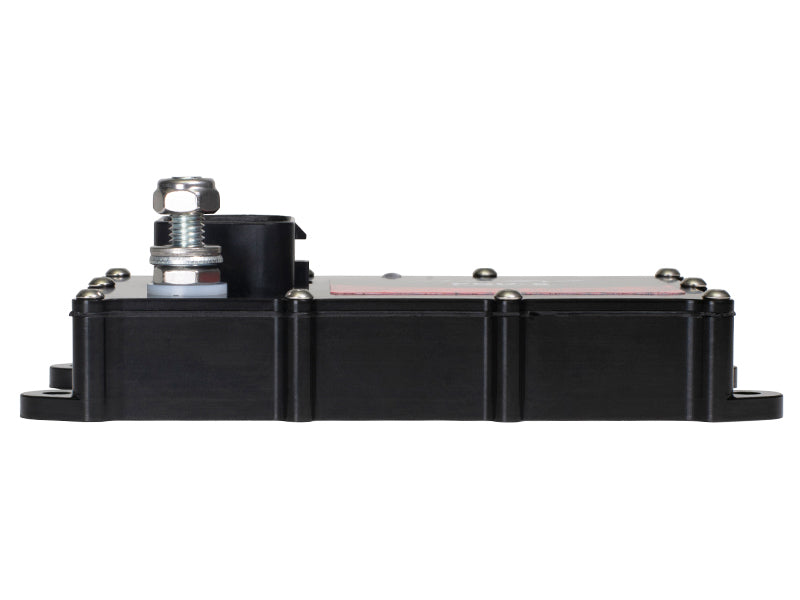

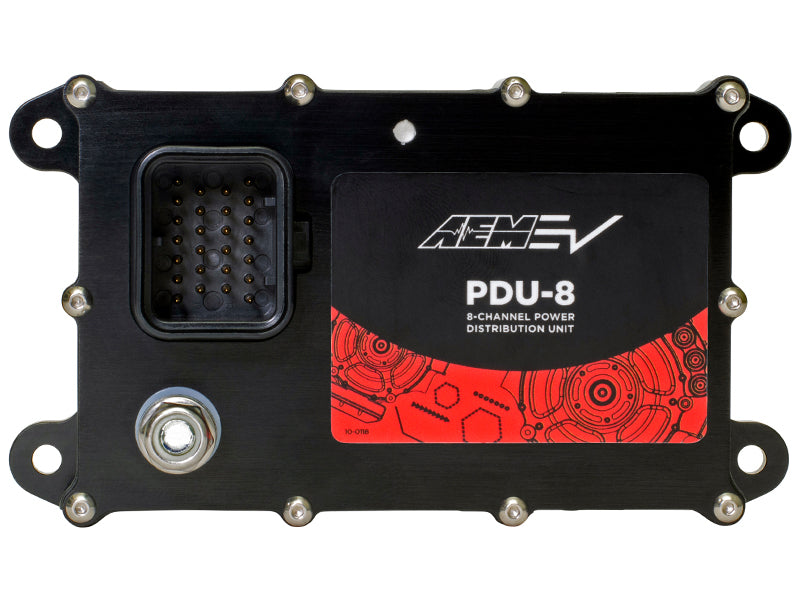

The AEM EV PDU-8 Power Distribution Unit (part number 30-8300) is an eight-channel CAN-driven power distribution unit for electric vehicle conversions, motorsports applications and internal combustion engine applications. It is an expansion device that gives you the power to program and control various switched devices using an AEM ECU or VCU, like high-voltage contactors, cooling fans, headlights, brake lights, turn signals, windshield wipers, fuel pumps, and more. Up to eight PDU-8 units can be connected on the same CAN bus network, which lets installers mount the individual PDUs closer to the subsystems they are controlling, which simplifies wiring, reduces weight, and increases reliability.

Part number: 30-8300
Fitment: Universal, for electric vehicle conversions and motorsports applications
Eight-channel power distribution unit
Four 20A and four 10A high-side 12V outputs for activating and deactivating various switched devices
CAN-commanded PDU, no logic programming required for PDU operation
CAN Bus 2.0, 500kbps, up to 8 units per network
Output duty cycle is 100hz, 0-100%
Small size and lightweight (103x67x33mm / 4.05x2.70x1.5in, 190g / 6.7oz / 0.42lbs)
Fully-sealed, waterproof billet-aluminum enclosure

Frequently Asked Questions

Does this fit my vehicle?
Yes, as a universal-fit power distribution unit. The PDU-8 (part number 30-8300) is a CAN-driven expansion device for electric vehicle conversions and motorsports applications, and it is not vehicle-specific.

What is included in the box?
The PDU-8 power distribution unit is included.

Is it easy to install?
The PDU-8 is CAN-commanded and no logic programming is required for PDU operation. It is controlled over the CAN bus by a compatible AEM ECU, VCU or dash.

What can it control?
It can program and control various switched devices like high-voltage contactors, cooling fans, headlights, brake lights, turn signals, windshield wipers and fuel pumps.
