$1,399.00
SKU: aem30-5700

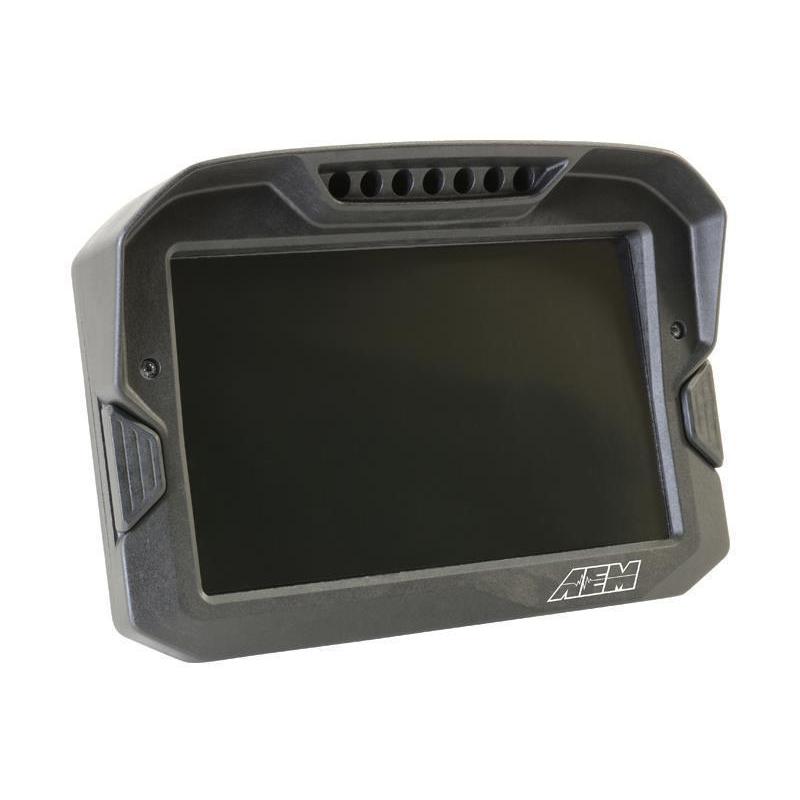

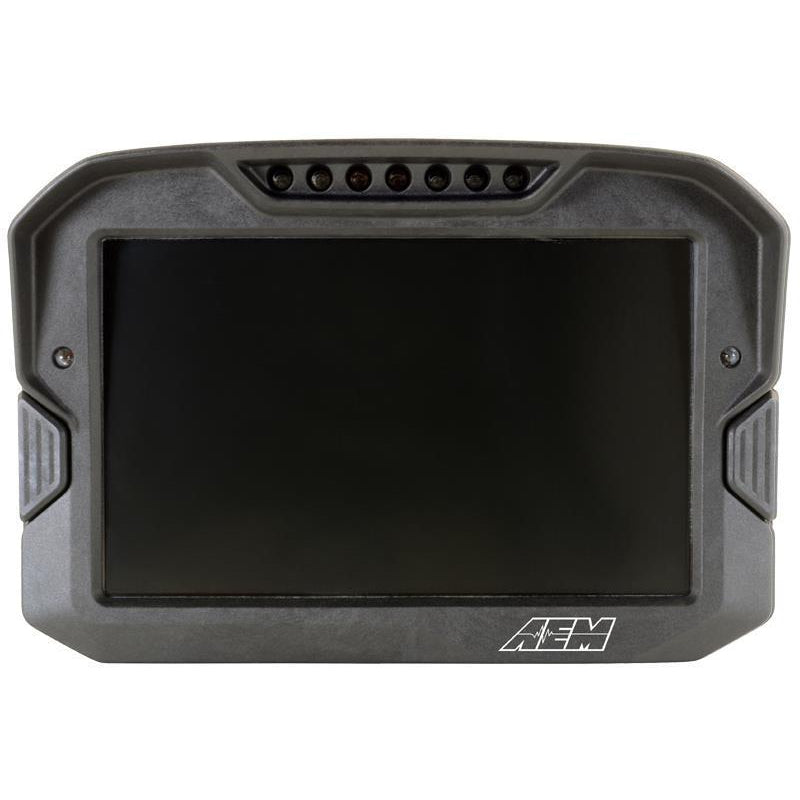

On this page, you are looking at the AEM CD-7 Carbon Digital Non-Logging Racing Dash Display. This display is protected by a carbon fiber enclosure and features a full-color daylight readable screen along with seven ultra-bright LEDs that are mounted at the top. This is a great way to monitor all the major parameters in your race car, or your street car.?

Here are the main details:

  • Full color 7" screen with 800x480 resolution
  • Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
  • Layout files interchangeable with all versions of the CD-5 Carbon
  • Wiring interface/harness is identical to the CD-5 carbon
  • Rugged, lightweight flow-molded carbon fiber composite enclosure
  • Total display weight of 20.9/595 grams
  • IP65 water resistance-open cockpit, marine and motorcycle safe
  • Accepts channels from two separate user programmable CAN bus connections-works with AEMnet enabled devices and non-AEM 3rd party devices side by side
  • Plug and play adapter cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
  • Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable
  • Install the CD-7 Carbon on carburated and pre-2008 stock ECU-equipped vehicles
  • Available with or without? 200mb internal logging
  • Available with or without onboard 20Hz GPS receiver?and antenna
  • The option is available to add an 8 channel K-type EGT CAN Module for 8 additional temps
  • Seven programmable pages including four main pages, alarm, on-change, and start-up pages
  • Dedicated alarm page layouts and input your channels and text, or create your own from scratch
  • Free DashDesign Graphics Editor software
  • Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
  • Two programmable LEDs
  • Odometer function
  • Over 200 supplied fully programmable SAE and custom warning icons
  • Headlight-in connection dims the dash and LEDs during night operation
  • Two extra switch inputs included for displaying user-triggered events for blinkers, high beams, etc
  • User-supplied?graphics?
  • Convert CAN bus channel values to user-defined text in multiple languages
  • WIRING INCLUDED
  • ?

    NOTE: This is the NON-LOGGING and NON-GPS option.?

    AEM CD-7 Non Logging Race Dash Carbon Fiber Digital Display (CAN Input Only) - Universal
