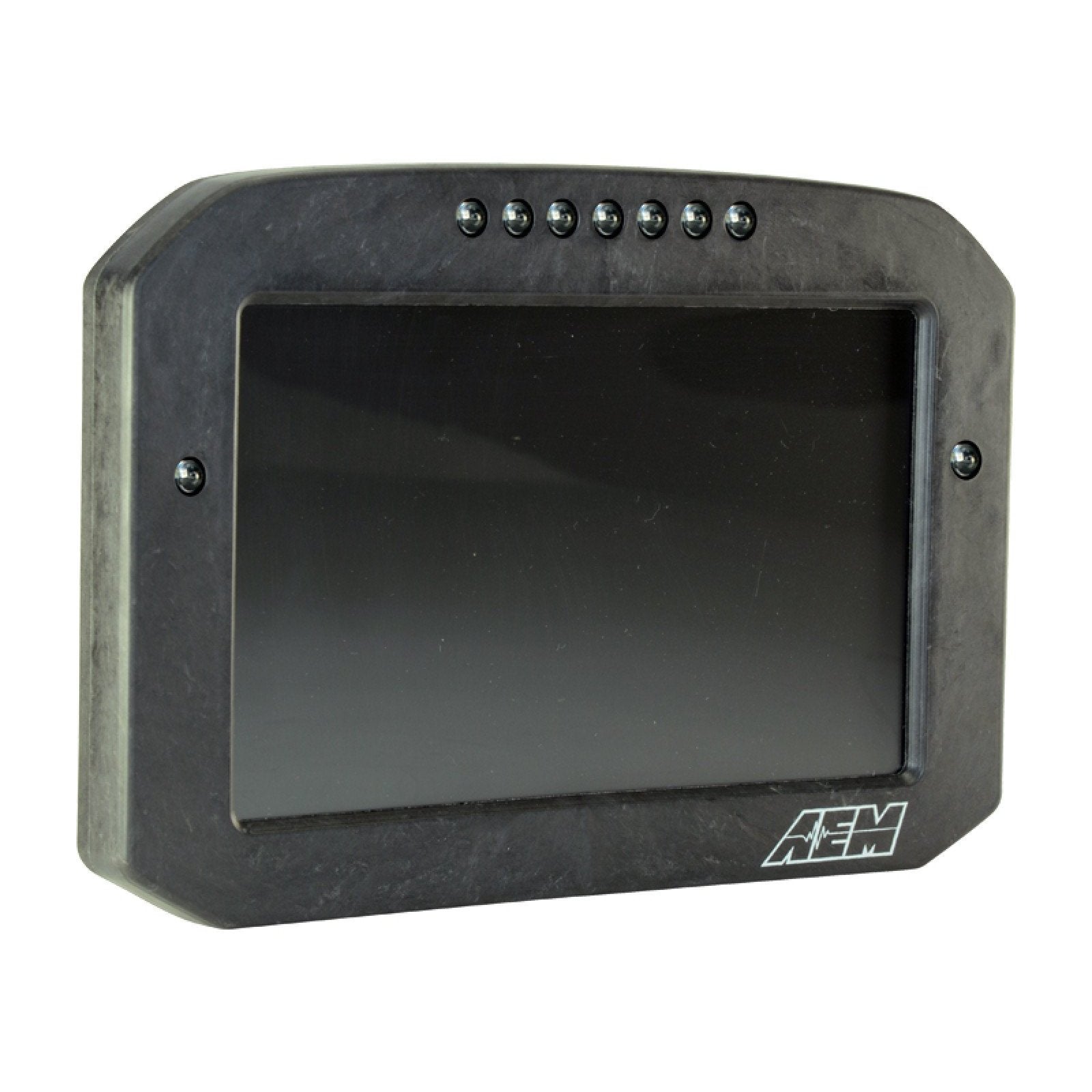

CD-7 Carbon Flat Panel Digital Racing Dash Display - Non-Logging / GPS Enabled

• Universal

The AEM CD-7 Carbon Flat Panel Digital Racing Dash Display (part number 30-5702F) is a universal digital racing dash display in a non-logging configuration and an on-board 20Hz GPS receiver and antenna. It has a compact enclosure that makes it perfect for flush mount installation or in-dash installations with tight tolerances, and it does not have buttons or an LED shade hood built into the enclosure. It has a full-color, daylight readable 7-inch screen surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing, and it receives channels from two independent CAN bus inputs without requiring special modules to read AEM and/or 3rd-party CAN signals.

• Part number: 30-5702F
• Non-Logging / GPS Enabled version of the CD-7 Carbon Flat Panel Digital Racing Dash Display
• Full color 7-inch screen with 800x480 resolution
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable between all CD Carbon Dashes
• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• IP66 water resistance — open cockpit safe
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• On-board 20Hz GPS receiver and antenna
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit part number 30-3610, sold separately)
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable), plus two programmable LEDs
• Free DashDesign Graphics Editor software
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (part number 30-2217, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (part number 30-2212, sold separately) or 6 Channel CAN Sensor Module (part number 30-2226, sold separately)

Frequently Asked Questions

Does this dash fit my vehicle?
Yes — this is a universal digital dash display. It receives channels from two independent CAN bus inputs, communicates with 2008-up stock ECUs via the OBDII port, and can be added to carbureted and pre-2008 stock ECU-equipped vehicles with a 22 Channel CAN Sensor Module (part number 30-2212, sold separately).

Does this version log data?
No — part number 30-5702F is a non-logging version of the display.

Does this version include GPS?
Yes — part number 30-5702F includes an on-board 20Hz GPS receiver and antenna.

How do I change pages on this flat panel dash?
A remote button kit (part number 30-3610, sold separately) wires into the CD Carbon wiring harness and allows users to change pages and clear memory, because the flat panel enclosure has no built-in buttons.
