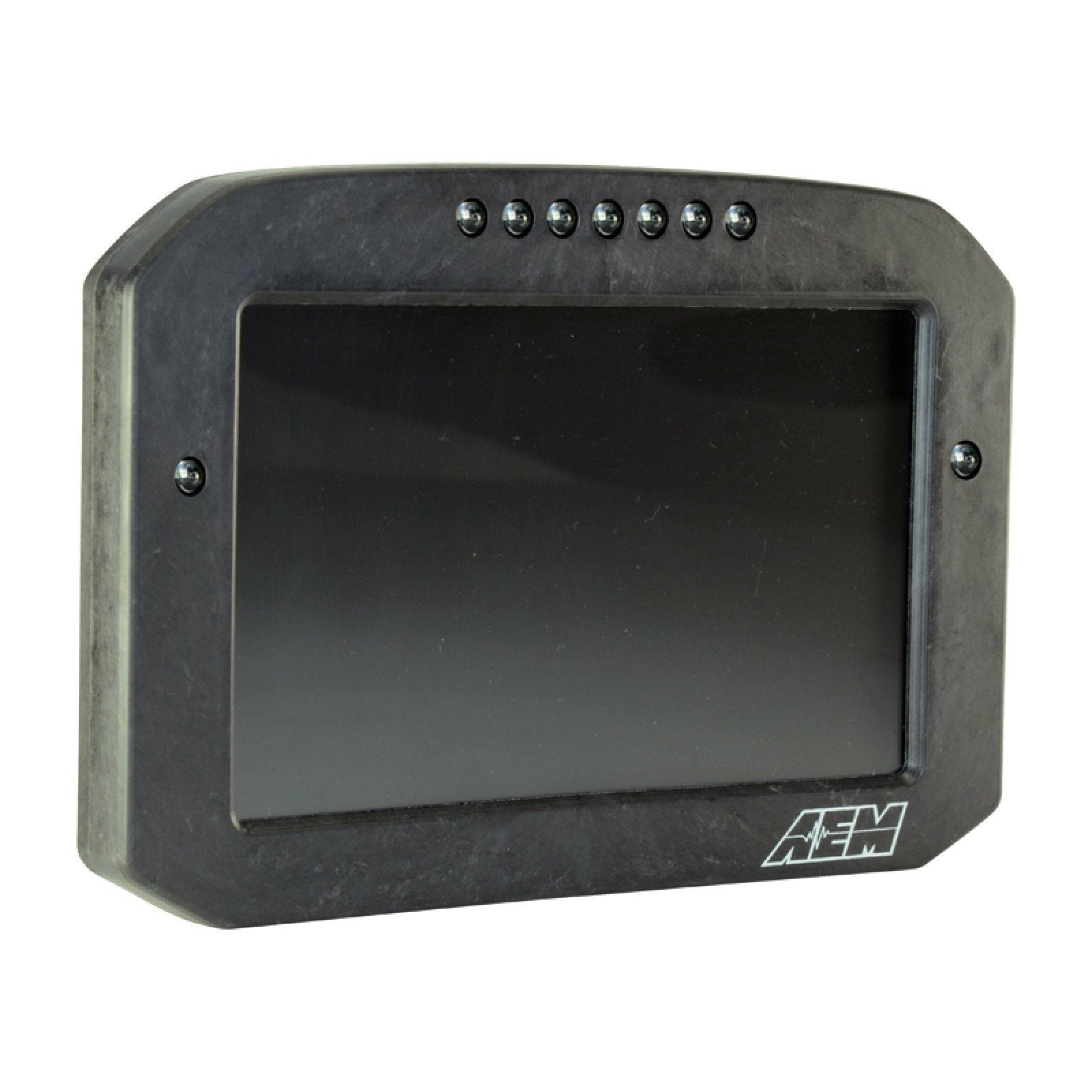

AEM CD-7 Carbon Flat Panel Digital Racing Dash Display - Logging / GPS Enabled | 30-5703F

Overview
CD-7 Carbon Flat Panel Digital Dash Displays have a compact enclosure that makes them perfect for flush mount installation or in-dash installations with tight tolerances. They include all of the robust features found in the original CD-7 Carbon Dash, but do not have buttons or an LED shade hood built into the enclosure.

CD-7 Carbon Flat Panel Digital Dash Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the enclosure and are fully programmable.

View and log data from over 250 CAN devices!
The CD-7 Carbon Flat Panel Digital Dash Display receives channels from two independent CAN bus inputs and it does not require special modules to read AEM and/or 3rd-party CAN signals. We have validated it to communicate with over 250 non-AEM devices, 2008-up stock ECUs via the OBDII port (see Supported Apps Tab), and the CD-7 Carbon Flat Panel Digital Dash Display can be added to any vehicle with the addition of our 22 Channel CAN Sensor Module. The CD-7 Carbon Flat Panel Digital Dash Display is ECU CAN ready and does not require external modules for CAN to CAN communication, just load your configuration and go! All channels can be named in virtually any language so that the information displayed makes sense to the user when displayed, whether on the main screens or warning alerts.

Third-party systems will require download of 3rd party DBC CAN bus protocol files for proper operation if they are not included in our setup software. We currently have over 250 validated 3rd party applications, and include a CD Dash Power Cable to simplify the installation of 3rd party devices. We have also developed 3rd Party Plug & Play Adapter Cables for certain applications, please contact AEM for a full list of supported applications.

This listing is for the :

PN 30-5703F, CD-7FLG Carbon Flat Panel Logging Display with Internal GPS

Features

Full color 7” screen with 800x480 resolution
Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
Layout files interchangeable between all CD Carbon Dashes
Wiring interface/harnesses are identical between all CD Carbon Dashes
Rugged, lightweight flow-molded carbon fiber composite enclosure
IP66 water resistance – open cockpit safe
Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
Use the included page layouts and input your channels and text, or create your own from scratch
Free DashDesign Graphics Editor software
Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
Two programmable LEDs
Odometer function
Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
‘Headlight-in’ connection dims the dash and LEDs during night operation
Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
User supplied graphics can be changed based on channel values (up to the full screen size)
Convert CAN bus channel values to user-defined text
Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
Install 8 additional temp inputs and send them to the CD-7 Carbon with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
Available with or without 200Mb internal logging (up to 1,000Hz/channel)
Available with or without onboard 20 Hz GPS receiver and antenna
Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
