CD-7 Carbon Digital Racing Dash Display - Non-Logging / Non-GPS

• Universal

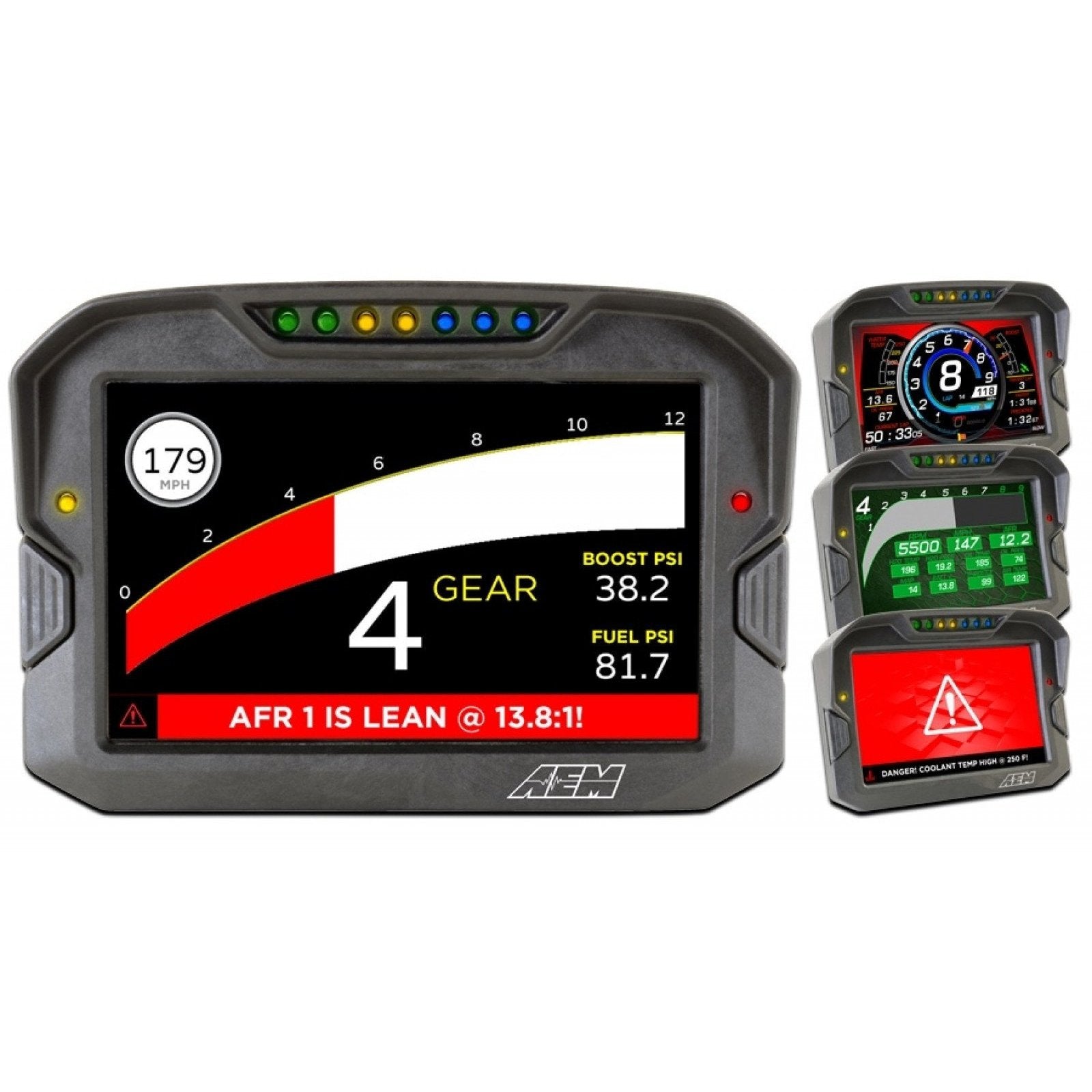

The AEM CD-7 Carbon Digital Racing Dash Display (part number 30-5700) is a universal digital racing dash display in a non-logging configuration. It has a full-color, daylight readable 7-inch screen surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing, and it receives channels from two independent CAN bus inputs without requiring special modules to read AEM and/or 3rd-party CAN signals.

• Part number: 30-5700
• Non-Logging / Non-GPS version of the CD-7 Carbon Digital Racing Dash Display
• Full color 7-inch screen with 800x480 resolution
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable between all CD Carbon Dashes
• Wiring interface/harnesses are identical between all CD Carbon Dashes
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Total display weight of 20.9 oz. / 595 grams
• IP65 water resistance — open cockpit, marine and motorcycle safe
• Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Two large buttons on the face of the display for page changing and memory resetting
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable), plus two programmable LEDs
• Free DashDesign Graphics Editor software
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (part number 30-2217, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (part number 30-2212, sold separately) or 6 Channel CAN Sensor Module (part number 30-2226, sold separately)
• Add a Vehicle Dynamics Module (part number 30-2206, sold separately) for GPS, 3-axis gyroscope and 3-axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing

Frequently Asked Questions

Does this dash fit my vehicle?
Yes — this is a universal digital dash display. It receives channels from two independent CAN bus inputs, communicates with 2008-up stock ECUs via the OBDII port, and can be added to carbureted and pre-2008 stock ECU-equipped vehicles with a 22 Channel CAN Sensor Module (part number 30-2212, sold separately).

Does this version log data?
No — part number 30-5700 is a non-logging version of the display.

Does this version include GPS?
No — part number 30-5700 does not include GPS. A Vehicle Dynamics Module (part number 30-2206, sold separately) can be added for GPS, track mapping and lap timing.

What is included in the box?
1 dash display is included. The OBDII CAN Adapter Cable (part number 30-2217), CAN Sensor Modules and Vehicle Dynamics Module are sold separately.
