CD-5 Carbon Digital Racing Dash Display - Logging

• Universal

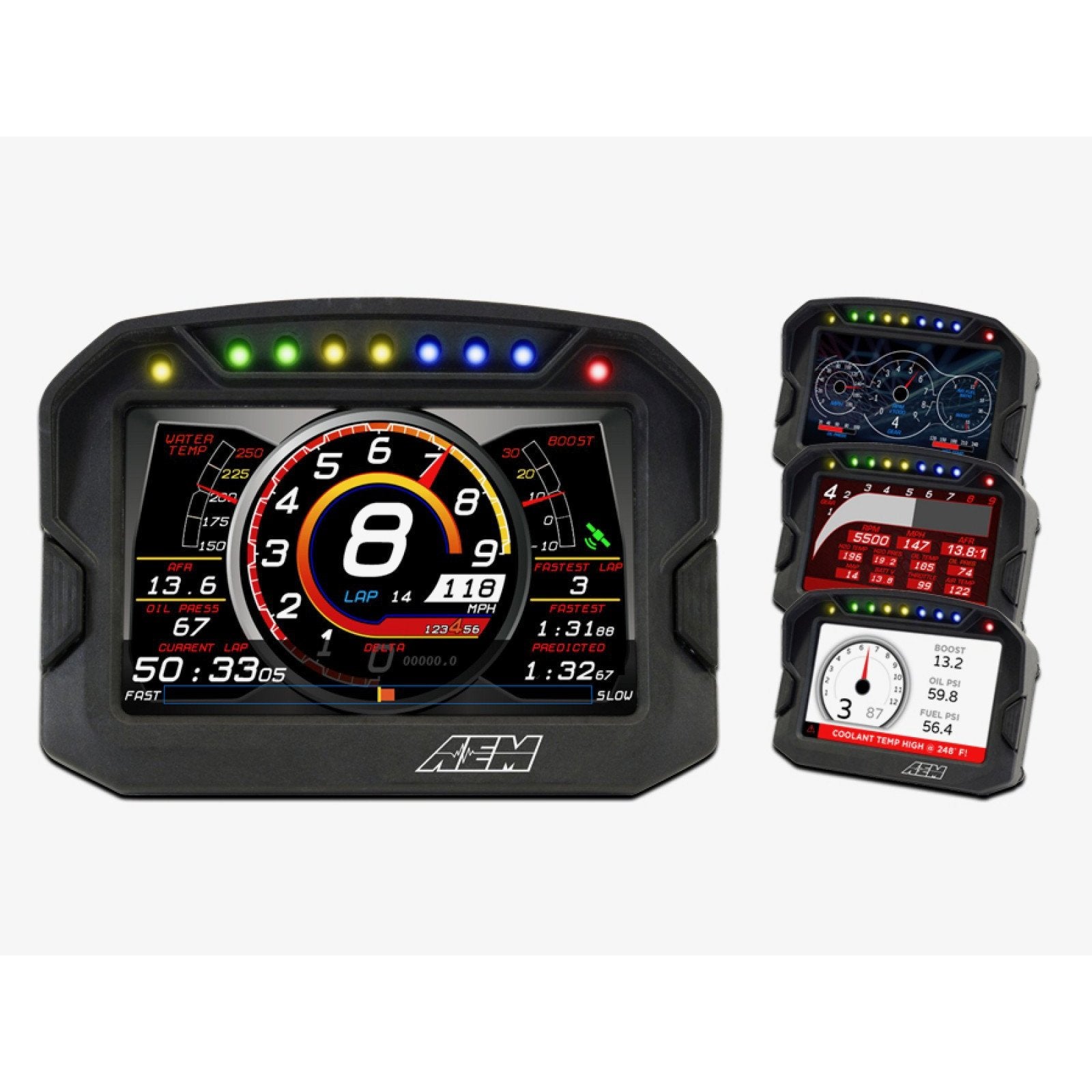

The AEM CD-5 Carbon Digital Racing Dash Display (part number 30-5601) is the logging version of the CD-5 Carbon display, with 200Mb internal logging (up to 1,000Hz/channel). It has a full-color, daylight readable 5-inch screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing, and seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. The CD-5 Carbon receives channels from two independent CAN bus inputs and does not require special modules to read AEM and/or 3rd-party CAN signals; it has been validated to communicate with over 250 non-AEM devices and 2008-up stock ECUs via the OBDII port.

• Part number: 30-5601
• Logging version with 200Mb internal logging (up to 1,000Hz/channel)
• Full color 5-inch screen with 800x480 resolution
• Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
• Layout files interchangeable with all versions of the CD-7
• Wiring interface/harness is identical to the CD-7
• Rugged, lightweight flow-molded carbon fiber composite enclosure
• Total display weight of 11.7 oz. / 331 grams
• IP66 water resistance allows for operation in boats and motorcycles without worry
• Accepts channels from two separate user programmable CAN bus connections — works with AEMnet enabled devices and non-AEM 3rd party devices side by side
• Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
• Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable), plus two programmable LEDs
• Two large buttons on the face of the display for page changing and memory resetting, with button functions also included in the supplied rear connector for remote buttons
• Free DashDesign Graphics Editor software
• Odometer function
• Over 200 supplied fully programmable SAE and custom warning icons
• Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (part number 30-2217, sold separately)
• Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (part number 30-2212, sold separately)
• Add a Vehicle Dynamics Module (part number 30-2206, sold separately) for GPS, 3-axis gyroscope and 3-axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing

Frequently Asked Questions

Does this dash fit my vehicle?
Yes — this is a universal digital dash display. It receives channels from two independent CAN bus inputs, communicates with 2008-up stock ECUs via the OBDII port, and can be added to any vehicle with the addition of a 22 Channel CAN Sensor Module (part number 30-2212, sold separately).

Does this version log data?
Yes — part number 30-5601 is the logging version of the CD-5 Carbon display, with 200Mb internal logging at up to 1,000Hz per channel.

What is included in the box?
1 CD-5 Carbon digital dash display is included. The OBDII CAN Adapter Cable (part number 30-2217), 22 Channel CAN Sensor Module (part number 30-2212) and Vehicle Dynamics Module (part number 30-2206) are sold separately.
