75 PSIa / 5 Bar Stainless Steel Pressure Sensor Kit | 30-2130-75

• Universal

Stainless steel sensors are recommended when the greatest accuracy is required, for example to measure manifold air pressure. AEM's sensor kits contain everything you need to mount a sensor, including connector, pins and 1/8 NPT fittings.

Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -40C to 105C / -40F to 221F
Burst Pressure: 500PSI
Response Time: < 1ms
Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
Sensor Body: Stainless Steel
Wetted Materials: 304L & 316L Stainless Steel
Thread: 1/8" NPT Male Thread
Weight: < 85 Grams
Supply Current:
Output: .5 to 4.5Vdc Linear
Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock

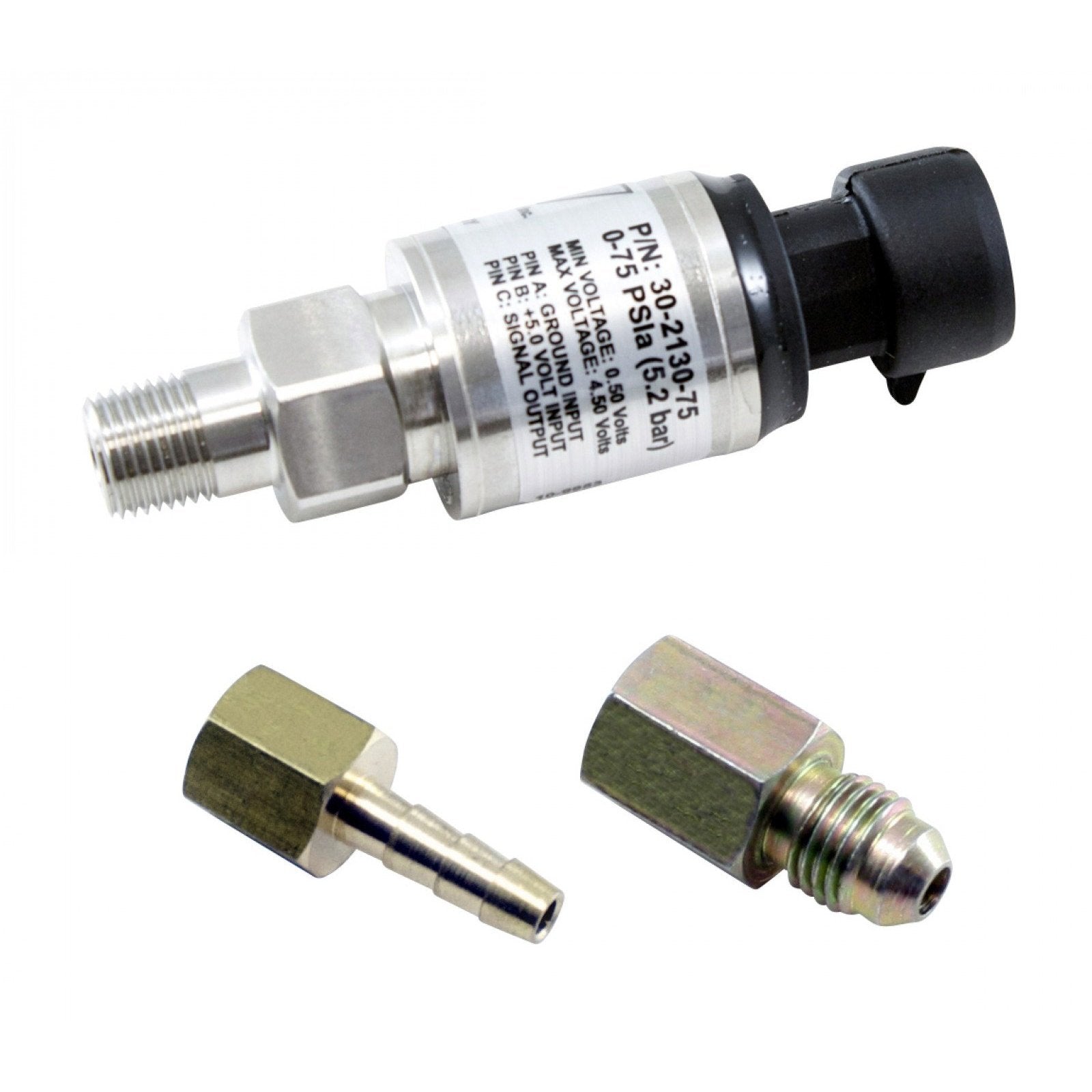

Includes: 75 PSIa or 5 Bar Stainless Sensor, Connector, Pins, Pin Lock, 1/8" NPT to -4 Adapter & 1/8" NPT to 3/16" Barb Adapter
