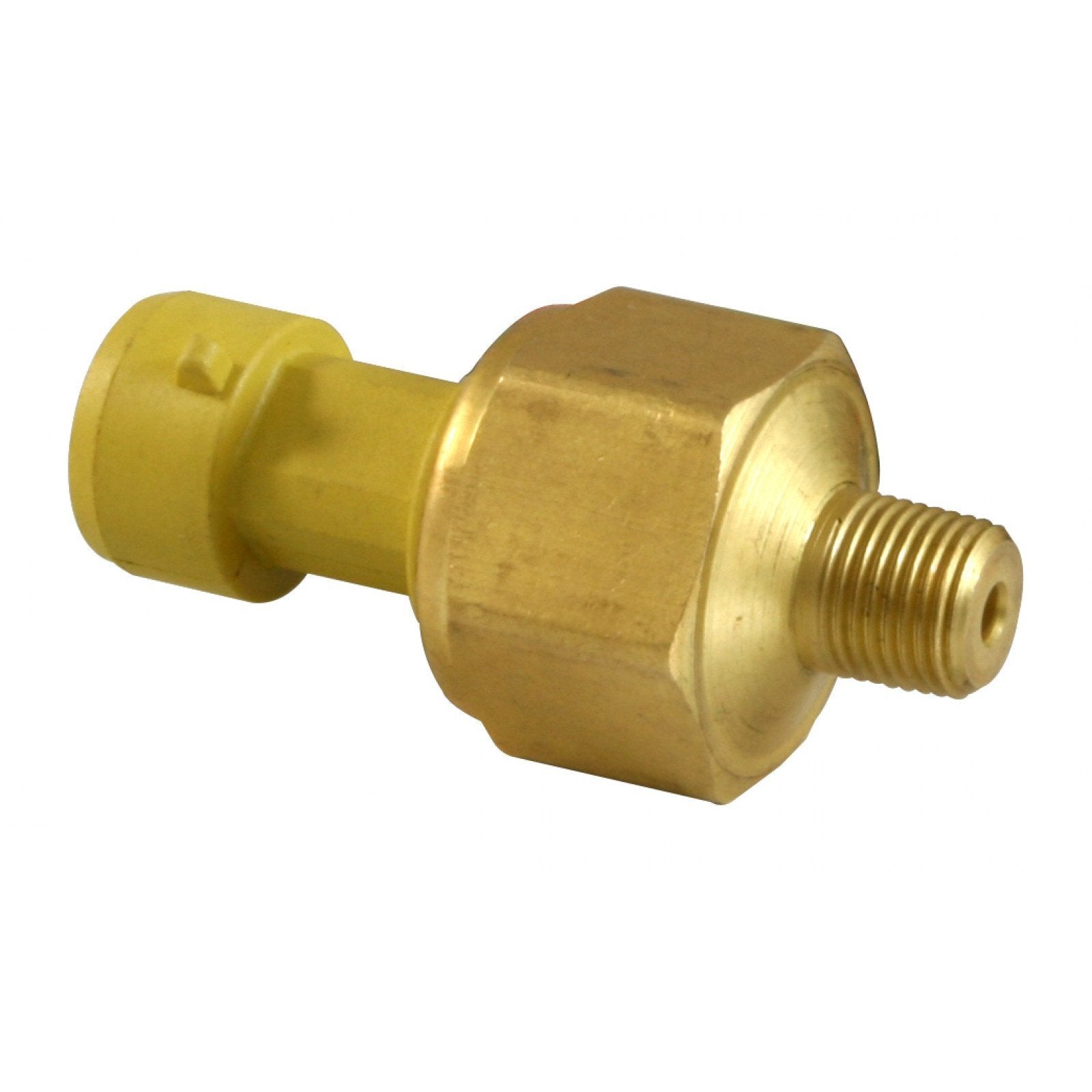

75 PSIa / 5 Bar Brass Pressure Sensor Kit | 30-2131-75

• Universal

Brass sensors are a more economical choice usable in many applications where extreme accuracy isn't required and +/- 3% accuracy vs. stainless steel's +/- 1% is appropriate. AEM's brass sensor kits contain the sensor, connector and pins.

Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
Operating Temp: -40C to 105C / -40F to 221F
Burst Pressure: 150PSI
Response Time: < 1ms
Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
Sensor Body: Stainless Steel
Wetted Materials: 304L & 316L Stainless Steel
Thread: 1/8" NPT Male Thread
Weight: < 85 Grams
Supply Current:
Output: .5 to 4.5Vdc Linear
Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
Includes: 75 PSIa or 5Bar Stainless Sensor, Connector, Pins & Pin Lock
