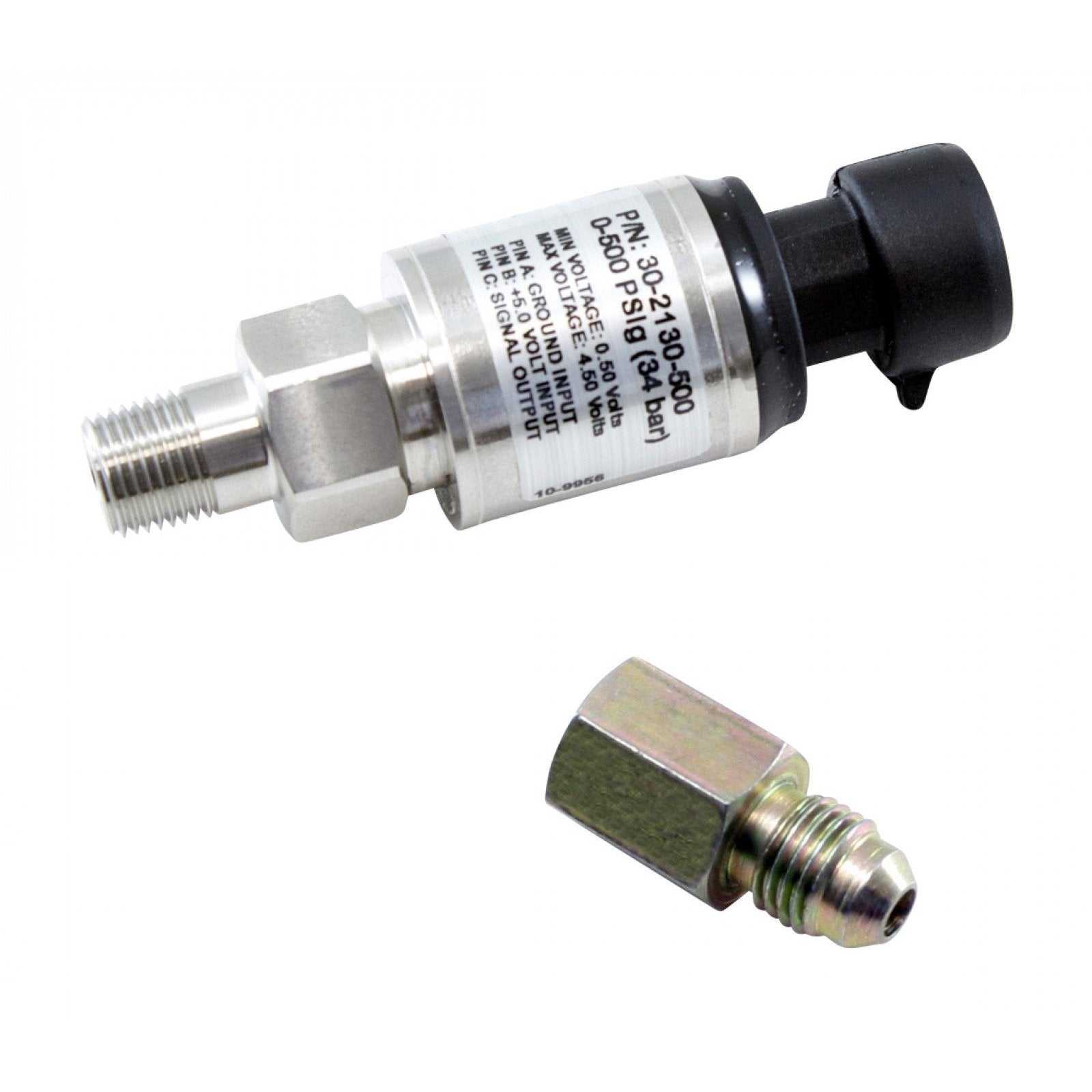

500 PSIg Stainless Steel Pressure Sensor Kit

• Universal

The AEM 500 PSIg Stainless Steel Pressure Sensor Kit is a universal stainless steel pressure sensor kit for measuring pressure with AEM gauges, data loggers and engine management systems. Stainless steel sensors are recommended when the greatest accuracy is required, for example to measure manifold air pressure.

• Part number: 30-2130-500
• Fitment: Universal
• Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
• Operating Temp: -40C to 105C / -40F to 221F
• Burst Pressure: 5,000PSI
• Response Time: < 1ms
• Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
• Sensor Body: Stainless Steel
• Wetted Materials: 304L & 316L Stainless Steel
• Thread: 1/8" NPT Male Thread
• Weight: < 85 Grams
• Output: .5 to 4.5Vdc Linear
• Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
• Includes: 500 PSIg Stainless Sensor, Connector, Pins, Pin Lock, 1/8" NPT to -4 Adapter

Frequently Asked Questions

Does this fit my vehicle?
This is a universal pressure sensor kit; it is not vehicle specific and uses a 1/8" NPT male thread.

What is included in the box?
Includes: 500 PSIg Stainless Sensor, Connector, Pins, Pin Lock, 1/8" NPT to -4 Adapter.

What output does this sensor provide?
This sensor provides a .5 to 4.5Vdc linear output.
