ACT

Extreme Race Rigid 6 Pad Clutch Kit with Monoloc

Fits: 02-05 WRX

Sale price $79700 Regular price$984.00 Save $187
Earn $15.94 In JDMuscle Rewards!
Profile Avatar

Talk to an Enthusiast

Verify Fitment & Product Recommendations

M-F 9:00AM - 6:00PM

Special Order: Lead time applies. No Cancellation

Pay over time available · Est. $24.91/payment
ⓘ

Illustrative estimate only, not a financing quote or guaranteed offer. Actual payments, frequency and terms vary by provider and eligibility. Taxes, shipping and add-ons are excluded.

Pay over time available · Est. $24.91/payment
ⓘ

Illustrative estimate only, not a financing quote or guaranteed offer. Actual payments, frequency and terms vary by provider and eligibility. Taxes, shipping and add-ons are excluded.

ACT Extreme Race Rigid 6 Pad Clutch Kit with Monoloc
Fits: 02-05 WRX
Be the first one to review

Fitment

Please Note: ACT note: Includes ACT Monoloc Subaru WRX 2002-2005 Fits 1991-1994 Legacy Sport, 2004-2005 Baja Turbo, 2004-2005 Forester XT (2005 XT Premium), 2007-2009 Legacy GT spec.B Also fits Impreza GT, WRX [JDM] 1993-2000 and WRX [JDM] 2001-2005
  • 2002-2005 Subaru | WRX

Description

ACT Extreme Race Rigid 6 Pad Clutch Kit with Monoloc (SB9-XTR6)

Note: Includes ACT Monoloc.

SB9-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

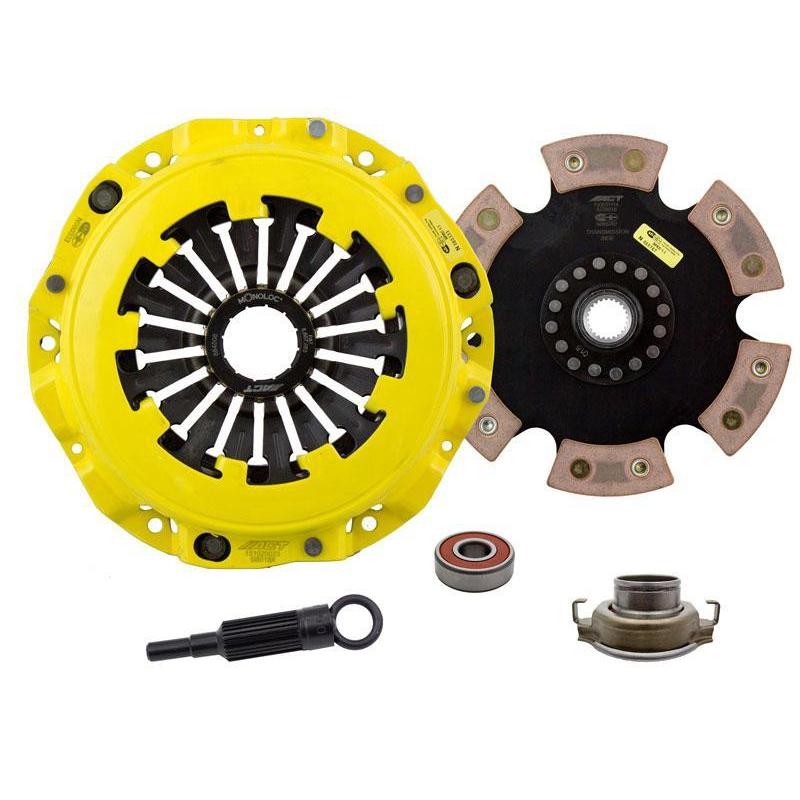

Kit contents

  • SB018X - ACT Extreme Clutch Pressure Plate
  • 6228018 - ACT 6 Pad Rigid Race Clutch Disc
  • RB601 - ACT Clutch Release Bearing
  • PB1004 - ACT Clutch Pilot Bearing
  • AT90 - ACT Clutch Alignment Tool

Specifications

  • Product weight (lbs.): 15.4
  • Torque capacity (ft/lbs.): 654
  • Torque capacity over OE: 92%
  • Disc material: Ceramic
  • Clutch disc diameter (in.): 9
  • Clutch disc diameter (mm): 228
  • Input shaft diameter (in.): 1
  • Pressure plate type: Xtreme
  • Warranty: 12 months

Characteristics

  • Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle, confidence during hard shifts
  • Life: Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life, rigid design may increase spline wear
  • Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism
  • Recommended Use: Recommended for race use only
  • ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Fitment

  • 2002-2005 Subaru WRX
  • 1991-1994 Subaru Legacy Sport
  • 2004-2005 Subaru Baja Turbo
  • 2004-2005 Subaru Forester XT (2005 Forester XT Premium)
  • 2007-2009 Subaru Legacy GT spec.B
  • Subaru Impreza GT, WRX [JDM] 1993-2000; WRX [JDM] 2001-2005

Q: Which vehicles does it fit?
A: It fits 2002-2005 Subaru WRX, 1991-1994 Legacy Sport, 2004-2005 Baja Turbo, 2004-2005 Forester XT, and 2007-2009 Legacy GT spec.B, plus JDM Impreza GT/WRX 1993-2005.

Q: What is included?
A: SB018X - ACT Extreme Clutch Pressure Plate; 6228018 - ACT 6 Pad Rigid Race Clutch Disc; RB601 - ACT Clutch Release Bearing; PB1004 - ACT Clutch Pilot Bearing; AT90 - ACT Clutch Alignment Tool.

Q: What use is it recommended for?
A: ACT: Recommended for race use only.

Q: Is there an ACT note?
A: ACT: Includes ACT Monoloc.

Q: What is its torque capacity?
A: 654 ft/lbs.
