ACT Extreme Race Sprung 6 Pad Clutch Kit with Monoloc (SB10-XTG6)
Note: Includes ACT Monoloc.
SB10-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

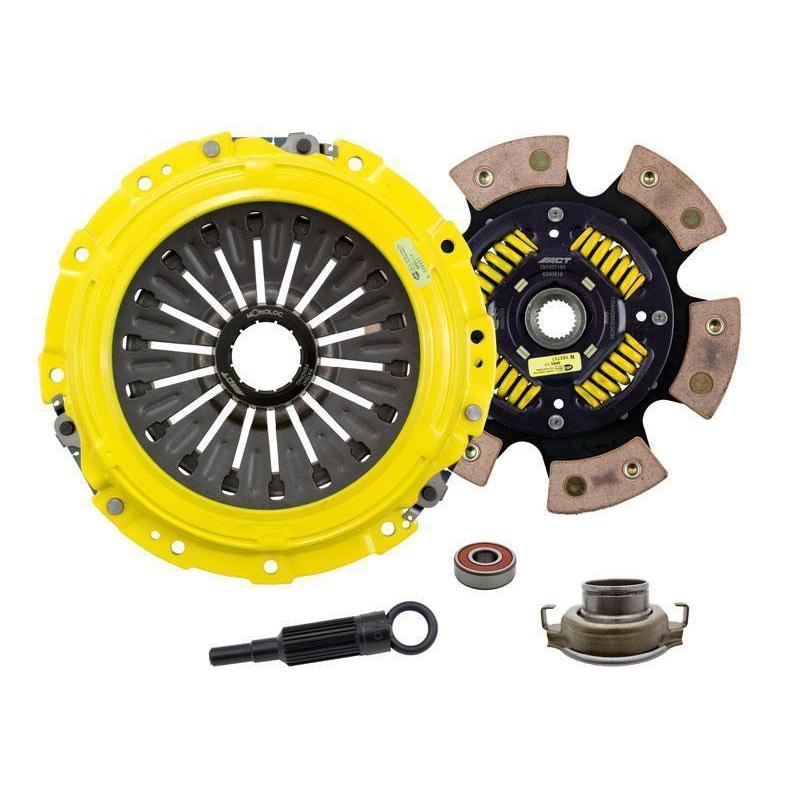

Kit contents
- SB019X - ACT Extreme Clutch Pressure Plate
- 6240618 - ACT 6 Pad Sprung Race Clutch Disc
- PB1004 - ACT Clutch Pilot Bearing
- AT90 - ACT Clutch Alignment Tool
- RB601 - ACT Clutch Release Bearing
Specifications
- Product weight (lbs.): 18.5
- Torque capacity (ft/lbs.): 766
- Torque capacity over OE: 115%
- Disc material: Ceramic
- Clutch disc diameter (in.): 9.4
- Clutch disc diameter (mm): 240
- Input shaft diameter (in.): 1
- Pressure plate type: Xtreme
- Warranty: 12 months
Characteristics
- Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts
- Life: Moderate friction life, extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life
- Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance, major improvement in release mechanism
- Recommended Use: Recommended for high horsepower street or race use
- ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc
Fitment
- 2004-2014 Subaru Impreza WRX STI (Limited 2007, 2011-2014; Special Edition 2010)
- 2013-2021 Subaru WRX STI (Base 2013-2021; Limited 2015-2021; Sport-tech 2013-2014, 2017-2021; Sport 2017-2021; special editions)
- 2007-2009 Subaru Legacy GT spec.B
- Subaru Impreza WRX STI [JDM] 2002-2005
Q: Best high horsepower clutch kit for a 2004-2021 Subaru WRX STI?
A: The ACT SB10-XTG6 Extreme Race Sprung 6 Pad Clutch Kit with Monoloc is recommended for high horsepower street or race use and fits 2004-2014 Subaru Impreza WRX STI (Limited 2007, 2011-2014; Special Edition 2010) and 2013-2021 Subaru WRX STI (Base 2013-2021; Limited 2015-2021; Sport-tech 2013-2014, 2017-2021; Sport 2017-2021; special editions incl. Type RA 2018).
Q: Does the ACT SB10-XTG6 clutch kit include a Monoloc for a 2004-2021 Subaru WRX STI?
A: Yes. It includes ACT Monoloc, a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches.
Q: What comes in the ACT SB10-XTG6 clutch kit for a 2004-2021 Subaru WRX STI?
A: It includes SB019X - ACT Extreme Clutch Pressure Plate; 6240618 - ACT 6 Pad Sprung Race Clutch Disc; PB1004 - ACT Clutch Pilot Bearing; AT90 - ACT Clutch Alignment Tool; RB601 - ACT Clutch Release Bearing.
Q: Will the ACT SB10-XTG6 fit a 2007-2009 Subaru Legacy GT spec.B?
A: Yes. It fits the 2007-2009 Subaru Legacy GT spec.B. It also fits the JDM Subaru Impreza WRX STI 2002-2005.
Q: Is the ACT SB10-XTG6 clutch kit good for a street-driven 2004-2021 Subaru WRX STI?
A: Yes. Recommended for high horsepower street or race use. Feel: moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle, confidence during hard shifts.
Q: How much torque does the ACT SB10-XTG6 hold vs a stock 2004-2021 Subaru WRX STI clutch?
A: 766 ft/lbs. torque capacity, 115% over OE.
