Extreme Race Sprung 4 Pad Clutch Kit

ACT Extreme Race Sprung 4 Pad Clutch Kit (TC6-XTG4)

TC6-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

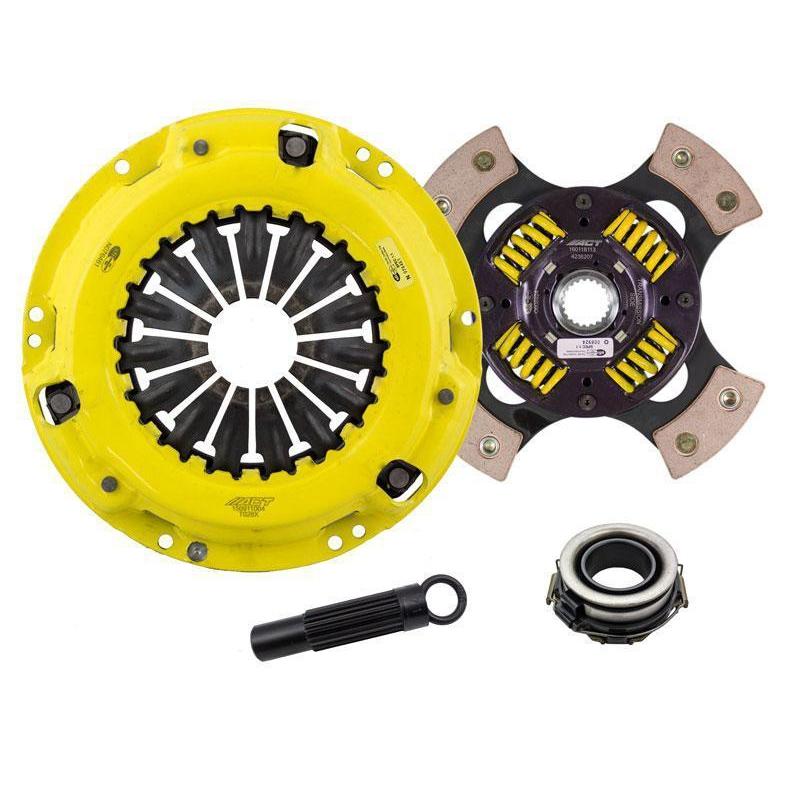

Kit contents

• T028X - ACT Extreme Clutch Pressure Plate
• 4236207 - ACT 4 Pad Sprung Race Clutch Disc
• RB219 - ACT Clutch Release Bearing
• AT71 - ACT Clutch Alignment Tool

Specifications

• Product weight (lbs.): 14.7
• Torque capacity (ft/lbs.): 500
• Torque capacity over OE: 106%
• Disc material: Ceramic
• Clutch disc diameter (in.): 9.3
• Clutch disc diameter (mm): 236
• Input shaft diameter (in.): 1.125
• Pressure plate type: Xtreme
• Warranty: 12 months

Characteristics

• Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 1988-1991 Toyota Camry DLX 2.5L V6; 1988 Camry LE 2.5L V6
• 2002-2006 Toyota Camry LE, SE 2.4L; 2005-2006 Camry Base 2.4L
• 2002-2006 Toyota Solara SE 2.4L; 2006 Solara SE Sport
• 2005-2006 Scion tC Base 2.4L

Q: Best high horsepower clutch kit for a 2005-2006 Scion tC?
A: The ACT TC6-XTG4 Extreme Race Sprung 4 Pad Clutch Kit is recommended for high horsepower street or race use and fits the 2005-2006 Scion tC Base 2.4L. It also fits 1988-1991 Toyota Camry V6 and 2002-2006 Toyota Camry and Solara 2.4L.

Q: What comes in the ACT TC6-XTG4 clutch kit for a 2005-2006 Scion tC?
A: It includes T028X - ACT Extreme Clutch Pressure Plate; 4236207 - ACT 4 Pad Sprung Race Clutch Disc; RB219 - ACT Clutch Release Bearing; AT71 - ACT Clutch Alignment Tool.

Q: Is the ACT TC6-XTG4 clutch kit good for a street-driven 2005-2006 Scion tC?
A: Yes. Recommended for high horsepower street or race use. Feel: moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.

Q: How much torque does the ACT TC6-XTG4 hold vs a stock 2005-2006 Scion tC clutch?
A: 500 ft/lbs. torque capacity, 106% over OE.
