Extreme Race Rigid 4 Pad Clutch Kit

ACT Extreme Race Rigid 4 Pad Clutch Kit (TC8-XTR4)

TC8-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

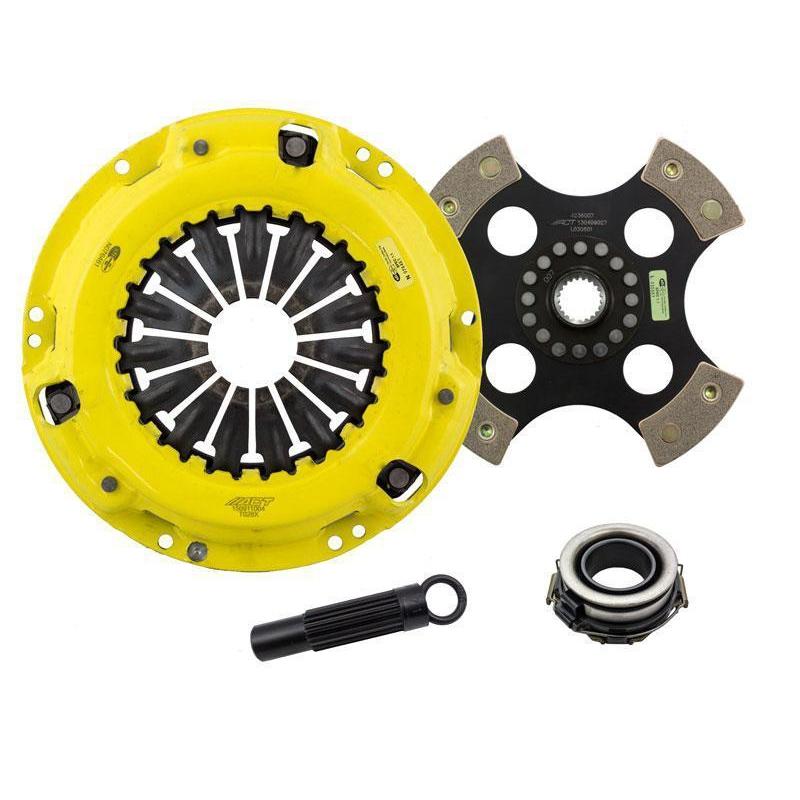

Kit contents

• T028X - ACT Extreme Clutch Pressure Plate
• 4236008 - ACT 4 Pad Rigid Race Clutch Disc
• AT116 - ACT Clutch Alignment Tool

Specifications

• Product weight (lbs.): 12.8
• Torque capacity (ft/lbs.): 500
• Torque capacity over OE: 106%
• Disc material: Ceramic
• Clutch disc diameter (in.): 9.3
• Clutch disc diameter (mm): 236
• Input shaft diameter (in.): 1
• Pressure plate type: Xtreme
• Warranty: 12 months

Characteristics

• Feel: Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for race use only
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 2011-2016 Scion tC Base 2.5L
• 2010-2011 Toyota Camry 2.5L (Base, LE, SE)

Q: Best race clutch kit for a 2011-2016 Scion tC?
A: The ACT TC8-XTR4 Extreme Race Rigid 4 Pad Clutch Kit is recommended for race use only and fits the 2011-2016 Scion tC Base 2.5L. It also fits the 2010-2011 Toyota Camry 2.5L (Base, LE, SE).

Q: What comes in the ACT TC8-XTR4 clutch kit for a 2011-2016 Scion tC?
A: It includes T028X - ACT Extreme Clutch Pressure Plate; 4236008 - ACT 4 Pad Rigid Race Clutch Disc; AT116 - ACT Clutch Alignment Tool.

Q: Is the ACT TC8-XTR4 clutch kit meant for street or race use on a 2011-2016 Scion tC?
A: Recommended for race use only. Feel: moderate to heavy pedal effort, aggressive engagement, increased gear rattle.

Q: How much torque does the ACT TC8-XTR4 hold vs a stock 2011-2016 Scion tC clutch?
A: 500 ft/lbs. torque capacity, 106% over OE.
