Extreme Performance Street Sprung Clutch Kit

• 2013-2016 Scion | FR-S
• 2013-2020 Subaru | BRZ
• 2017-2020 Toyota | 86

ACT Extreme Performance Street Sprung Clutch Kit (SB7-XTSS)

Note: Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).

SB7-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.

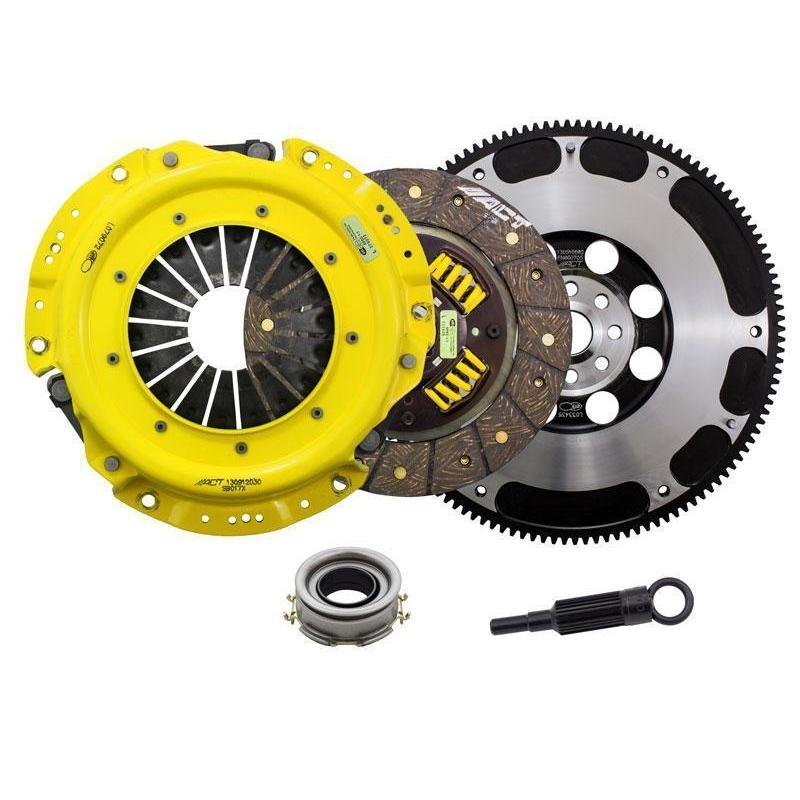

Kit contents

• 600890 - ACT XACT Streetlite Clutch Flywheel
• SB023 - ACT Heavy Duty Clutch Pressure Plate
• 3000507 - ACT Performance Street Sprung Clutch Disc
• PB1004 - ACT Clutch Pilot Bearing
• AT90 - ACT Clutch Alignment Tool
• RB004 - ACT Clutch Release Bearing

Specifications

• Product weight (lbs.): 26.2
• Torque capacity (ft/lbs.): 366
• Torque capacity over OE: 125%
• Disc material: Organic
• Clutch disc diameter (in.): 8.8
• Clutch disc diameter (mm): 224
• Input shaft diameter (in.): 1
• Pressure plate type: Xtreme
• Flywheel type: Streetlite
• Warranty: 12 months

Characteristics

• Feel: Moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle
• Life: Longer friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade
• Recommended Use: Recommended for street and race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 2013-2016 Scion FR-S Base
• 2013-2020 Subaru BRZ (Base and Limited 2013-2020; Premium 2013-2019; Sport-tech 2013-2018; Sport-tech RS 2018-2020; TS 2018 and 2020; special editions)
• 2017-2020 Toyota 86 (Base 2017-2020; GT 2018-2020; special editions)
• Toyota 86 2.0L [JDM] 2013-2020

Q: Best street clutch kit for a 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S or 2017-2020 Toyota 86?
A: The ACT SB7-XTSS Extreme Performance Street Sprung Clutch Kit is recommended for street and race use and fits the 2013-2020 Subaru BRZ (Base and Limited 2013-2020; Premium 2013-2019; Sport-tech 2013-2018; Sport-tech RS 2018-2020; TS 2018 and 2020; special editions), the 2013-2016 Scion FR-S Base and the 2017-2020 Toyota 86 (Base 2017-2020; GT 2018-2020; special editions). It also fits the Toyota 86 2.0L [JDM] 2013-2020 as a separate JDM extra.

Q: What comes in the ACT SB7-XTSS clutch kit for a 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S or 2017-2020 Toyota 86?
A: It includes 600890 - ACT XACT Streetlite Clutch Flywheel; SB023 - ACT Heavy Duty Clutch Pressure Plate; 3000507 - ACT Performance Street Sprung Clutch Disc; PB1004 - ACT Clutch Pilot Bearing; AT90 - ACT Clutch Alignment Tool; RB004 - ACT Clutch Release Bearing.

Q: Is the ACT SB7-XTSS a conversion kit with a Streetlite flywheel for a 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S or 2017-2020 Toyota 86?
A: Yes. Note: Conversion kit. Includes ACT Streetlite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).

Q: Is the ACT SB7-XTSS clutch kit good for a street-driven 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S or 2017-2020 Toyota 86?
A: Yes. Recommended for street and race use. Feel: moderate to heavy pedal effort, smooth engagement, OE to mild gear rattle.

Q: How much torque does the ACT SB7-XTSS hold vs a stock 2013-2020 Subaru BRZ, 2013-2016 Scion FR-S or 2017-2020 Toyota 86 clutch?
A: 366 ft/lbs. torque capacity, 125% over OE. Pressure plate type: Xtreme; flywheel type: Streetlite.
