Heavy Duty Race Sprung 4 Pad Clutch Kit

ACT Heavy Duty Race Sprung 4 Pad Clutch Kit (SC1-HDG4)

SC1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

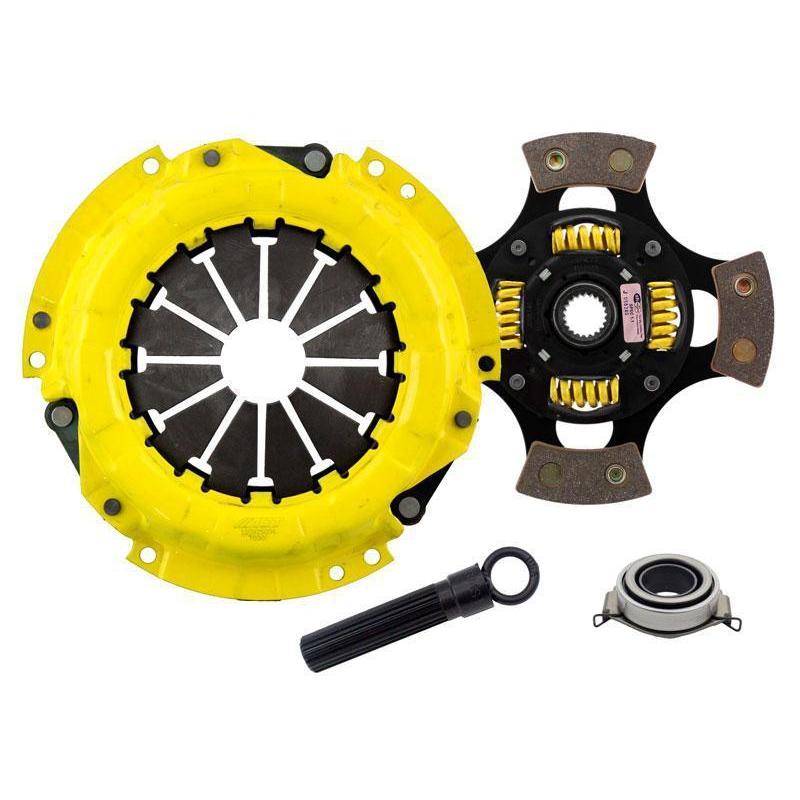

Kit contents

• T030 - ACT Heavy Duty Clutch Pressure Plate
• 4212103 - ACT 4 Pad Sprung Race Clutch Disc
• RB124 - ACT Clutch Release Bearing

Specifications

• Product weight (lbs.): 11.9
• Torque capacity (ft/lbs.): 305
• Torque capacity over OE: 69%
• Disc material: Ceramic
• Clutch disc diameter (in.): 8.3
• Clutch disc diameter (mm): 212
• Input shaft diameter (in.): 0.9375
• Pressure plate type: Heavy Duty
• Warranty: 12 months

Characteristics

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 2008-2014 Scion xD

Q: Best high horsepower clutch kit for a 2008-2014 Scion xD?
A: The ACT SC1-HDG4 Heavy Duty Race Sprung 4 Pad Clutch Kit is recommended for high horsepower street or race use and fits the 2008-2014 Scion xD (Base).

Q: What comes in the ACT SC1-HDG4 clutch kit for a 2008-2014 Scion xD?
A: It includes T030 - ACT Heavy Duty Clutch Pressure Plate; 4212103 - ACT 4 Pad Sprung Race Clutch Disc; RB124 - ACT Clutch Release Bearing.

Q: Is the ACT SC1-HDG4 clutch kit good for a street-driven 2008-2014 Scion xD?
A: Yes. Recommended for high horsepower street or race use. Feel: light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

Q: How much torque does the ACT SC1-HDG4 hold vs a stock 2008-2014 Scion xD clutch?
A: 305 ft/lbs. torque capacity, 69% over OE.
