Heavy Duty Race Rigid 4 Pad Clutch Kit

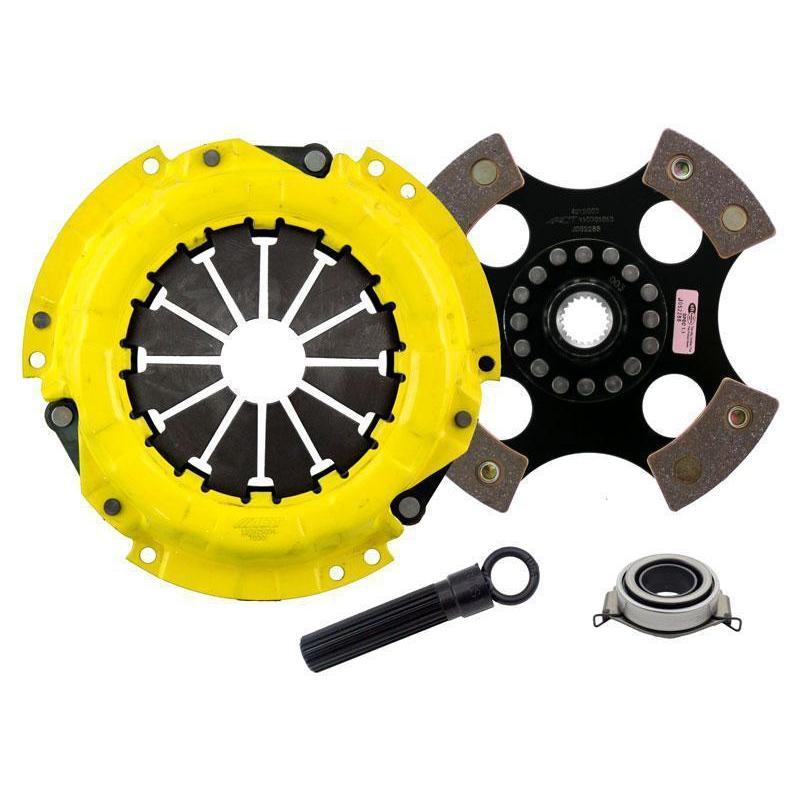

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit (SC1-HDR4)

SC1-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

Kit contents

• T030 - ACT Heavy Duty Clutch Pressure Plate
• 4212003 - ACT 4 Pad Rigid Race Clutch Disc
• RB124 - ACT Clutch Release Bearing

Specifications

• Product weight (lbs.): 11.1
• Torque capacity (ft/lbs.): 305
• Torque capacity over OE: 69%
• Disc material: Ceramic
• Clutch disc diameter (in.): 8.3
• Clutch disc diameter (mm): 212
• Input shaft diameter (in.): 0.9375
• Pressure plate type: Heavy Duty
• Warranty: 12 months

Characteristics

• Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for race use only
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 2008-2014 Scion xD

Q: Best race clutch kit for a 2008-2014 Scion xD?
A: The ACT SC1-HDR4 Heavy Duty Race Rigid 4 Pad Clutch Kit is recommended for race use only and fits the 2008-2014 Scion xD (Base).

Q: What comes in the ACT SC1-HDR4 clutch kit for a 2008-2014 Scion xD?
A: It includes T030 - ACT Heavy Duty Clutch Pressure Plate; 4212003 - ACT 4 Pad Rigid Race Clutch Disc; RB124 - ACT Clutch Release Bearing.

Q: Is the ACT SC1-HDR4 clutch kit meant for street or race use on a 2008-2014 Scion xD?
A: Recommended for race use only. Feel: light to moderate pedal effort, aggressive engagement, increased gear rattle.

Q: How much torque does the ACT SC1-HDR4 hold vs a stock 2008-2014 Scion xD clutch?
A: 305 ft/lbs. torque capacity, 69% over OE.
