Heavy Duty Race Sprung 6 Pad Clutch Kit

• 2007–2013 Mazda | Mazdaspeed3
• 2006-2007 Mazda | Mazdaspeed6

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit (ZX4-HDG6)

Note: Conversion Kit. Includes ACT Prolite flywheel. Pressure plate bolts included (M8-1.25 x 16mm).

ZX4-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

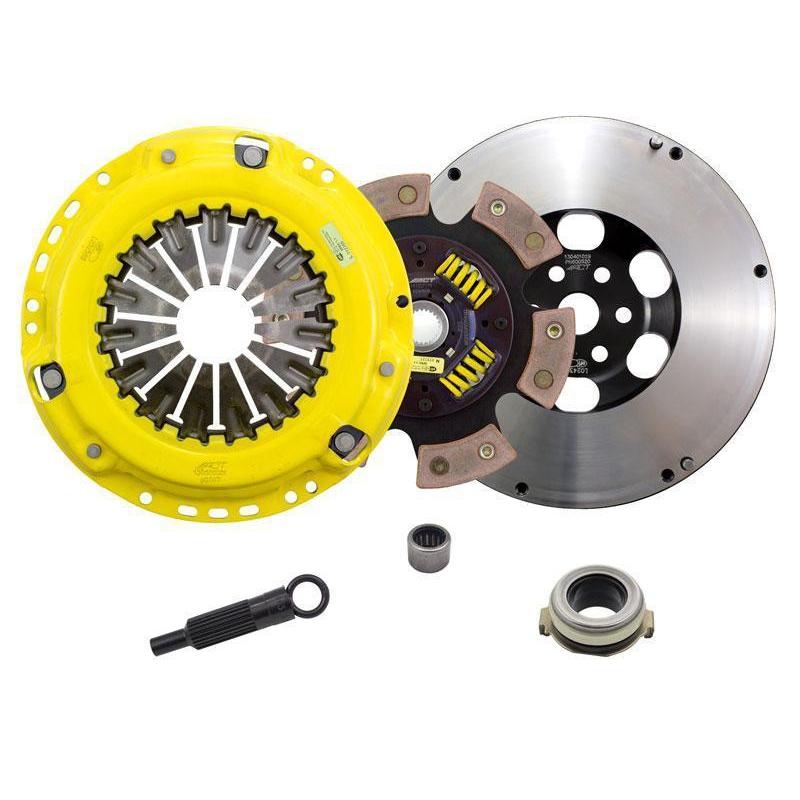

Kit contents

• 600521 - ACT XACT Prolite Clutch Flywheel
• MZ031 - ACT Heavy Duty Clutch Pressure Plate
• 6240508-2 - ACT 6 Pad Sprung Race Clutch Disc
• AT03 - ACT Clutch Alignment Tool
• RB110 - ACT Clutch Release Bearing
• PB1030 - ACT Clutch Pilot Bearing

Specifications

• Product weight (lbs.): 30.5
• Torque capacity (ft/lbs.): 574
• Torque capacity over OE: 93%
• Disc material: Ceramic
• Clutch disc diameter (in.): 9.4
• Clutch disc diameter (mm): 240
• Input shaft diameter (in.): 1
• Pressure plate type: Heavy Duty
• Warranty: 12 months

Characteristics

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 2006-2007 Mazda 6 Mazdaspeed
• 2007-2013 Mazda 3 Mazdaspeed

Q: Best high horsepower clutch kit for a 2007-2013 Mazdaspeed 3 or 2006-2007 Mazdaspeed 6?
A: The ACT ZX4-HDG6 Heavy Duty Race Sprung 6 Pad Clutch Kit is recommended for high horsepower street or race use and fits the Mazda 3 Mazdaspeed every year 2007-2013 and the 2006-2007 Mazda 6 Mazdaspeed.

Q: Is the ACT ZX4-HDG6 a conversion kit with a Prolite flywheel for a 2007-2013 Mazdaspeed 3 or 2006-2007 Mazdaspeed 6?
A: Yes. Note: Conversion Kit. Includes ACT Prolite flywheel. Pressure plate bolts included (M8-1.25 x 16mm). Flywheel type: Prolite.

Q: What comes in the ACT ZX4-HDG6 clutch kit for a 2007-2013 Mazdaspeed 3 or 2006-2007 Mazdaspeed 6?
A: It includes 600521 - ACT XACT Prolite Clutch Flywheel; MZ031 - ACT Heavy Duty Clutch Pressure Plate; 6240508-2 - ACT 6 Pad Sprung Race Clutch Disc; AT03 - ACT Clutch Alignment Tool; RB110 - ACT Clutch Release Bearing; PB1030 - ACT Clutch Pilot Bearing.

Q: Is the ACT ZX4-HDG6 clutch kit good for a street-driven 2007-2013 Mazdaspeed 3 or 2006-2007 Mazdaspeed 6?
A: Yes. Recommended for high horsepower street or race use. Feel: light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

Q: How much torque does the ACT ZX4-HDG6 hold vs a stock 2007-2013 Mazdaspeed 3 or 2006-2007 Mazdaspeed 6 clutch?
A: 574 ft/lbs. torque capacity, 93% over OE.
