Xtreme Clutch Pressure Plate

• 2004–2021 Subaru | WRX STI

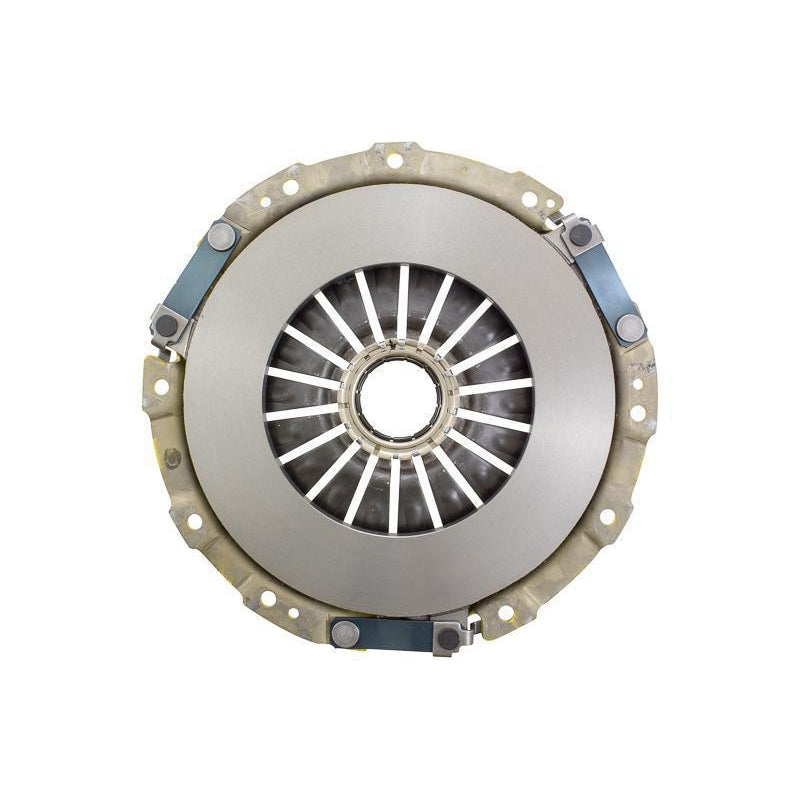

ACT Extreme Clutch Pressure Plate (SB019X)

Note: Includes ACT Monoloc.

SB019X is an ACT pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.

Specifications

• Product weight (lbs.): 12.9
• Diameter (in.): 9.4
• Diameter (mm): 240
• Pressure plate type: Xtreme
• SFI: 1.1
• Warranty: 12 months

Characteristics

• Feel: Moderate to heavy pedal effort, confidence during hard shifts, positive engagement
• Life: Available life extended by ACT's exclusive diaphragm design, dramatic improvement in release mechanism life
• Quality: Carefully engineered for improved durability, precisely assembled, accurately balanced, major improvement in release mechanism
• Recommended Use: Recommended for street and race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc

Fitment

• 2004-2021 Subaru WRX STI (Impreza WRX STI / WRX STI)
• 2007-2009 Subaru Legacy GT spec.B
• 2002-2005 Subaru Impreza WRX STI [JDM]

Q: Best Xtreme pressure plate for a 2004-2021 Subaru WRX STI or 2007-2009 Legacy GT Spec B?
A: The ACT SB019X Xtreme Clutch Pressure Plate is recommended for street and race use and fits the 2004-2021 Subaru WRX STI (Impreza WRX STI / WRX STI) and the 2007-2009 Subaru Legacy GT spec.B. It also fits the 2002-2005 Subaru Impreza WRX STI [JDM].

Q: Is the ACT SB019X pressure plate good for a street-driven 2004-2021 Subaru WRX STI or 2007-2009 Legacy GT Spec B?
A: Yes. Recommended for street and race use. Feel: moderate to heavy pedal effort, confidence during hard shifts, positive engagement.

Q: Does the ACT SB019X pressure plate for a 2004-2021 Subaru WRX STI or 2007-2009 Legacy GT Spec B include a Monoloc?
A: Yes. Includes ACT Monoloc.

Q: What are the specs of the ACT SB019X pressure plate for a 2004-2021 Subaru WRX STI or 2007-2009 Legacy GT Spec B?
A: Product weight: 12.9 lbs. Diameter: 9.4 in. (240 mm). Pressure plate type: Xtreme. SFI: 1.1. Warranty: 12 months.

Q: Why choose the ACT SB019X pressure plate for a 2004-2021 Subaru WRX STI or 2007-2009 Legacy GT Spec B?
A: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability, includes ACT's patented Monoloc.
