Extreme Race Sprung 6 Pad Clutch Kit

ACT Extreme Race Sprung 6 Pad Clutch Kit (MB8-XTG6)

MB8-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.

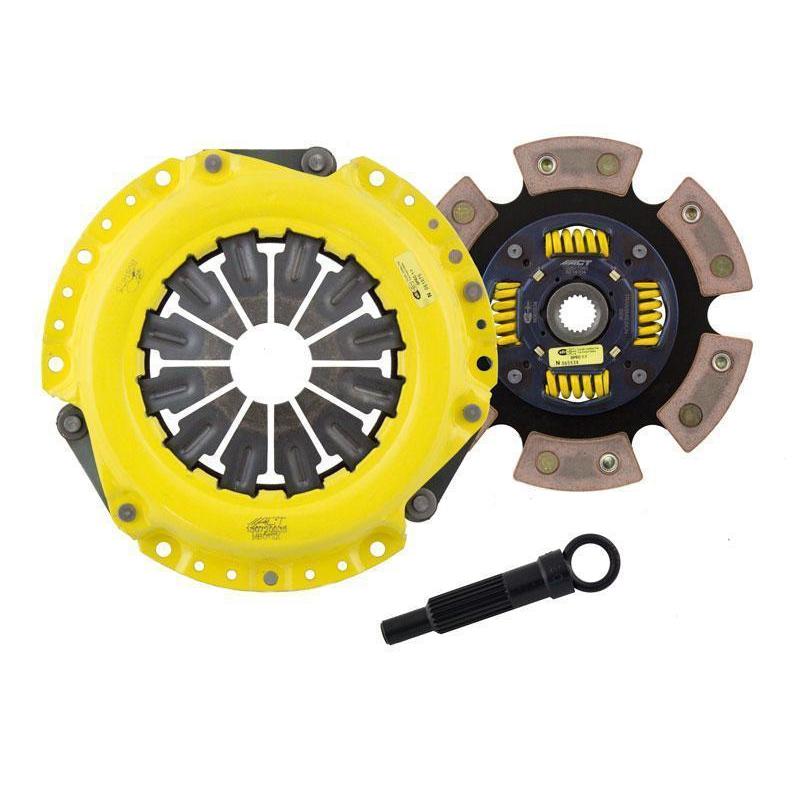

Kit contents

• MB012X - ACT Extreme Clutch Pressure Plate
• 6214104 - ACT 6 Pad Sprung Race Clutch Disc
• AT20 - ACT Clutch Alignment Tool

Specifications

• Product weight (lbs.): 11.1
• Torque capacity (ft/lbs.): 420
• Torque capacity over OE: 149%
• Disc material: Ceramic
• Clutch disc diameter (in.): 8.4
• Clutch disc diameter (mm): 214
• Input shaft diameter (in.): 0.875
• Pressure plate type: Xtreme
• Warranty: 12 months

Characteristics

• Feel: Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 2002-2006 Mitsubishi Lancer ES
• 2002-2006 Mitsubishi Lancer OZ Rally
• 2005-2006 Mitsubishi Lancer LS Diamond

Q: Best high horsepower clutch kit for a 2002-2006 Mitsubishi Lancer ES or OZ Rally or 2005-2006 Lancer LS?
A: The ACT MB8-XTG6 Extreme Race Sprung 6 Pad Clutch Kit is recommended for high horsepower street or race use and fits the 2002-2006 Mitsubishi Lancer ES, the 2002-2006 Mitsubishi Lancer OZ Rally and the 2005-2006 Mitsubishi Lancer LS Diamond.

Q: What comes in the ACT MB8-XTG6 clutch kit for a 2002-2006 Mitsubishi Lancer ES or OZ Rally or 2005-2006 Lancer LS?
A: It includes MB012X - ACT Extreme Clutch Pressure Plate; 6214104 - ACT 6 Pad Sprung Race Clutch Disc; AT20 - ACT Clutch Alignment Tool.

Q: Is the ACT MB8-XTG6 clutch kit good for a street-driven 2002-2006 Mitsubishi Lancer ES or OZ Rally or 2005-2006 Lancer LS?
A: Yes. Recommended for high horsepower street or race use. Feel: moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle.

Q: How much torque does the ACT MB8-XTG6 hold vs a stock 2002-2006 Mitsubishi Lancer ES or OZ Rally or 2005-2006 Lancer LS clutch?
A: 420 ft/lbs. torque capacity, 149% over OE.
