MaXX Race Rigid 4 Pad Clutch Kit

ACT Max Extreme Race Rigid 4 Pad Clutch Kit (Z64-XXR4)

Z64-XXR4 kit features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

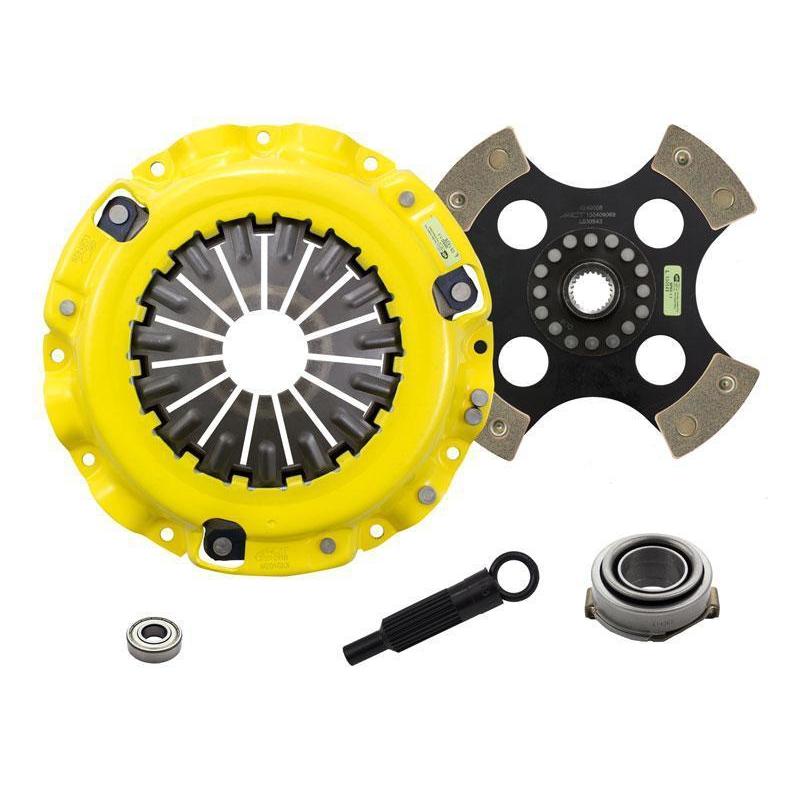

Kit contents

• MZ010XX - ACT Maxx Extreme Clutch Pressure Plate
• 4240008 - ACT 4 Pad Rigid Race Clutch Disc
• PB1005 - ACT Clutch Pilot Bearing
• RB091 - ACT Clutch Release Bearing
• AT03 - ACT Clutch Alignment Tool

Specifications

• Product weight (lbs.): 14.8
• Torque capacity (ft/lbs.): 625
• Torque capacity over OE: 156%
• Disc material: Ceramic
• Clutch disc diameter (in.): 9.4
• Clutch disc diameter (mm): 240
• Input shaft diameter (in.): 1
• Pressure plate type: Maxx Xtreme
• Warranty: 12 months

Characteristics

• Feel: Heavy to very heavy pedal effort, aggressive engagement, quickest shifts, increased gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for race use only
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 1988-1989 Mazda 626 Turbo; 1990-1991 Mazda 626 GT
• 1988 Mazda 929 Base
• 1988-1992 Mazda MX-6 GT; 1989-1990 MX-6 GT 4WS
• 1989-1992 Ford Probe GT

Q: Best race clutch kit for a 1988 Mazda 929 Base?
A: The ACT Z64-XXR4 Max Extreme Race Rigid 4 Pad Clutch Kit is recommended for race use only and fits the 1988 Mazda 929 Base. It also fits the 1988-1989 Mazda 626 Turbo, the 1990-1991 Mazda 626 GT, the 1988-1992 Mazda MX-6 GT, the 1989-1990 Mazda MX-6 GT 4WS and the 1989-1992 Ford Probe GT, each listed separately. See the fitment list for exact years.

Q: What comes in the ACT Z64-XXR4 clutch kit for a 1988 Mazda 929 Base?
A: It includes MZ010XX - ACT Maxx Extreme Clutch Pressure Plate; 4240008 - ACT 4 Pad Rigid Race Clutch Disc; PB1005 - ACT Clutch Pilot Bearing; RB091 - ACT Clutch Release Bearing; AT03 - ACT Clutch Alignment Tool.

Q: Is the ACT Z64-XXR4 clutch kit meant for street or race use on a 1988 Mazda 929 Base?
A: Recommended for race use only. Feel: heavy to very heavy pedal effort, aggressive engagement, quickest shifts, increased gear rattle.

Q: How much torque does the ACT Z64-XXR4 hold vs a stock 1988 Mazda 929 Base clutch?
A: 625 ft/lbs. torque capacity, 156% over OE.
