Heavy Duty Race Sprung 6 Pad Clutch Kit

ACT Heavy Duty Race Sprung 6 Pad Clutch Kit (Z65-HDG6)

Note: Flywheel requires counterweight (not included).

Z65-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

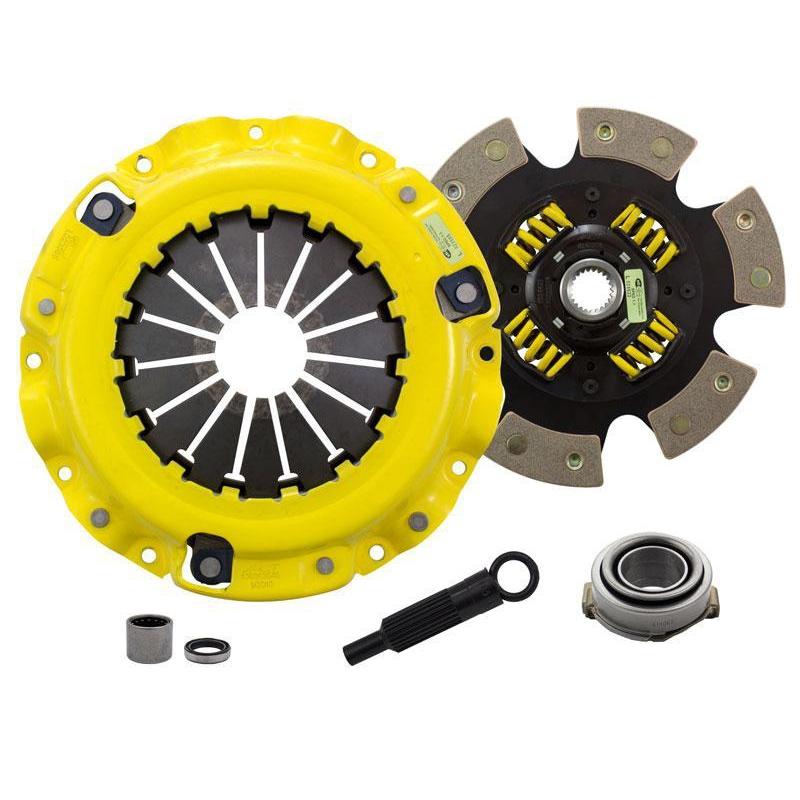

Kit contents

• MZ010 - ACT Heavy Duty Clutch Pressure Plate
• 6240208 - ACT 6 Pad Sprung Race Clutch Disc
• RB091 - ACT Clutch Release Bearing
• AT03 - ACT Clutch Alignment Tool
• PB1013 - ACT Clutch Pilot Bearing

Specifications

• Product weight (lbs.): 16.2
• Torque capacity (ft/lbs.): 420
• Torque capacity over OE: 72%
• Disc material: Ceramic
• Clutch disc diameter (in.): 9.4
• Clutch disc diameter (mm): 240
• Input shaft diameter (in.): 1
• Pressure plate type: Heavy Duty
• Warranty: 12 months

Characteristics

• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 1986-1991 Mazda RX-7 Turbo (1.3 R2 GAS FI 1308cc | Turbocharged)
• 1988 Mazda RX-7 10th Anniversary (1.3 R2 GAS FI 1308cc | Turbocharged)

Q: Best high horsepower clutch kit for a 1986-1991 Mazda RX-7 Turbo?
A: The ACT Z65-HDG6 Heavy Duty Race Sprung 6 Pad Clutch Kit is recommended for high horsepower street or race use and fits the 1986-1991 Mazda RX-7 Turbo (1.3 R2 GAS FI 1308cc, turbocharged). It also fits the 1988 Mazda RX-7 10th Anniversary (1.3 R2 GAS FI 1308cc, turbocharged).

Q: What comes in the ACT Z65-HDG6 clutch kit for a 1986-1991 Mazda RX-7 Turbo?
A: It includes MZ010 - ACT Heavy Duty Clutch Pressure Plate; 6240208 - ACT 6 Pad Sprung Race Clutch Disc; RB091 - ACT Clutch Release Bearing; AT03 - ACT Clutch Alignment Tool; PB1013 - ACT Clutch Pilot Bearing.

Q: Is the ACT Z65-HDG6 clutch kit good for a street-driven 1986-1991 Mazda RX-7 Turbo?
A: Yes. Recommended for high horsepower street or race use. Feel: light to moderate pedal effort, aggressive engagement, OE to mild gear rattle.

Q: Does the ACT Z65-HDG6 clutch kit for a 1986-1991 Mazda RX-7 Turbo need a flywheel counterweight?
A: Yes. Flywheel requires counterweight (not included). The counterweight is not part of the kit contents listed above.

Q: How much torque does the ACT Z65-HDG6 hold vs a stock 1986-1991 Mazda RX-7 Turbo clutch?
A: 420 ft/lbs. torque capacity, 72% over OE.
