Heavy Duty Race Rigid 4 Pad Clutch Kit

ACT Heavy Duty Race Rigid 4 Pad Clutch Kit (Z65-HDR4)

Note: Flywheel requires counterweight (not included).

Z65-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

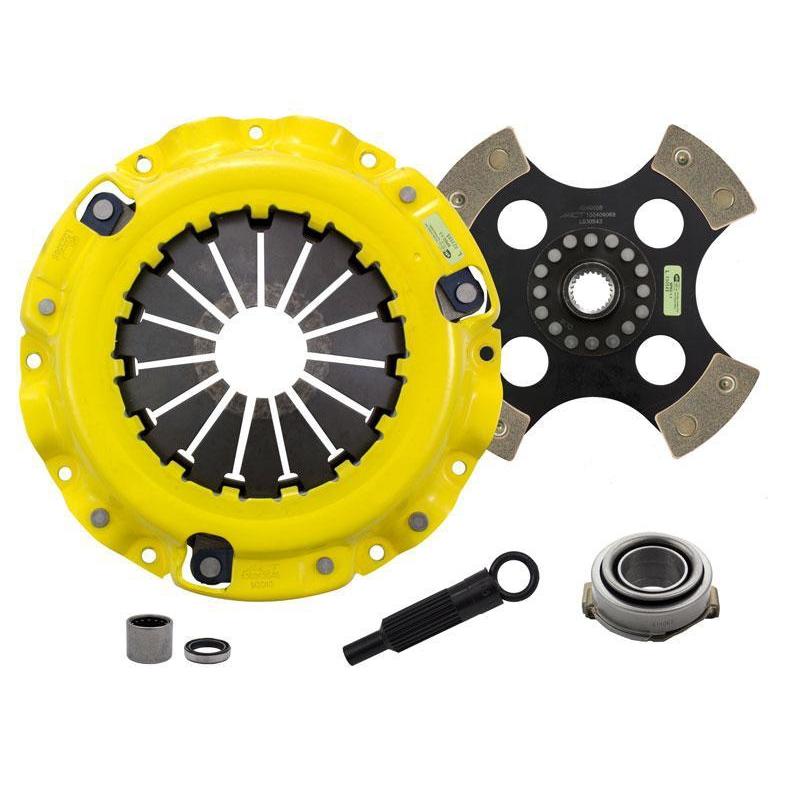

Kit contents

• MZ010 - ACT Heavy Duty Clutch Pressure Plate
• 4240008 - ACT 4 Pad Rigid Race Clutch Disc
• AT03 - ACT Clutch Alignment Tool
• PB1013 - ACT Clutch Pilot Bearing
• RB091 - ACT Clutch Release Bearing

Specifications

• Product weight (lbs.): 14.4
• Torque capacity (ft/lbs.): 420
• Torque capacity over OE: 72%
• Disc material: Ceramic
• Clutch disc diameter (in.): 9.4
• Clutch disc diameter (mm): 240
• Input shaft diameter (in.): 1
• Pressure plate type: Heavy Duty
• Warranty: 12 months

Characteristics

• Feel: Light to moderate pedal effort, aggressive engagement, increased gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for race use only
• ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Fitment

• 1986-1991 Mazda RX-7 Turbo (1.3 R2 GAS FI 1308cc | Turbocharged)
• 1988 Mazda RX-7 10th Anniversary (1.3 R2 GAS FI 1308cc | Turbocharged)

Q: Best race clutch kit for a 1986-1991 Mazda RX-7 Turbo?
A: The ACT Z65-HDR4 Heavy Duty Race Rigid 4 Pad Clutch Kit is recommended for race use only and fits the 1986-1991 Mazda RX-7 Turbo (1.3 R2 GAS FI 1308cc, turbocharged). It also fits the 1988 Mazda RX-7 10th Anniversary (1.3 R2 GAS FI 1308cc, turbocharged).

Q: What comes in the ACT Z65-HDR4 clutch kit for a 1986-1991 Mazda RX-7 Turbo?
A: It includes MZ010 - ACT Heavy Duty Clutch Pressure Plate; 4240008 - ACT 4 Pad Rigid Race Clutch Disc; AT03 - ACT Clutch Alignment Tool; PB1013 - ACT Clutch Pilot Bearing; RB091 - ACT Clutch Release Bearing.

Q: Is the ACT Z65-HDR4 clutch kit meant for street or race use on a 1986-1991 Mazda RX-7 Turbo?
A: Recommended for race use only. Feel: light to moderate pedal effort, aggressive engagement, increased gear rattle.

Q: Does the ACT Z65-HDR4 clutch kit for a 1986-1991 Mazda RX-7 Turbo need a flywheel counterweight?
A: Yes. Flywheel requires counterweight (not included). The counterweight is not part of the kit contents listed above.

Q: How much torque does the ACT Z65-HDR4 hold vs a stock 1986-1991 Mazda RX-7 Turbo clutch?
A: 420 ft/lbs. torque capacity, 72% over OE.
