High Volume Intake System

• 2024-2025 Acura | Integra Type S
• 2023-2025 Honda | Civic Type R

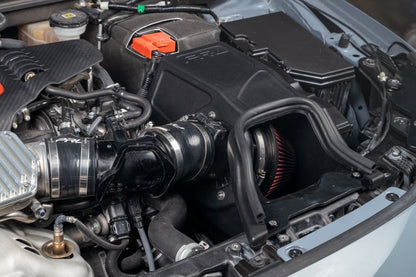

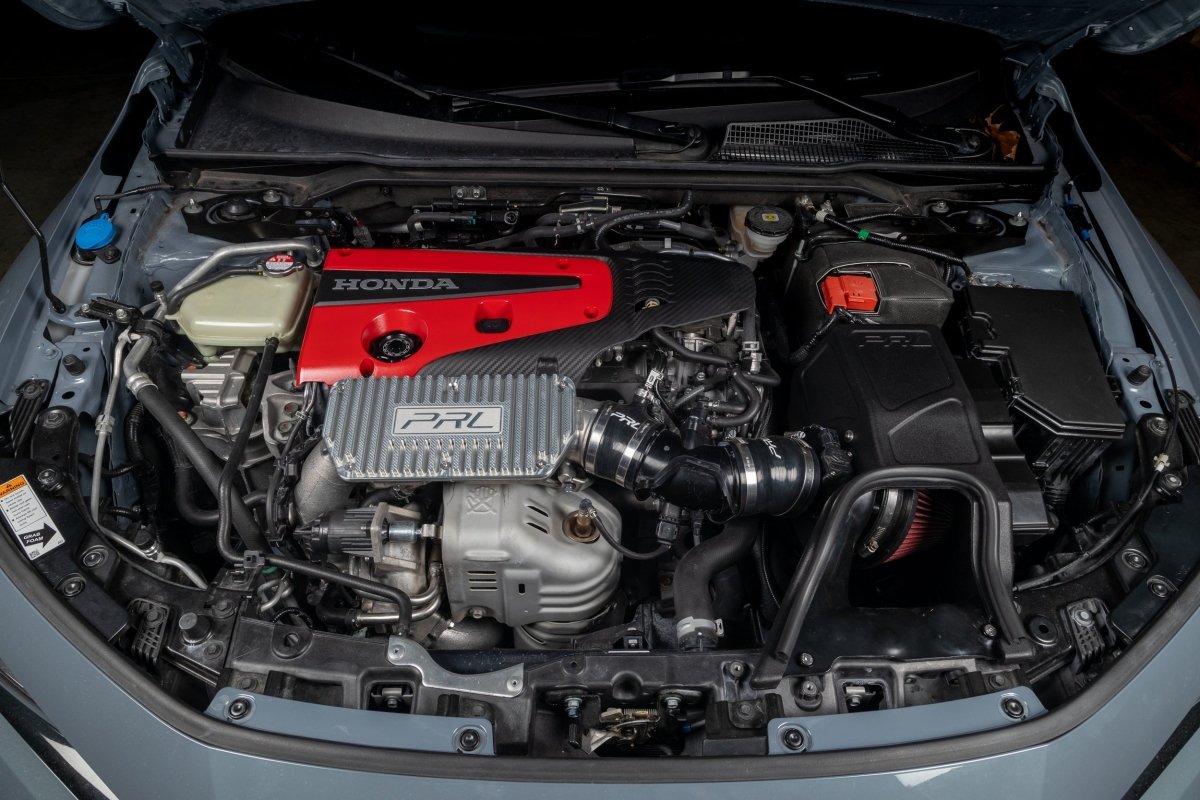

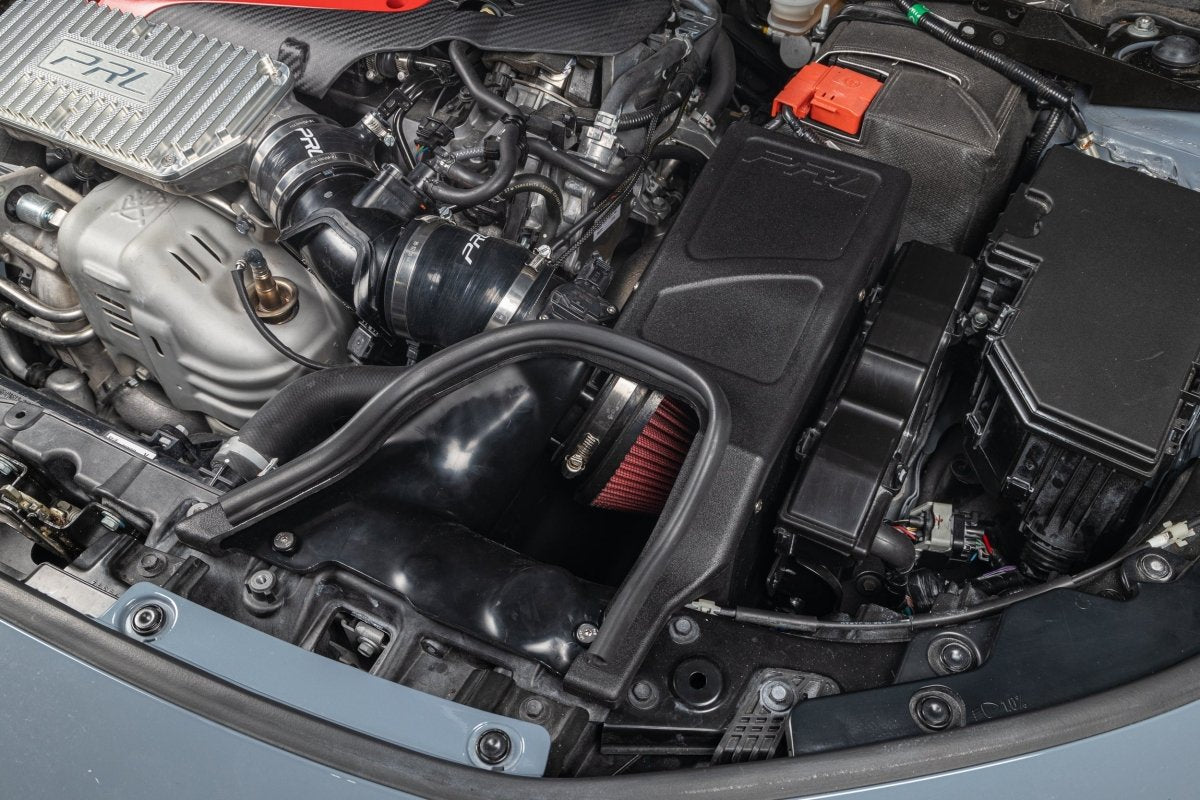

The PRL Motorsports High Volume Intake System (PRL-FL5-INT-HVI) is a high-volume air intake system for the 2023-2025 Honda Civic Type R (FL5) and the 2024-2025 Acura Integra Type S (DE5). The system uses an HDPE rotomolded air box with a cone filter and a secondary air duct, and it uses the factory air duct and seal for optimal airflow and heat-soak reduction.

CARB Legal - EO D-878-8. Street legal in all 50 states, including California, when installed on the covered vehicles: 2023-2025 Honda Civic Type R (FL5) and 2024-2025 Acura Integra Type S (DE5) with the 2.0L turbo engine.

Specifications

• Part Number: PRL-FL5-INT-HVI
• CARB EO #: D-878-8
• Fitment: 2023-2025 Honda Civic Type R (FL5) and 2024-2025 Acura Integra Type S (DE5)
• Fits all variant models, including RHD and international models
• Air box: HDPE rotomolded air box using the factory air duct and seal
• Secondary air duct eliminates the airflow restriction of the factory duct, which third-party testing linked to a 10-20 hp loss with the hood closed
• 133% increase in air volume over the OE unit
• Stepped silicone design matches each silicone piece to each connection point for a smooth transition
• Fits the factory turbocharger inlet pipe ONLY
• No ECU calibration required

What's in the Box

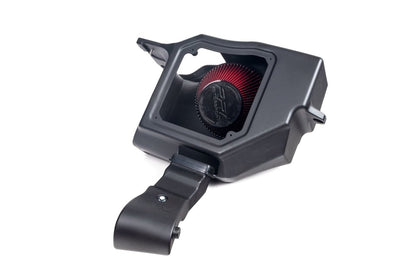

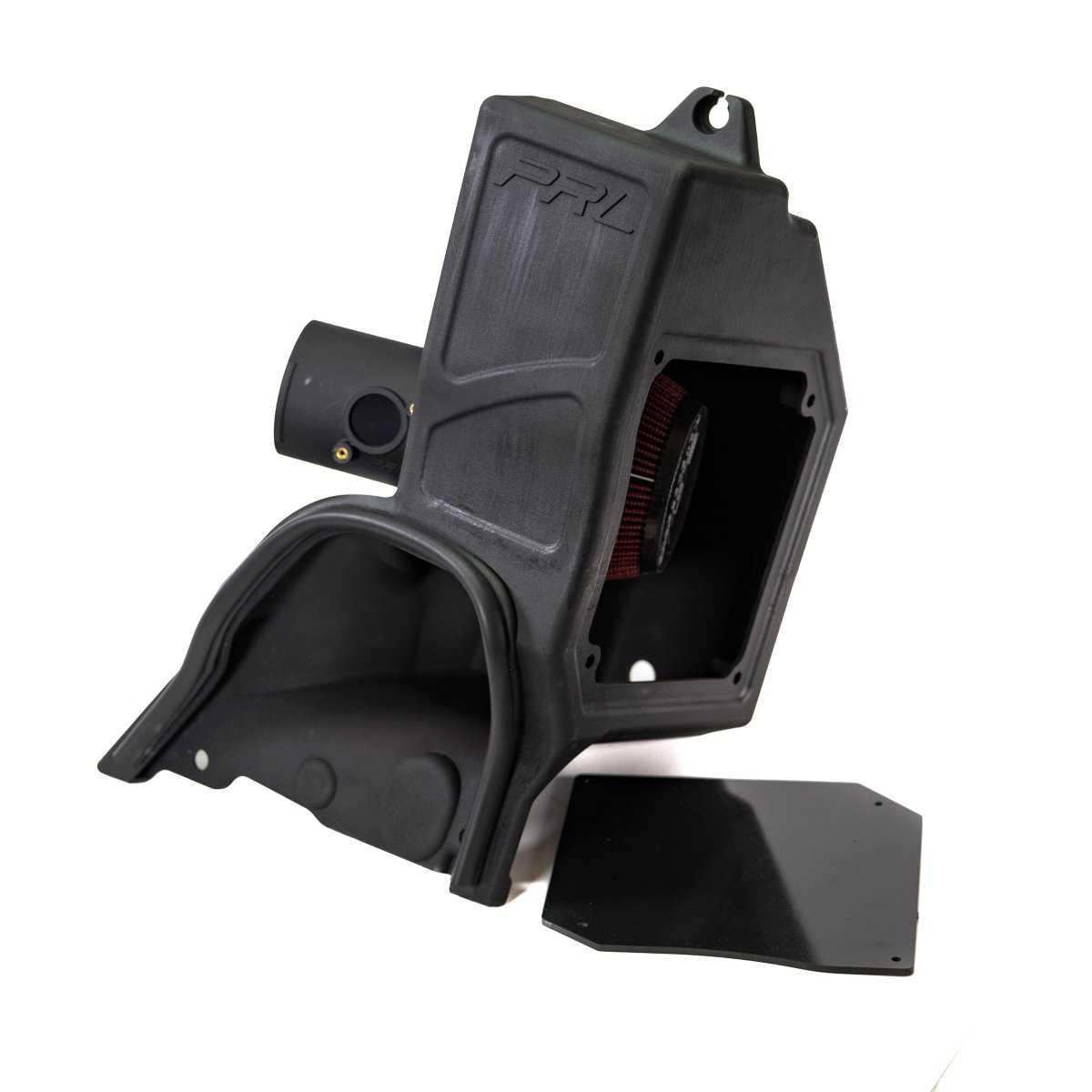

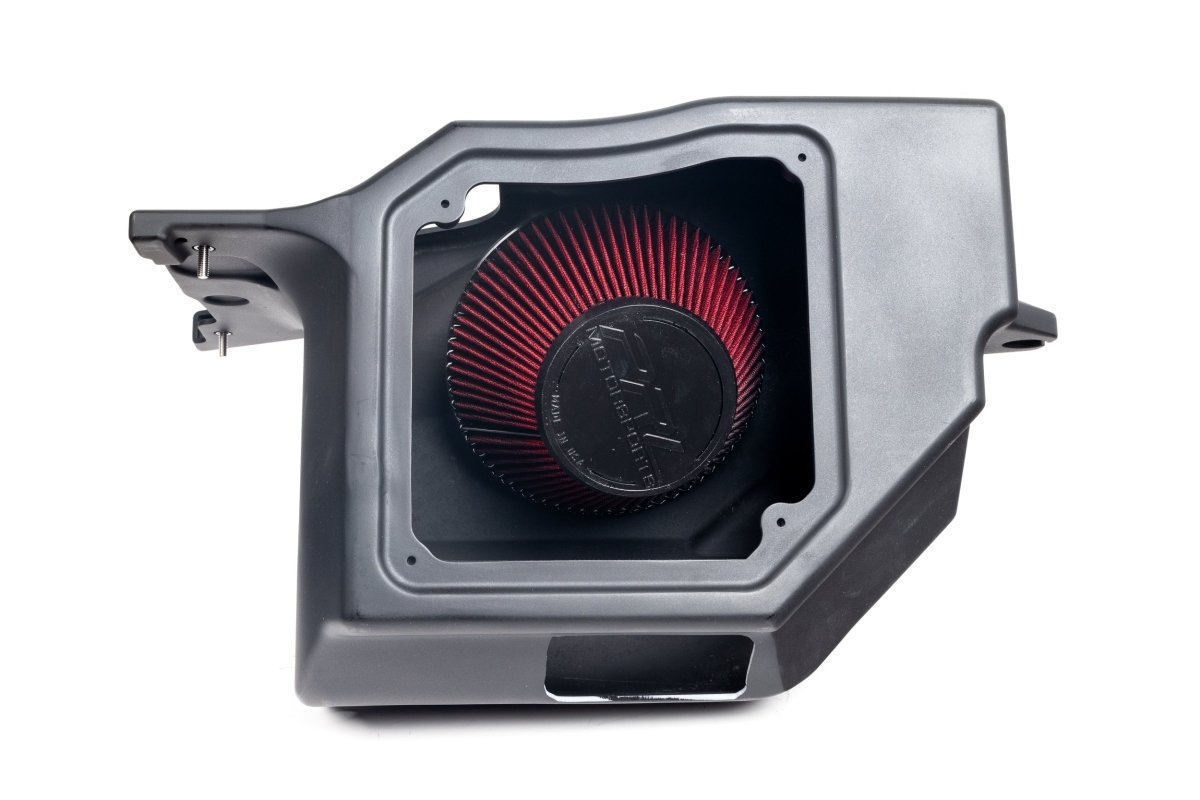

• Rotomolded airbox and airbox cover
• Secondary air duct
• Injection molded MAF housing
• Cone filter (PRL-AF-4315)
• Two silicone HVI hoses
• Hose clamps, ECU harness bracket, air duct seal, dress-up washers, and stainless hardware

Installation

PRL's installation guide estimates approximately 45 minutes to 1 hour for installation. Required tools include a ratchet, a 6-inch to 12-inch extension, 10mm and 12mm sockets, a 1/4-inch hex socket, a torque wrench, pliers, Phillips and flat head screwdrivers, and a clip removal tool.

Frequently Asked Questions

Q: Does this intake fit my 2023-2025 Civic Type R or 2024-2025 Integra Type S?
A: Yes. This PRL High Volume Intake System fits the 2023-2025 Honda Civic Type R (FL5) and the 2024-2025 Acura Integra Type S (DE5), including RHD and international variant models.

Q: What is included in the box?
A: The box includes the rotomolded airbox and cover, the secondary air duct, the injection molded MAF housing, the cone filter, two silicone hoses, hose clamps, and the brackets, seal, and hardware listed in PRL's component list.

Q: Do I need a tune after installing this intake?
A: No. PRL states that this intake system does not require an ECU calibration.

Q: Which turbo inlet pipe does this intake work with?
A: This intake fits the factory turbocharger inlet pipe only.

Q: How long does installation take?
A: PRL's installation guide estimates approximately 45 minutes to 1 hour for installation.
