Perrin [22-25 WRX MT] Thermostatic Oil Cooler Kit - Black (Front Mount) | PSP-OIL-115

• 2022-2026 Subaru WRX

Reduce engine oil temperatures, extend engine life, and keep your horsepower consistent with a PERRIN Oil Cooler for 2022+ WRX, available in both front and top mounted options.

Quick Specs:

• Brand: PERRIN

• Product Type: Oil Cooler Kit

• Cooler Type: Bar and Plate Core with In-Line Turbulators

• Thermostat: Integrated 85°C (185°F)

• Hose Type: Aeroquip -10 with Pyrojacket (250 psi, 300°F)

• Bracket Material: CNC Machined 6061 T6 Aluminum

• Core Dimensions: 9.5" x 4.75" x 2.2"

• Core Delta PSI: 3.0/3.5 PSI

• Core BTU/hr Range: 22,000-29,000

• Additional Oil Capacity: 1 quart

• Fitment: Direct fit with OEM core support mounting

• Pressure Resistance: Low pressure drop due to in-line turbulators

• Temperature Reduction: 15-20°F

• Warranty: Manufacturer's warranty

Product Description:
The PERRIN Oil Cooler Kit is designed to reduce engine oil temperatures under racing conditions, maintaining optimal performance and extending engine life. Featuring a bar and plate core with in-line turbulators, this cooler maximizes heat dissipation without pressure buildup. The Setrab Oil Coolers gently stir the oil for even cooling with minimal pressure loss.

The integrated 85°C (185°F) thermostat ensures the oil reaches the optimal temperature before circulating through the cooler. Preassembled Aeroquip -10 hoses with Pyrojacket provide abrasion resistance and heat protection, rated for 250 psi and 300°F.

The kit includes CNC machined 6061 T6 aluminum brackets for secure and durable mounting to the OEM core support. The PERRIN Oil Spacer facilitates easy installation of the thermostat-filter assembly.

Key Features:

• Efficient cooling with bar and plate core design

• Integrated thermostat maintains optimal oil temperature

• In-line turbulators for consistent heat dissipation

• Lightweight and durable Aeroquip hoses with Pyrojacket

• Precision CNC aluminum mounting brackets for easy installation

• Designed for racing and high-performance applications

• Reduces oil temperature by 15-20°F

• Direct fit with OEM core support

• Adds 1 quart of oil capacity

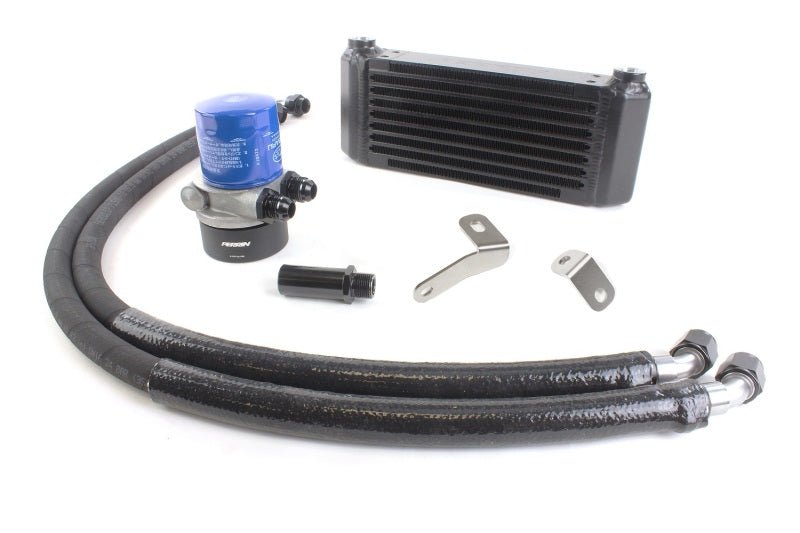

What's in the Box:

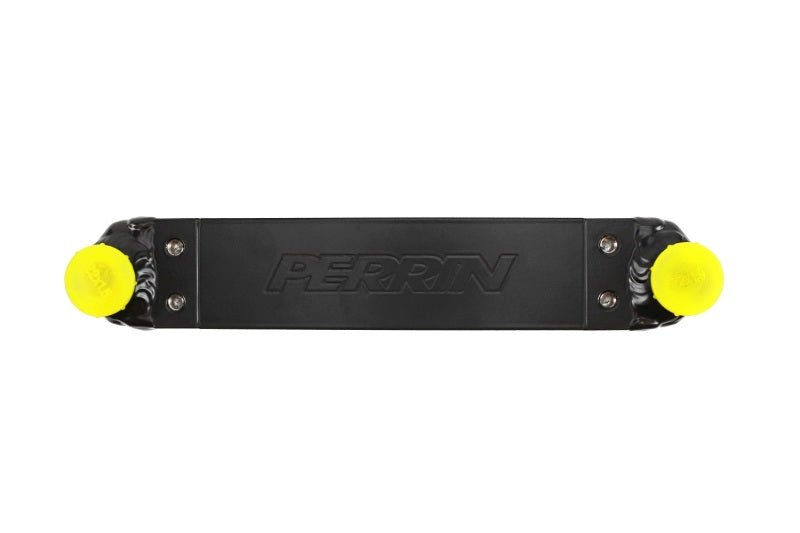

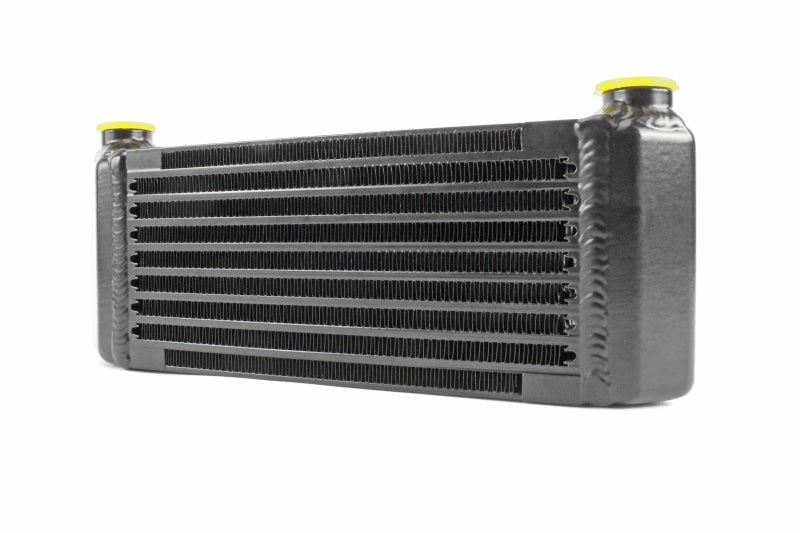

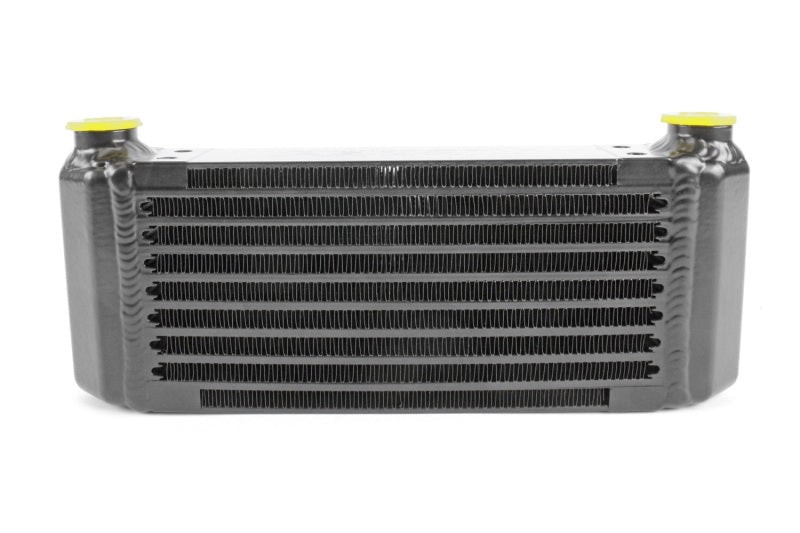

• PERRIN Oil Cooler Core

• CNC Machined 6061 T6 Aluminum Mounting Brackets

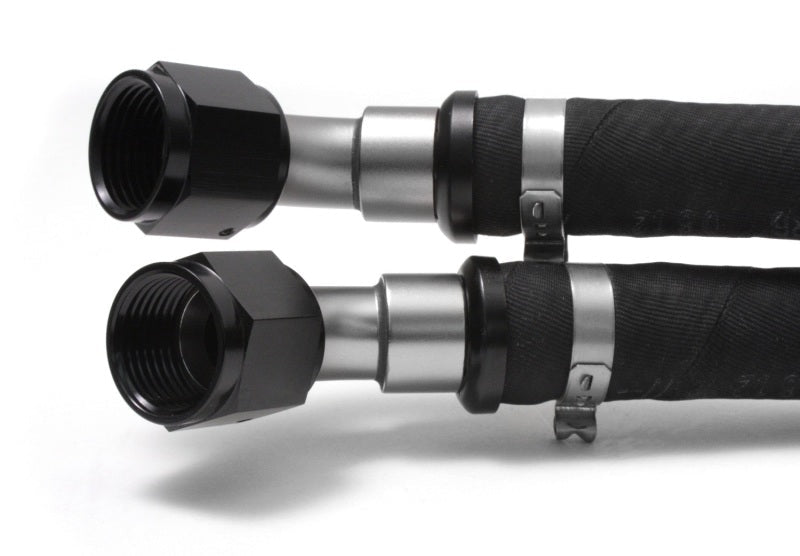

• Preassembled Aeroquip -10 Hoses with Pyrojacket

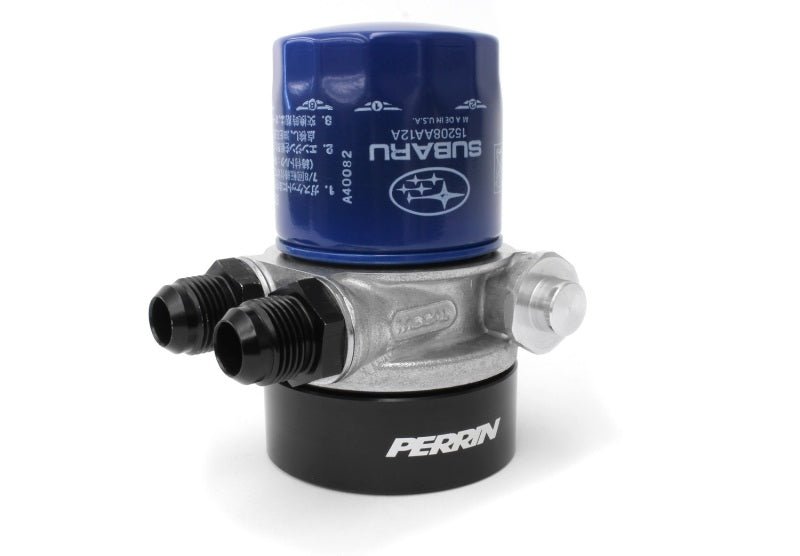

• PERRIN Oil Spacer

• Integrated Thermostat-Filter Assembly

• Installation Hardware

Note:
Designed to maintain optimal oil temperature during high-performance driving and track use. Suitable for vehicles with racing or heavy-duty applications.
