A new ten-blade GTX Gen II compressor wheel designed using proprietary Honeywell computer simulation software gives the GTX3584RS the ability to create more air mass flow, allowing the enthusiast a wider range of power output when tuning the vehicle. A larger, 0.72 A/R compressor housing allows the compressed air flow to circulate into the engine more efficiently than other mid-frame turbochargers. The 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability through its reduction in shaft motion. V-band and hose connection compressor outlet options are now offered so be careful to select the appropriate part number when ordering.
GTX3584RS Turbo Assembly Kit V-Band / V-Band 1.21 A/R 856804-5006S
Sale price
$2,46831
Regular price$2,632.86
Save $164.55
Earn $49.36 In JDMuscle Rewards!
Talk to an Enthusiast
Verify Fitment & Product Recommendations
M-F 9:00AM - 6:00PM
Ships When Available-Lead Time Applies
Availability & lead time
This item is currently backordered or its inventory is not tracked in real time. Once your order is placed, we will source it through the manufacturer or our distributor network and ship it as soon as possible. If you need the item by a specific date, please contact us for an estimated ship date before ordering.
FREE SHIPPING
to
Pick Up Available at
Garrett

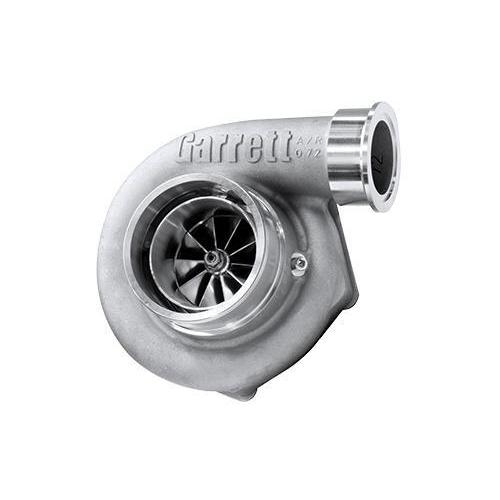

GTX3584RS Turbo Assembly Kit V-Band / V-Band 1.21 A/R 856804-5006S
Fitment
Fitment
Description
Description
Garrett 庐 GTX3584RS. The only mid-frame turbocharger on the market capable of producing 550-1000 horsepower for 2.0L �?5.5L engines. The GTX3584RS is a clean-sheet product with many new features geared towards enthusiasts.
A brand new high horsepower turbine wheel flows exhaust gasses at a higher, more efficient rate than other GT and GTX turbine wheel designs. The new turbine wheel design allows for higher exhaust gas flow which increases aerodynamic efficiency compared to the previous design. New hi-flowing, stainless steel turbine housings help decrease backpressure and range in size from 0.83, 1.01, and 1.21 A/R. These compact turbine housings are unique only to the GTX3584RS meaning they are not interchangeable with other GT/GTX35 products because of the new turbine wheel.
GTX3584RS turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud.
The new compressor housings are equipped with a fully machined speed sensor port that accepts the Garrett by Honeywell speed sensor (Sold separately). This feature allows tuners to understand existing operating conditions, which is important when fine tuning a turbocharger to its most efficient operating conditions. The speed sensor port comes plugged from the factory and can be removed using a 5mm allen key when ready to install a speed sensor kit.
The GTX3584RS turbocharger is sold as an assembly kit meaning the super core and turbine housing is sold as one unit.
