4B11T Evo X Forged Pistons | 08-15 Mitsubishi Evolution 10 | K636M

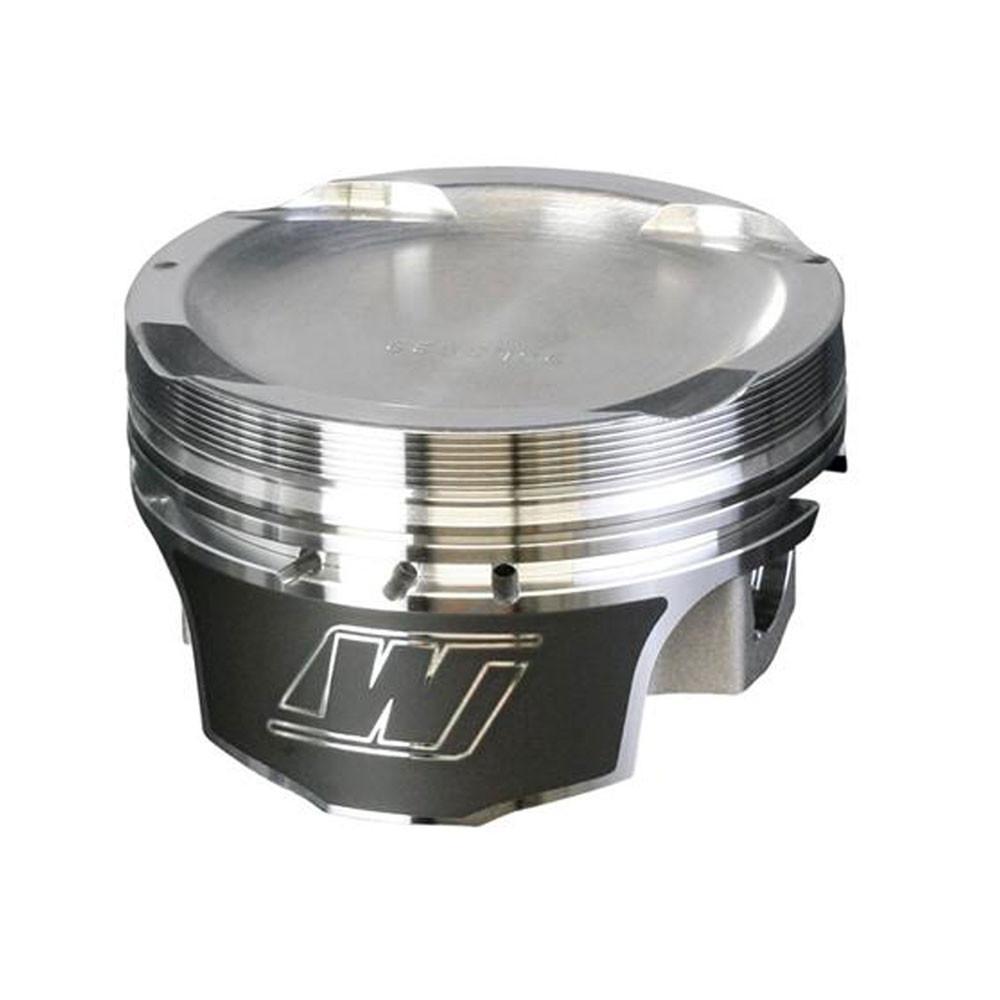

Mitsubishi Evo X Pistons by Wiseco

Own a 2008-2015 Mitsubishi Lancer Evolution X 4B11T and plan on building a motor? Wiseco is proven to make some of the best pistons on the market!

Featuring valve pocket designs that allow maximum flow around valve, also allowing oversized valves and high lift cams to be utilized. Piston crown shapes designed to promote maximum intake charge efficiency thru scavenging mixture "cross flow" during intake and exhaust valve overlap. More fuel and air equals more horsepower!

Their pistons are designed to optimize squish or quench during compression combustion cycle event, resulting in resistance to detonation and pre-ignition. The end product is longer engine life and increased horsepower potential.

Features

• 2618 Aerospace Alloy for Superior Strength to Weight Ratio
• ArmorGlide® Skirt Coating Increases Power and Reduces Piston Rock
• Strutted Forging for Improved Strength

Benefits

• Resistance to detonation and pre-ignition.
• Longer engine life and increased horsepower potential.
• Maximum ring seal minimizes blow-by and oil consumption.

Please Note

• Oil Squirter modification required.
• Most Wiseco Pistons have offset pins. (Pins must be offset, same as OEM, for quietest operation).

Applications

• 2008 - 2015 Mitsubishi Evo X 4B11T

Specifications

• Stroke: 3.386" (86mm)
• Rod: 5.659 (143.75mm)
• Comp Ht: 1.309 (33.25mm)
• Head cc's: 49.0
• Volume: -4.5cc
• Gasket Thickness: .048 (1.2mm)
• Deck Clearance: 0
• Block Ht: 8.661 (220mm)

What's In The Box?

• 1 - Sport Compact Series Piston Kit
• Piston Pins and Rings

Warranty

• WISECO warrants this product will be free from defects in material and workmanship for thirty (30) days following date of original purchase.
