GRF/GVF Flex Z Coilovers

• 2008-2014 Subaru | WRX STI

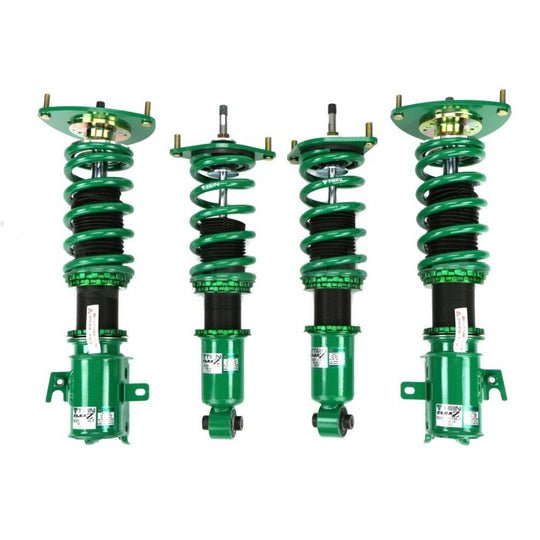

Tein 11-14 Subaru WRX STI (GRF/GVF) Flex Z Coilovers

The Street Flex coilover kit for the Subaru STI are developed to provide the ultimate balance of comfort and performance for both street driving and circuit use, along with wide-range damping force adjustment using their new Advance Needle technology and new damper valving specs, giving the driver a much more noticeable feel in damping force change and control.

The shortened shell case design provides optimum damper stroke at lower than standard vehicle ride height. Full-length adjustability offers separate spring preload and ride height adjustment. Updated internal components and external coatings increase durability and product life. Includes Pillowball Upper Mounts (camber adjustable for strut type applications) and is compatible with the EDFC and EDFC Active systems.

Note: EDFC Compatible

Specs:

Front

• Damping Force Adjustment: Y
• Full Length Ride Height Adjustable: Y
• Upper Mount: CAMBER ADJ. P/U
• Base Ride Height (mm): -30
• Max Low (mm): -101
• Max Low (inch): -4
• Max Height (mm): 4
• Max Height (inch): 0.2
• Recommended Low (mm): -40
• Recommended Low (inch): -1.6
• Recommended Height (mm): -20
• Recommended Height (inch): -0.8
• Rate (kgf/mm): 9
• Rate (lbs/in): 504
• SP PART#: SW090-01175
• Free Length (mm): 175
• I.D.(mm): ID70

Rear

• Damping Force Adjustment: Y
• Full Length Ride Height Adjustable: Y
• Uppermount: P/U
• Base Ride Height (mm): -30
• Max Low (mm): -76
• Max Low (inch): -3
• Max Height (mm): 21
• Max Height (inch): 0.8
• Recommended Low (mm): -40
• Recommended Low (inch): -1.6
• Recommended Height (mm): -20
• Recommended Height (inch): -0.8
• Rate (kgf/mm): 7
• Rate (lbs/in): 392
• SP PART#: SB070-01200
• Free Length (mm): 200
• I.D.(mm): ID70
