Dual-Pass Air-to-Water Heat Exchanger - 1500HP

• Universal

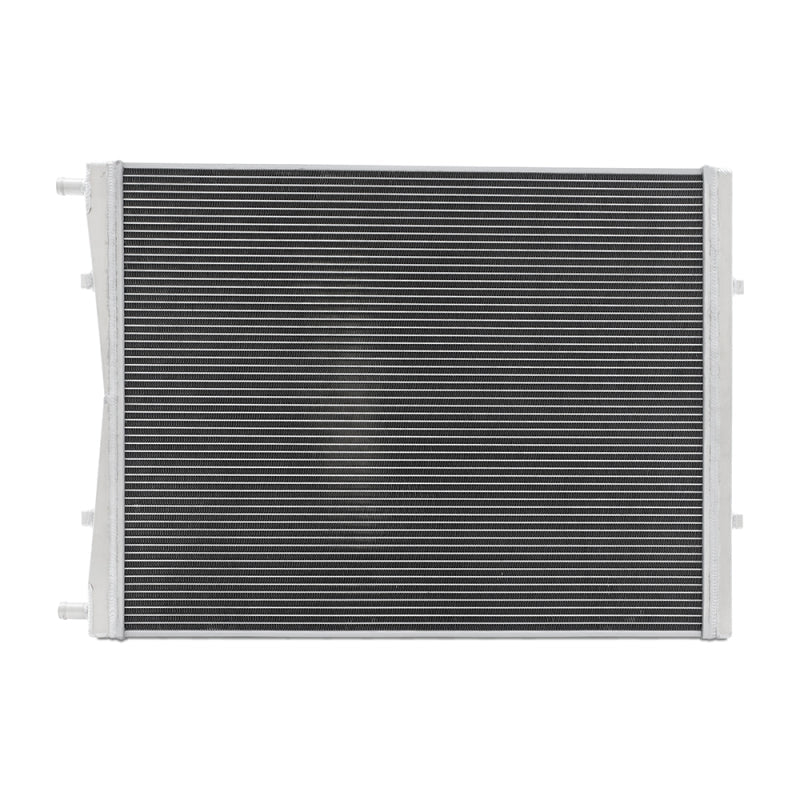

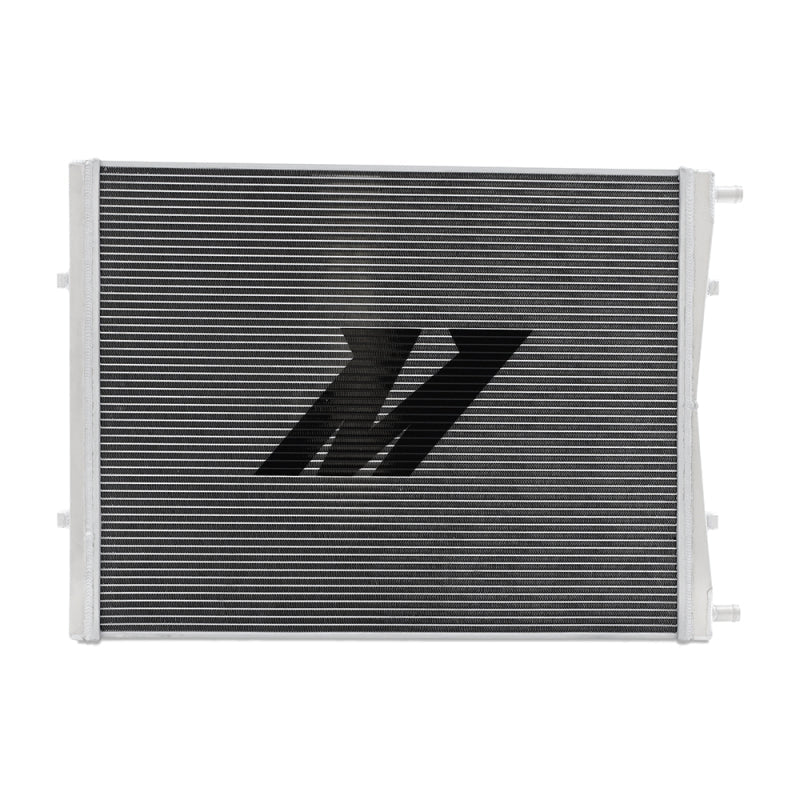

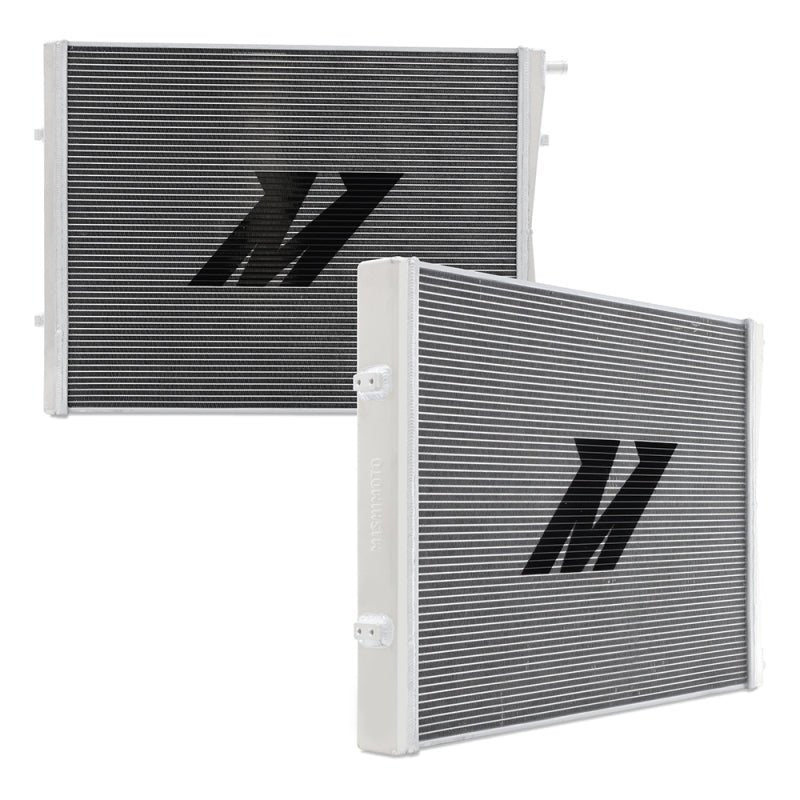

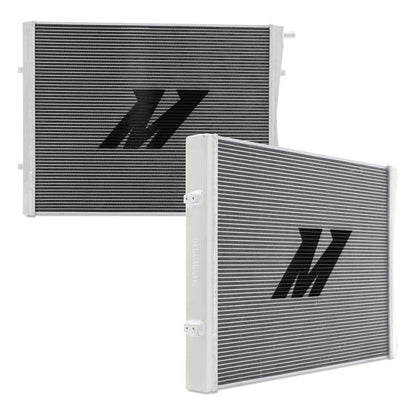

The Mishimoto Dual-Pass Air-to-Water Heat Exchanger rated for 1500 hp is a universal heat exchanger for air-to-water intercooler systems, providing cooling support for charge-air cooling systems up to 1500 hp with a dual-pass, 2-row core measuring 24.60in x 19.66in x 1.88in.

• Part number: MMRAD-HE-04
• Universal fitment — for use with air-to-water intercooler systems
• Provides effective cooling support for charge-air cooling systems up to 1500 hp
• Strategically designed dual-pass 2-row core offers maximum flow and heat dissipation
• Core size: 24.60in x 19.66in x 1.88in
• Overall size: 29.38in x 20.53in x 2.51in
• All-aluminum construction yields superior strength and durability

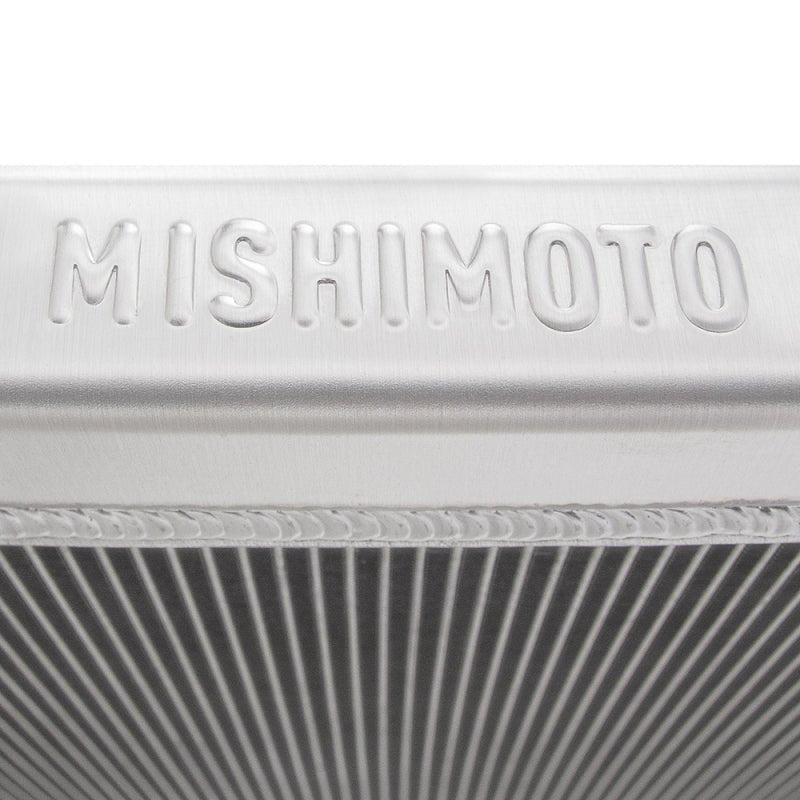

• Precision TIG-welded end tanks for improved durability and pressure tolerance
• Robust 1/2-in thick universal mounting bosses on each end tank
• Bead rolled 3/4-in inlet and outlet provide a leak-free connection
• Mishimoto Lifetime Warranty

Frequently Asked Questions

How much power does this heat exchanger support?
This dual-pass heat exchanger provides effective cooling support for charge-air cooling systems up to 1500 hp.

What is included in the box?
The box includes (1) Mishimoto heat exchanger, covered by the Mishimoto Lifetime Warranty.

What size is the core?
The dual-pass 2-row core measures 24.60in x 19.66in x 1.88in, and the overall size is 29.38in x 20.53in x 2.51in.
