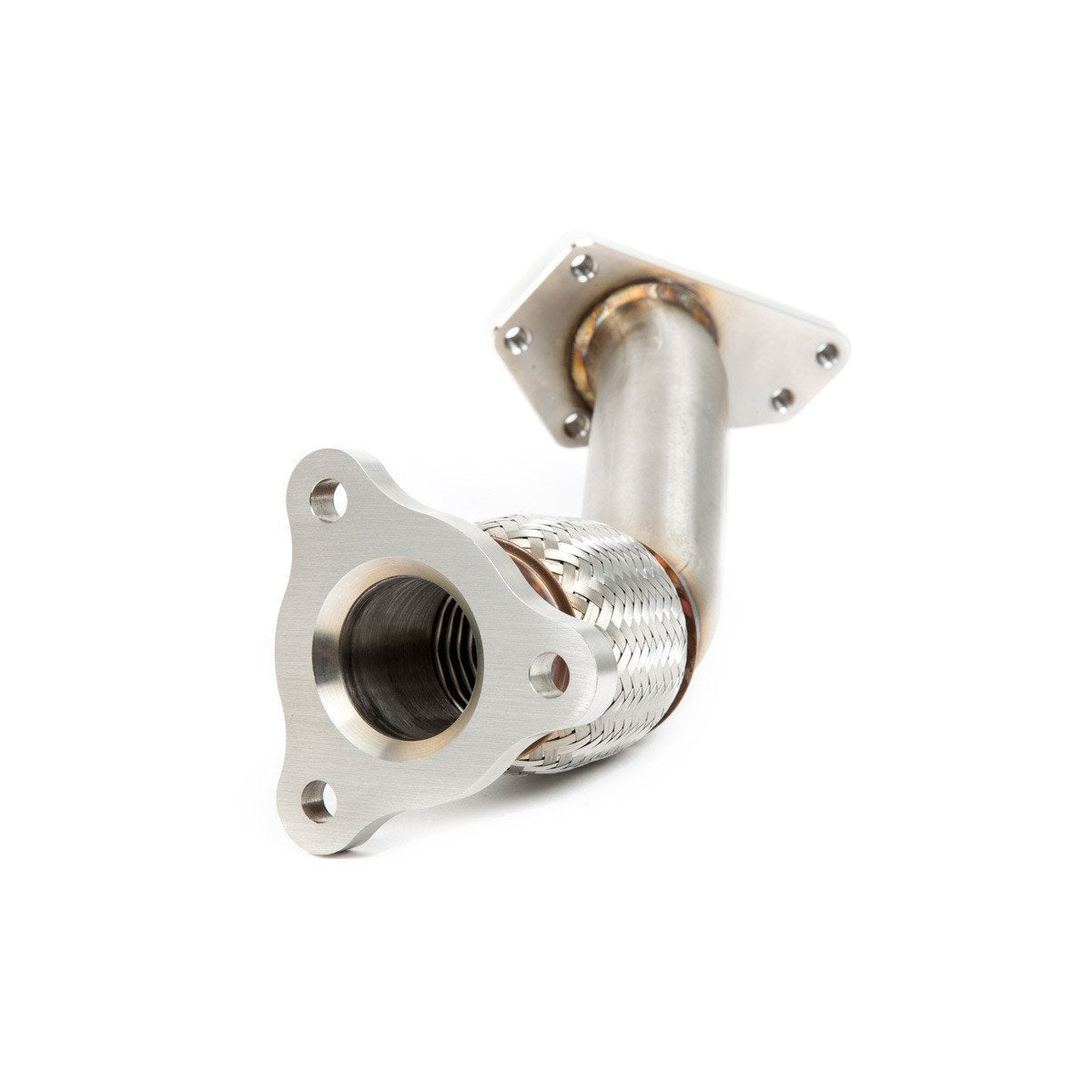

Up Pipe 3-Bolt Inlet - Subaru 2002-2014 WRX / 2004-21 STI / 2005-2009 LGT / 2004-2013 FXT | 007064

• 2005-2009 Subaru | Legacy GT

Adding an aftermarket Up Pipe is one of the first things you should do to your Subaru. Arguably one of the best $/HP ratios. Our goal was to make a premium heavy duty Up Pipe for you.

Design

We designed this Up Pipe using our in-house FARO Arm along with the latest and greatest Solidworks CAD software. This assures that we can offer you the most precise and best fitting Up Pipe on the market. In short, OEM exhaust manifold pieces are inconsisent so we used our reverse engineering hardware/software to scan countless OEM pieces to determine the range of best fitments for our aftermarket pipe. This allows us to be very confident that your flanges will be leak free and the Up Pipe will fit nicely.

Performance
Flow Bench Results vs. OEM at 28" WC
OEM Catless - 244.6 CFM
OEM Catted - 164.7 CFM
GrimmSpeed - 292.6 CFM

Spool Up
Application specific but generally you will see 300-400rpm quicker spool up

HP Increase
Application specific but generally you will see 8-10HP increase

Quick Specs

• Gaskets Included - Heavy Duty GrimmSpeed Gaskets
• Flex Joint - 321 Stainless Steel "Tuned-Bellow"
• Tubing Thickness- 14 Gauge Piping Thickness - 33% thicker than most competitors
• Pipe to Flange Connection - Cut-Back flange allows much smoother connection. Piping is ported flush with flange so there is no step into the pipe.
• Flanges - 1/2" 304 Stainless Steel CNC Milled - All 3 sides are milled for precise tolerances in manufacturing
• Optional ceramic coating
• Increased HP by ~10hp
• Reduce turbo lag

Fitments

- Confirmed fitment with Tomei, GT-Spec and eBay replica 3-bolt headers
