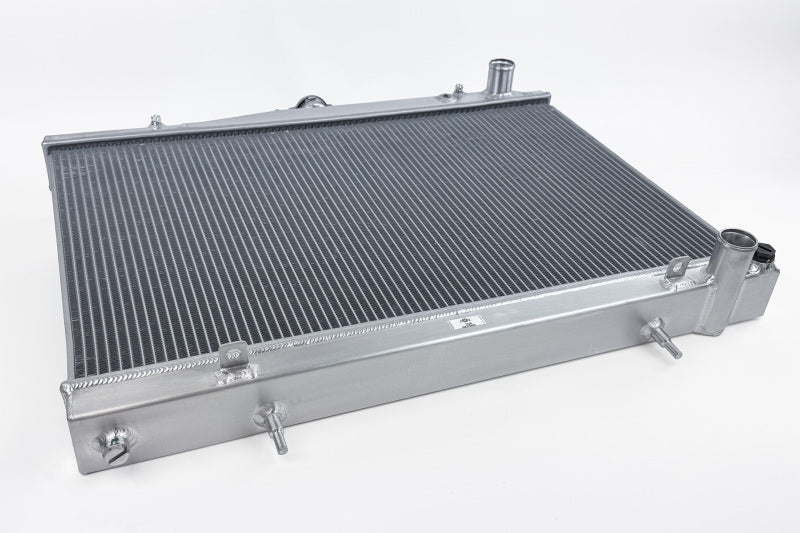

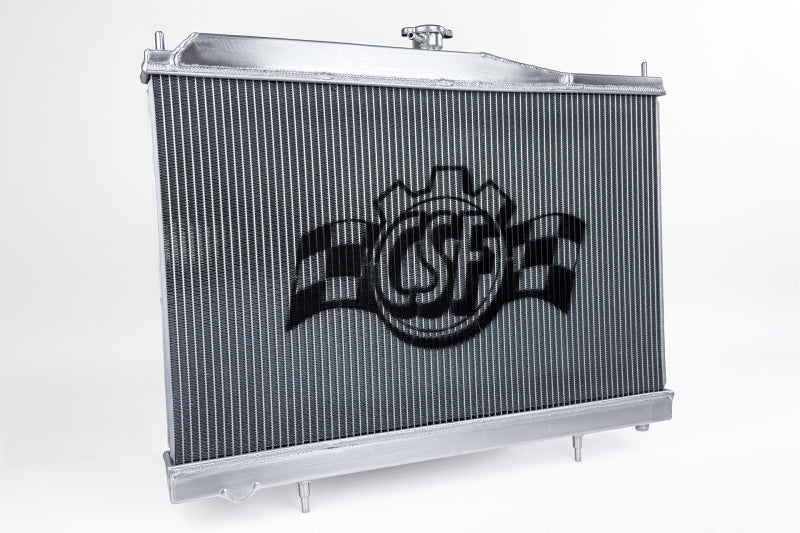

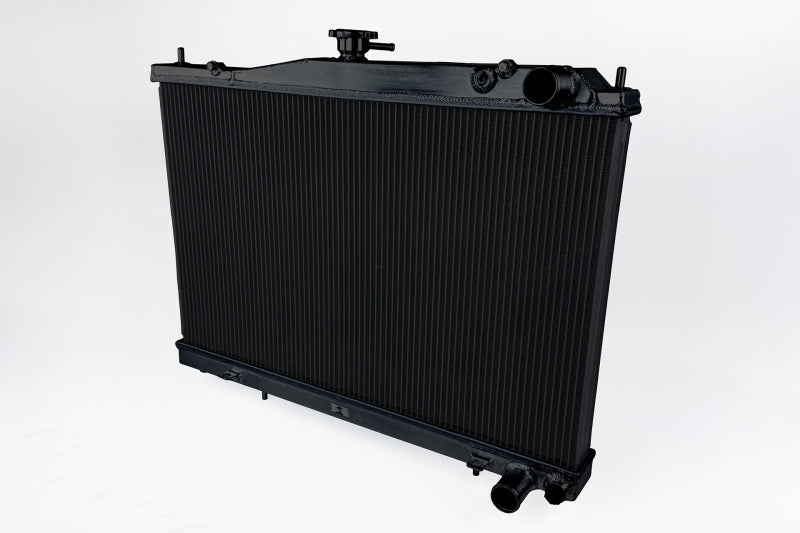

CSF [94-98 GT-R / GTS R33] High-Performance Radiator - Satin Black, 7230B

The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from. CSF manufactures the most advanced and efficient radiator in the industry for your R33 Skyline. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation. The CSF #7230B Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.

• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• M16 x 1.5P temperature sensor port with pre-installed plug
• 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
• 75 Cooling Tubes with CSF's Exclusive B-Tube Technology

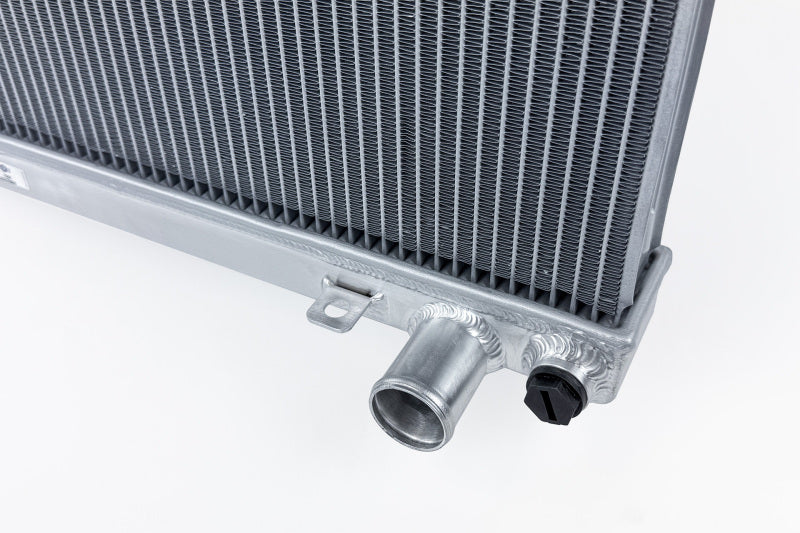

• CNC Machined Mounting Pins and OEM Style Inlet/Outlet
• 1/8th NPT Temp Sensor Port on Top End Tank
• 100% All Aluminum TIG-Welded Construction
• 2-Row - 42mm Ultra-High-Performance Core
• OE Location Fan Shroud Mounting Points
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
• Satin Black Finish

The CSF 7230B high-performance radiator is designed for 94-98 Nissan GT-R and GTS R33 models. Its 2-row, 42mm ultra-high-performance core increases coolant capacity and provides additional surface area for heat dissipation. The radiator is engineered as a direct drop-in replacement for the OEM location, with no modifications required unless otherwise noted by the manufacturer.

• Feature: 100% aluminum TIG-welded construction with a satin black finish
• Feature: Direct plug-and-play fit with OEM-style inlet, outlet, fan shroud mounting points, and CNC-machined mounting pins

CSF's exclusive B-Tube technology improves heat transfer by approximately 15% compared with standard oval welded tubes. The radiator uses 75 cooling tubes and ultra-efficient 6.5mm multi-louvered fins to maximize surface area and airflow through the core. The 2-row, 42mm design supports improved thermal efficiency by providing more cooling tubes and additional coolant-to-air contact area, making it well suited for performance-focused R33 applications.

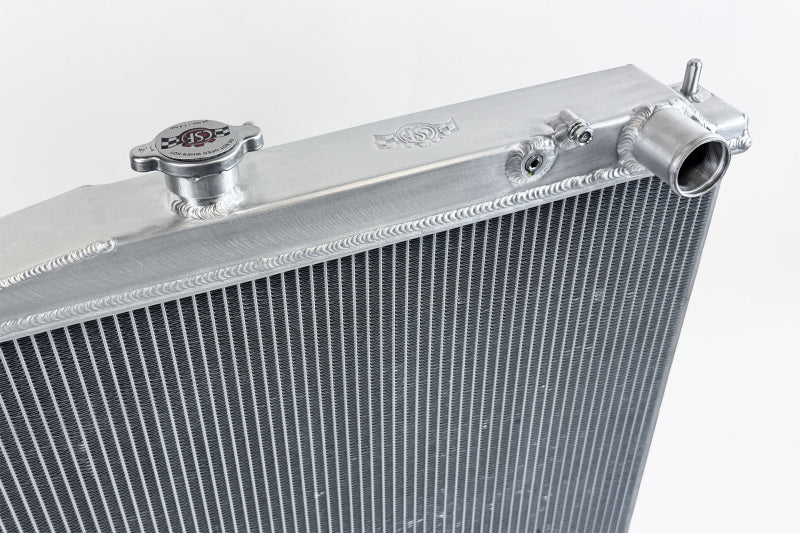

The CSF 7230B includes an M16 x 1.5P temperature sensor port with a pre-installed plug and a 1/8-inch NPT temperature sensor port on the top end tank. A 1.4-bar high-pressure radiator cap with an embossed CSF logo is included. Each radiator is individually leak and pressure tested before shipment and carries a 2-year limited warranty. Installation should follow the applicable manufacturer repair manual, and CSF recommends professional installation if you are not confident performing the work.

Features:

• 6.5mm ultra-efficient multi-louvered fins maximize surface area and airflow
• True plug-and-play drop-in installation requires no modifications
• M16 x 1.5P temperature sensor port with pre-installed plug
• 1.4-bar high-pressure radiator cap with embossed CSF logo
• 75 cooling tubes featuring CSF exclusive B-Tube technology
• CNC-machined mounting pins and OEM-style inlet and outlet
• 1/8-inch NPT temperature sensor port on the top end tank
• 100% aluminum TIG-welded construction
• 2-row, 42mm ultra-high-performance core
• OEM-location fan shroud mounting points
• Individually leak and pressure tested
• 2-year limited warranty
• Satin black finish
