COBB Tuning

COBB Tuning Be the first one to review

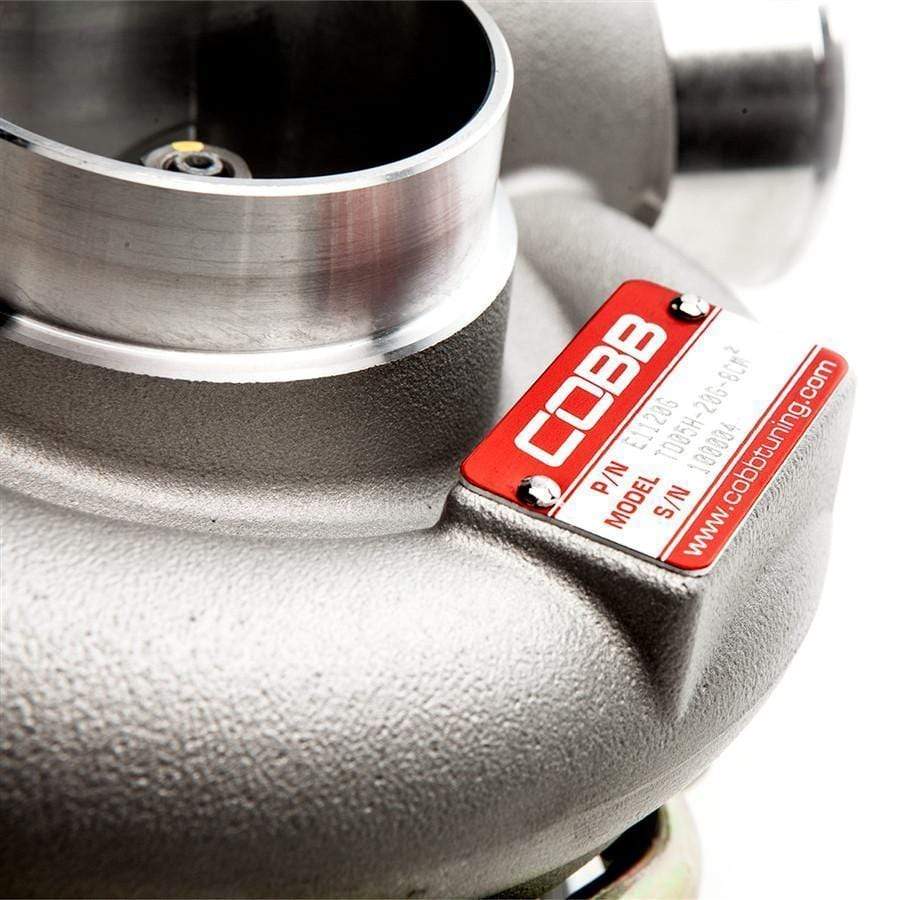

TD05H-20G-8 Turbocharger

Fits: 02-07 WRX, 04-21 STI

$1,47000
Earn $29.40 In JDMuscle Rewards!
30 in stock
Financing available starting $45.93 /month and as low as 0% APR.

Auto Parts Store of the Year 2026

COBB Tuning TD05H-20G-8 Turbocharger
Fits: 02-07 WRX, 04-21 STI
Be the first one to review

Estimated Shipping Widget will be displayed here!

Profile Avatar

Talk to an Enthusiast

Verify Fitment & Product Recommendations

M-F 8:30AM - 5:00PM

(866) 833-3536 Email

Fitment

Please Note: COBB confirmed applications include 2008-2014 Impreza WRX STI hatchback and sedan with manual transmission (USDM and ADM), 2015-2021 WRX STI sedan with manual transmission (USDM and ADM), 2018 WRX STI Type RA, and 2019 WRX STI S209. The catalog fitment for this product also includes 2002-2007 Subaru WRX; verify exact market, body style, and transmission requirements in the manufacturer application guide before ordering.
  • 2004–2021 Subaru | WRX STI
  • 2002–2007 Subaru | WRX

Description

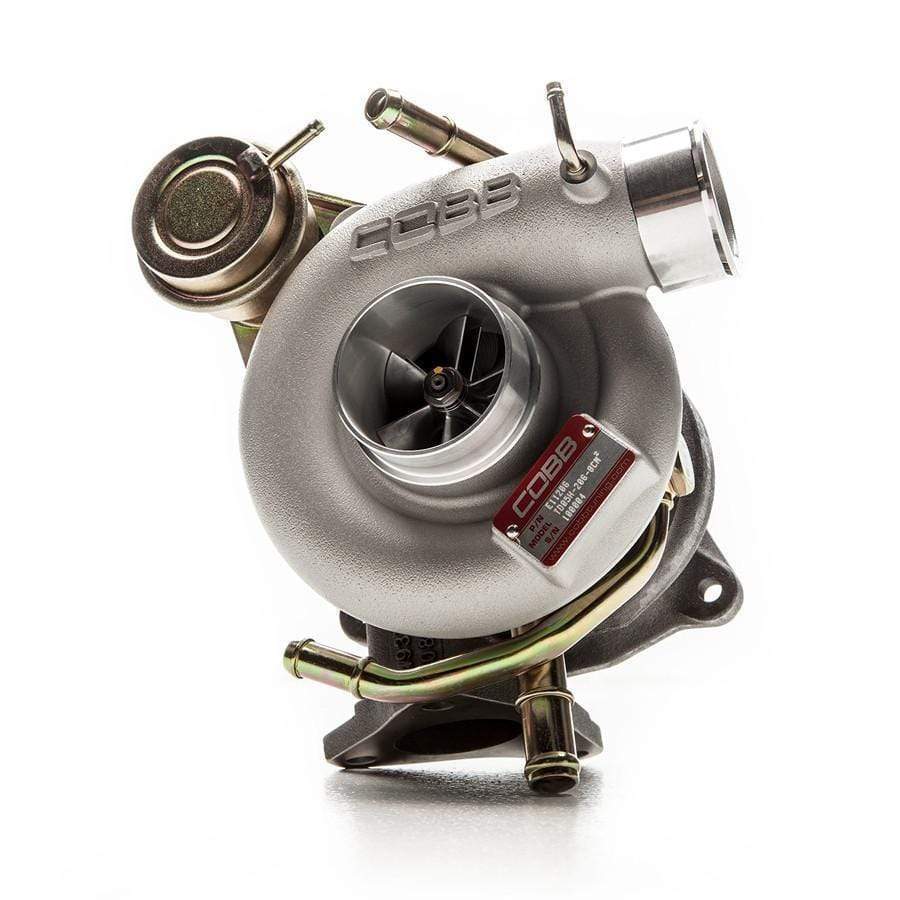

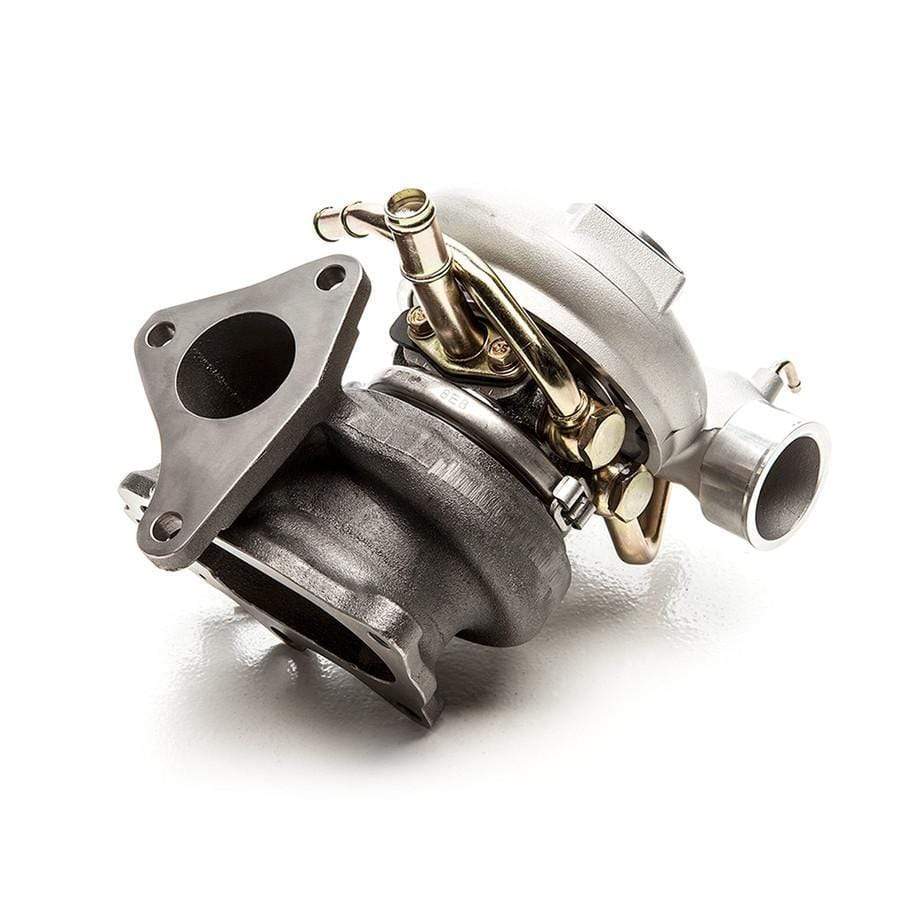

The Cobb Tuning TD05H-20G-8 Turbocharger is a responsive single-scroll upgrade designed to increase top-end power while maintaining strong low- and mid-range response for compatible Subaru WRX and STI applications.

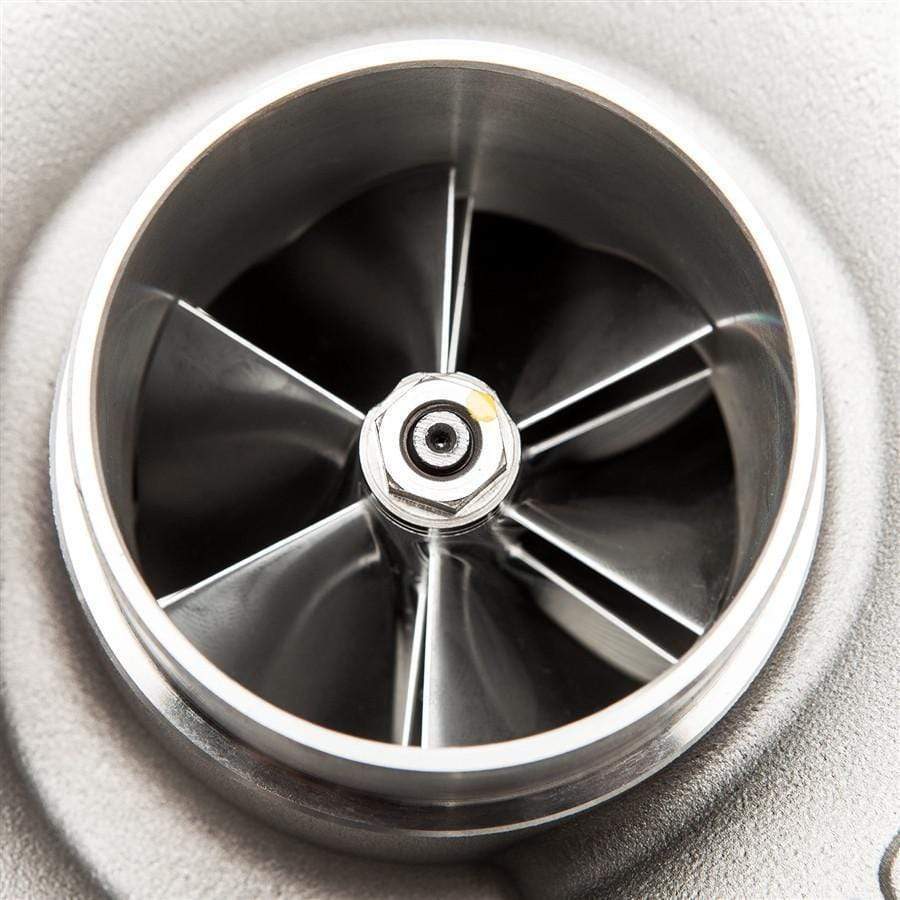

  • 20G compressor housing with 68 mm billet wheel

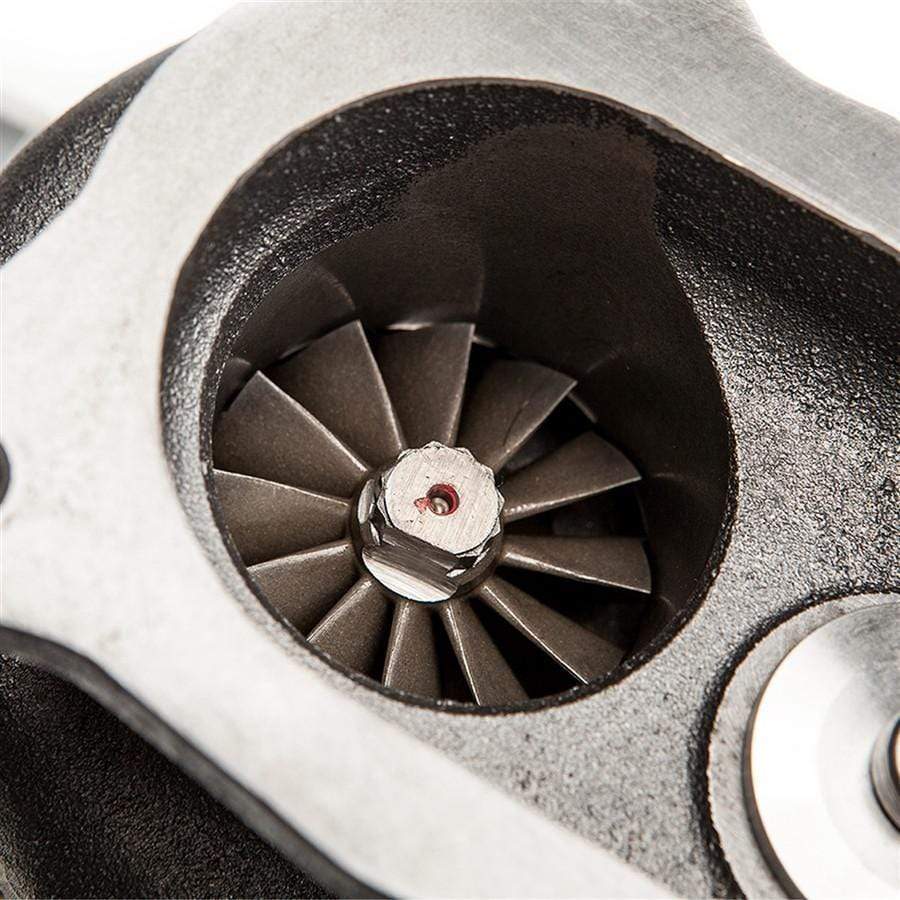

  • 8 cm² TD05H turbine housing with 55.8 mm wheel (TD05H)
  • Sleeve-bearing turbocharger with 360° thrust bearing and modified oiling strategy for greater thrust capacity

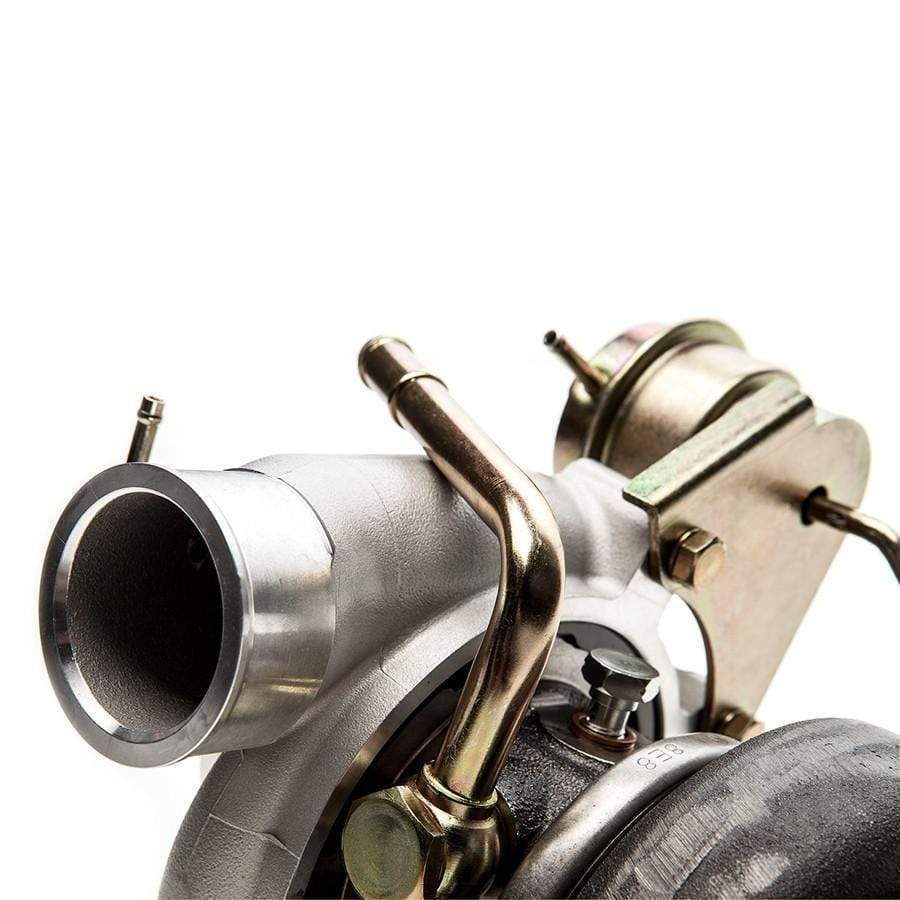

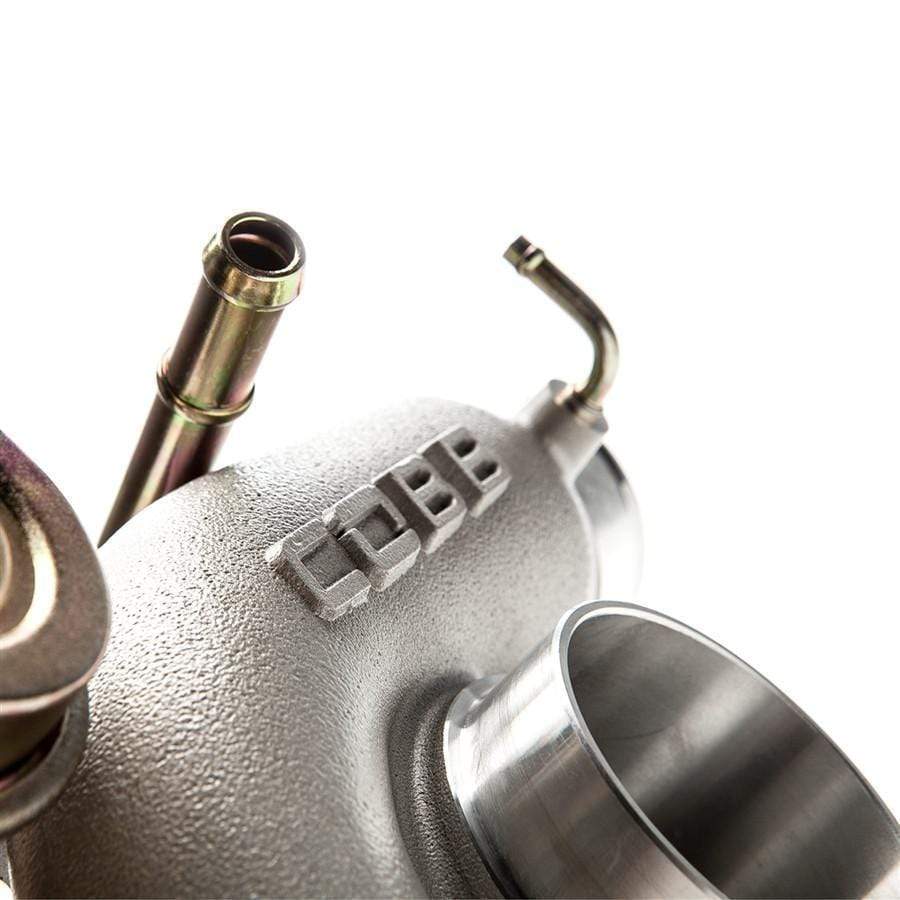

  • Offset compressor outlet provides additional clearance around the throttle-by-wire connector
  • Compressor: 52.5 mm inducer and 68 mm exducer
  • Turbine: 55.8 mm inducer and 49.2 mm exducer

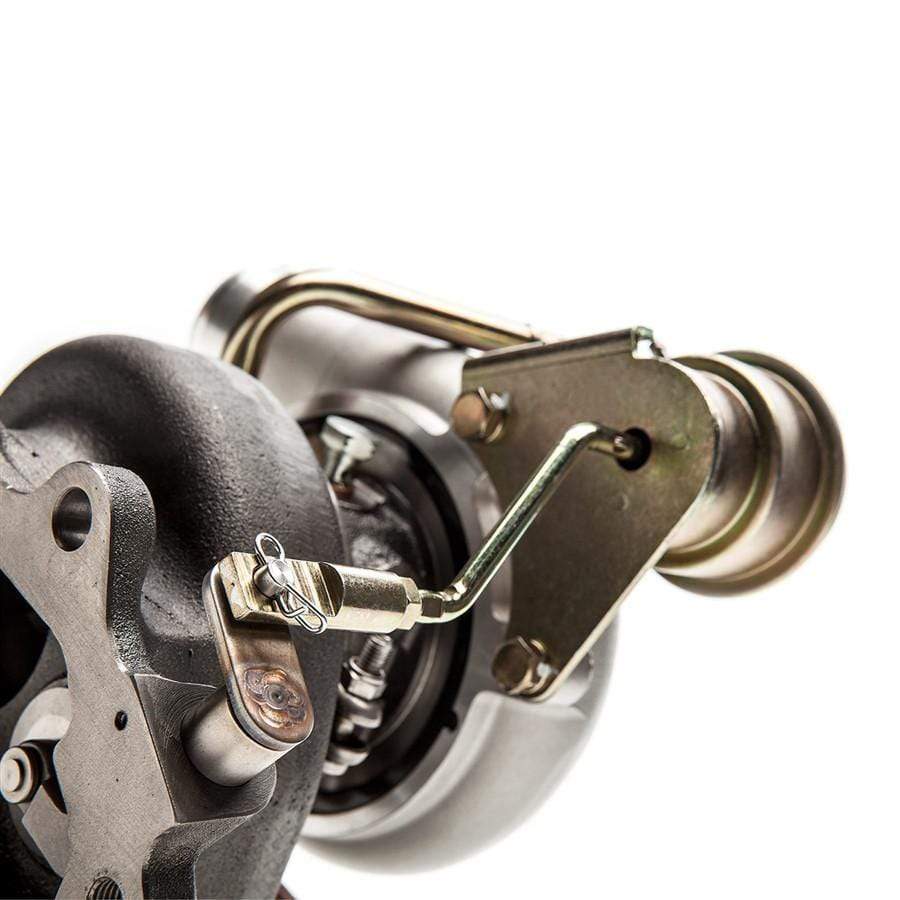

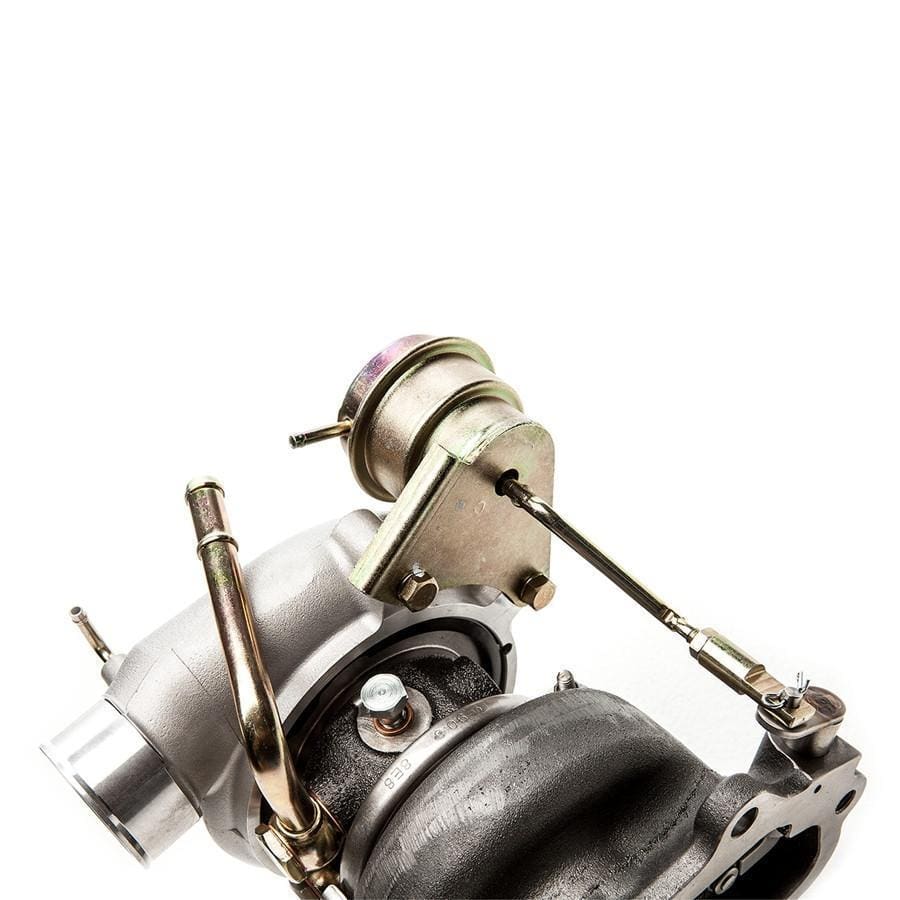

  • 640 CFM airflow, 0.57 A/R, and 1 Bar actuator
  • Official confirmed applications include 2008-2014 Impreza WRX STI hatchback and sedan manual-transmission applications, 2015-2021 WRX STI sedan manual-transmission applications, 2018 WRX STI Type RA, and 2019 WRX STI S209; catalog fitment also includes 2002-2007 WRX
  • Warranty: Cobb MFG Warranty
  • References: https://www.cobbtuning.com/products/turbo/cobb-subaru-20g-turbocharger
